Texas Instruments SN74AVC32T245NMJR

Part No.:: SN74AVC32T245NMJR

Manufacturer:: Texas Instruments

Package:: 96-LFBGA

Datasheet:

Description:: 32-BIT DUAL-SUPPLY BUS TRANSCEIV

In Stock:: 2094

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74AVC32T245NMJR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74AVC
ProductStatus:
Active
TranslatorType:
Voltage Level
ChannelType:
Bidirectional
NumberofCircuits:
4
ChannelsperCircuit:
8
Voltage-VCCA:
1.2 V ~ 3.6 V
Voltage-VCCB:
1.2 V ~ 3.6 V
InputSignal:
CMOS
OutputSignal:
-
OutputType:
Tri-State, Non-Inverted
DataRate:
380Mbps
OperatingTemperature:
-40°C ~ 85°C (TA)
Features:
-
MountingType:
Surface Mount

SN74AVC32T245NMJR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74AVC32T245NMJR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74AVC32T245NMJR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74AVC32T245NMJR information

Views：

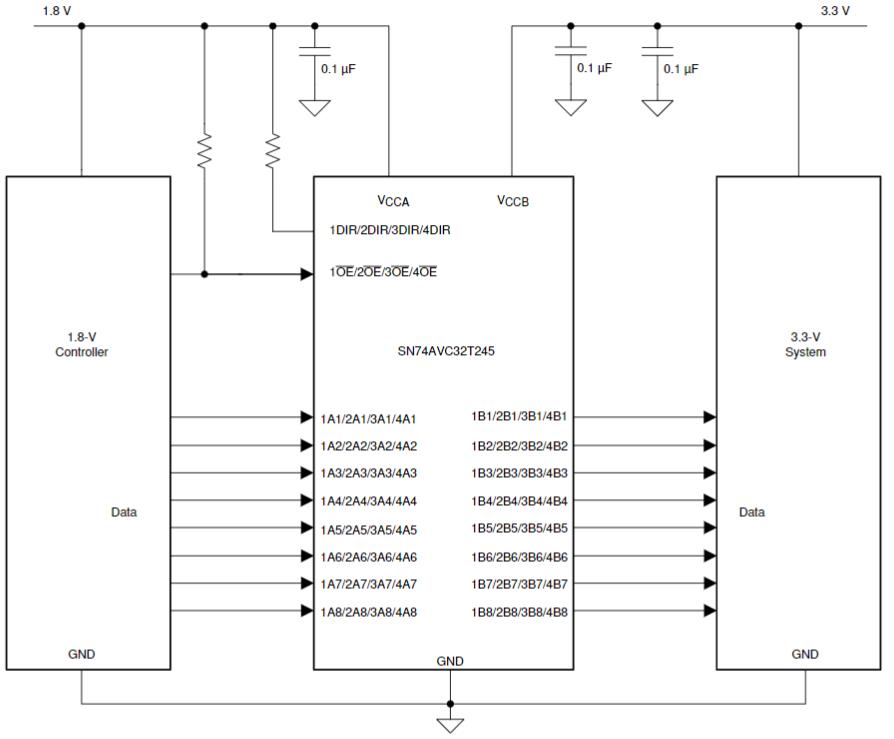

SN74AVC32T245NMJR Typical application Circuitry

SN74AVC32T245NMJR

The SN74AVC32T245NMJR is a dual-supply, 4-bit 1:1 noninverting bus transceiver from Texas Instruments. This device utilizes two separate configurable power-supply rails and is operational with VCCA and VCCB supplies from 1.2V to 3.6V.

When creating your circuit, remember the following essential factors:

1. Direction Control: The SN74AVC32T245NMJR direction of data flow is managed by the DIR pin. Ensure that your application provides the correct logic to this pin to control the data flow direction.

2. Voltage Levels: This SN74AVC32T245NMJR device supports level translation between different logic voltage levels. You need to ensure that VCCA is not greater than VCCB, as stated in the datasheet, to avoid potential damage.

3. Supply Decoupling: As with any digital IC, decoupling capacitors should be used between each supply pin and ground. The capacitors help to stabilize the power supply lines and reduce noise.

4. Enable Input: The SN74AVC32T245NMJR device has an active-high enable input (OE). When this input is high, the transceiver is active, and when low, the transceiver is in a high-impedance state. Consider your application's needs for controlling this pin.

5. Interfacing: Because of its flexibility in voltage levels and data flow direction, the SN74AVC32T245NMJR is often used for interfacing between different parts of a system. Ensure that you are knowledgeable of the appropriate data flow organization.

6. Protection Measures: Take into account over-voltage and under-voltage situations, as well as ESD (Electrostatic Discharge) protection for the device's pins. This is necessary to guarantee the durability of the apparatus.

7. Layout: PCB layout can have a big effect on the performance of a high-speed digital device like this. Good practices like keeping traces as short and direct as possible, and using ground planes, can help to prevent issues like crosstalk and electromagnetic interference.

8. Bus Hold Circuitry: This SN74AVC32T245NMJR device's integrated bus hold circuitry avoids the requirement for extra pull-up or pull-down resistors.

9. Power Sequencing: Unlike some devices, this transceiver does not require a specific power-on sequence, which simplifies the design process.

10. Operating Conditions: Keep in mind the recommended operating conditions mentioned in the datasheet, such as temperature and supply voltage.

Each application is unique, so these guidelines might not all apply in every case. Always refer to the datasheet and feel free to reach out to the manufacturer's technical support if you have specific questions or doubts.
