Texas Instruments SN74AVC2T45DCURE4

Part No.:: SN74AVC2T45DCURE4

Manufacturer:: Texas Instruments

Package:: 8-VFSOP (0.091, 2.30mm Width)

Datasheet:: SN74AVC2T45DCURE4.pdf

Description:: IC TRNSLTR BIDIRECTIONAL US8

In Stock:: 3649

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74AVC2T45DCURE4 Specifications

Packaging:
Tape & Reel (TR)
Series:
74AVC
ProductStatus:
Discontinued at Mosen
TranslatorType:
Voltage Level
ChannelType:
Bidirectional
NumberofCircuits:
1
ChannelsperCircuit:
2
Voltage-VCCA:
1.2 V ~ 3.6 V
Voltage-VCCB:
1.2 V ~ 3.6 V
InputSignal:
-
OutputSignal:
-
OutputType:
Tri-State, Non-Inverted
DataRate:
500Mbps
OperatingTemperature:
-40°C ~ 85°C (TA)
Features:
-
MountingType:
Surface Mount

SN74AVC2T45DCURE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74AVC2T45DCURE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74AVC2T45DCURE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74AVC2T45DCURE4 information

Views：

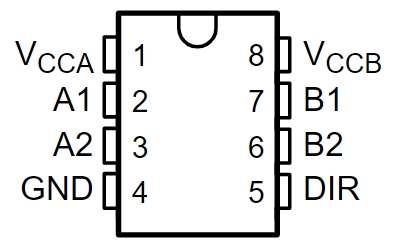

SN74AVC2T45DCURE4 Typical application Circuitry

SN74AVC2T45DCURE4

SN74AVC2T45DCURE4 is an integrated circuit designed for bidirectional voltage level translation.

Application Scenarios

A typical application for the SN74AVC2T45DCURE4 is in a system where a 3.3V microcontroller needs to interface with 1.8V sensors or memory devices.

Parameter Features

- Versatile Voltage Range: Supports a range from 1.65V to 3.6V, catering to various device requirements.

- Bidirectional Signal Conversion: Allows signals to be translated in both directions, from high to low voltage and vice versa.

- Efficient Power Consumption: Exhibits low quiescent current, minimizing power wastage.

Circuit Connection Method

Consider a scenario where the SN74AVC2T45DCURE4 is used to connect a 3.3V microcontroller to a 1.8V Flash memory.

Power Supply Connections

- VCCA Pin: This should be connected to the 3.3V supply from the microcontroller.

- VCCB Pin: Attach this to the 1.8V supply intended for the Flash memory.

Signal Line Connections

- A1, A2 Pins: These should be linked to the corresponding I/O pins on the microcontroller.

- B1, B2 Pins: Connect these to the I/O pins on the Flash memory.

Grounding Strategy

- Ground (GND) Pin: Must be connected to the common ground of the system to ensure signal integrity.

Direction Control

- Direction (DIR) Pin: Control this pin from the microcontroller to set the direction of signal flow.

Design Considerations

1. Correct Voltage Matching: It's crucial to ensure that the voltages at VCCA and VCCB are compatible with the connected devices to avoid damaging the SN74AVC2T45DCURE4.

2. Signal Propagation Delay: Be aware of the time it takes for signals to pass through the chip, as it can affect timing in critical applications.

3. Heat Dissipation: Despite the low power consumption of the SN74AVC2T45DCURE4, effective heat management is essential in design.

4. PCB Layout: Proper layout is vital for maintaining signal integrity, particularly in high-speed applications.

Incorporating these considerations, the SN74AVC2T45DCURE4 can be effectively used in a variety of applications requiring reliable voltage level translation between different components.
