Texas Instruments SN74ALVC125PWRG4

Part No.:: SN74ALVC125PWRG4

Manufacturer:: Texas Instruments

Package:: 14-TSSOP (0.173, 4.40mm Width)

Datasheet:: SN74ALVC125PWRG4.pdf

Description:: IC BUF NON-INVERT 3.6V 14TSSOP

In Stock:: 2259

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74ALVC125PWRG4 Specifications

Package/Case:
14-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR)
Series:
74ALVC
ProductStatus:
Discontinued at Mosen
LogicType:
Buffer, Non-Inverting
NumberofElements:
4
NumberofBitsperElement:
1
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
24mA, 24mA
Voltage-Supply:
1.65V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

SN74ALVC125PWRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74ALVC125PWRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74ALVC125PWRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74ALVC125PWRG4 information

Views：

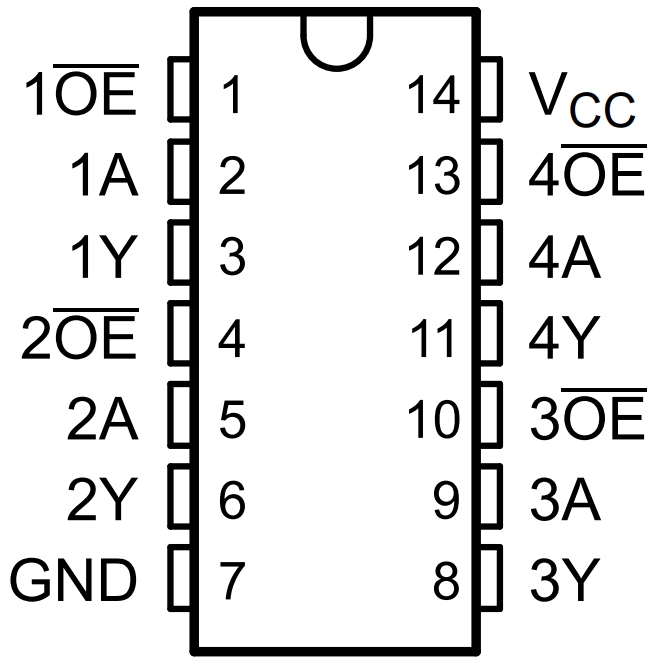

SN74ALVC125PWRG4 Typical application Circuitry

SN74ALVC125PWRG4

The SN74ALVC125PWRG4 is a quadruple bus buffer gate with independent line drivers and 3-state outputs. Each output is individually controlled by an associated output-enable (OE) input, which, when high, places the output in a high-impedance state.

Applications:

This chip is typically used in scenarios where signal buffering and line driving are required.

Typical uses are as follows:

- Data Communication: For sending information over extended distances or in noisy areas.

- Bus Extension: To extend the reach of a bus without degrading signal integrity.

- Interfacing: Bridging between different voltage domains or logic families.

Key Specifications:

- Voltage Range: Typically operates at 2.3V to 3.6V.

- Low Power Consumption: Perfect for gadgets that run on batteries.

Fast data transmission is ensured by high-speed operation.

Data transmission is one example of an application.

In a data transmission application, the SN74ALVC125PWRG4 can be used to buffer and strengthen signals.

1. Pin Connection: Connect the data input to one of the data input pins (A1, A2, A3, A4).

2. Output Enable: The OE pin (OE1, OE2, OE3, OE4) for the corresponding buffer must be connected to a control signal. The buffer is active when OE is low.

3. Power Supply: Within the given voltage range, Vcc needs to be linked to an appropriate power supply.

4. Grounding: The GND pin must be properly grounded.

5. Output Connection: The output (Y1, Y2, Y3, Y4) should be connected to the receiving end of the data transmission line.

Design Considerations:

The buffer is active when OE is low.

Power Supply: Within the given voltage range, Vcc needs to be linked to an appropriate power supply.

- Signal Integrity: Minimize noise and interference in signal lines.

- Thermal Management: Although the chip is low power, appropriate thermal management is still necessary in dense circuit designs.

In summary, the SN74ALVC125PWRG4 is a versatile chip suited for applications requiring buffering and signal integrity, such as data communication and bus extension. Its low power consumption and high-speed operation make it a practical choice for various electronic designs. When incorporating this chip into a circuit, careful consideration of power supply, signal integrity, and thermal management is essential to ensure optimal performance.
