Texas Instruments SN74AHC1G32DBVRG4

Part No.:: SN74AHC1G32DBVRG4

Manufacturer:: Texas Instruments

Package:: SOT-23-5

Datasheet:: SN74AHC1G32DBVRG4.pdf

Description:: IC GATE OR 1CH 2-INP SOT23-5

In Stock:: 3014

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74AHC1G32DBVRG4 Specifications

Packaging:
Tape & Reel (TR)
Series:
74AHC
ProductStatus:
Discontinued at Mosen
LogicType:
OR Gate
NumberofCircuits:
1
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 5.5V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
8mA, 8mA
LogicLevel-Low:
0.5V ~ 1.65V
LogicLevel-High:
1.5V ~ 3.85V
MaxPropagationDelay@VMaxCL:
7.5ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74AHC1G32DBVRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74AHC1G32DBVRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74AHC1G32DBVRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74AHC1G32DBVRG4 information

Views：

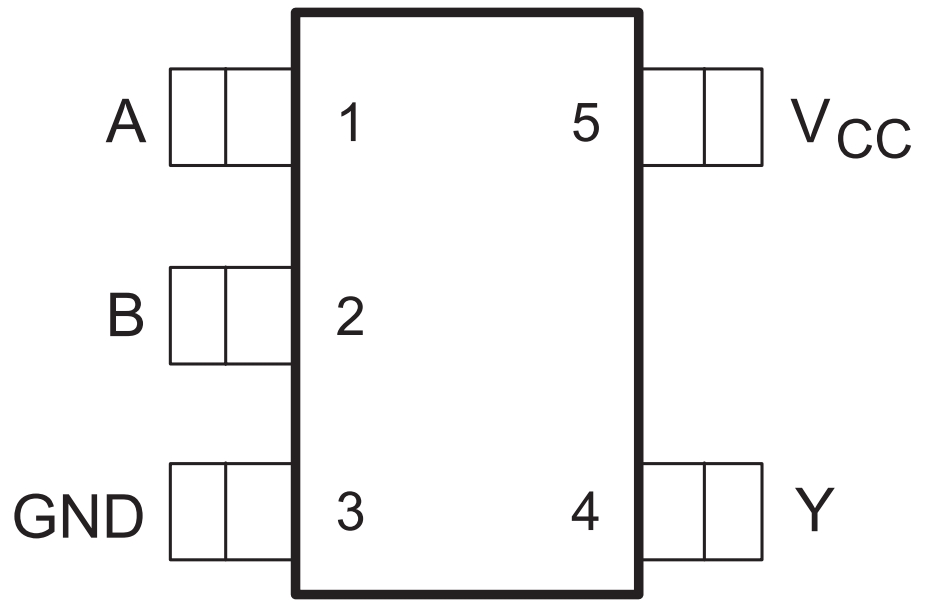

SN74AHC1G32DBVRG4 Typical application Circuitry

SN74AHC1G32DBVRG4

The SN74AHC1G32DBVRG4 is a specific model of an integrated circuit (IC), which functions as a single 2-input positive-OR gate. This chip is part of the SN74AHC series, known for their versatility in various digital logic applications. A detailed analysis of its characteristics, possible applications, parameter attributes, an illustration of a specific circuit connection, and design considerations are provided below.

1. Functionality: The SN74AHC1G32DBVRG4 is designed to perform the logical OR operation. This means that it will produce a high level if either of its two inputs is high.

2. Application Scenarios: This chip is commonly used in digital systems where logical decision-making processes are required, such as in computing systems, signal processing, and control systems.

3. Parameter Characteristics: The SN74AHC1G32DBVRG4 typically operates at a voltage range of 2 V to 5.5 V, making it suitable for low-power applications.Additionally, it has quick switching speeds, which are essential for digital circuits with high speeds.

4. Circuit Connection Example:

- Power Supply Pins: Connect VCC (pin 5) to a 5V power supply and GND (pin 1) to ground.

- Input Pins: Connect the two inputs, A (pin 2) and B (pin 3), to the signals you wish to OR together.

- Output Pin: The output, Y (pin 4), will provide the OR result of inputs A and B.

- Programming Pins: In this model, there are no specific programming pins as it's a simple logic gate.

5. Design Considerations: When designing a circuit with the SN74AHC1G32DBVRG4, ensure that the input voltage levels are compatible with the chip's operating range. Also, consider the power dissipation and signal integrity, especially in high-speed applications.

In summary, the SN74AHC1G32DBVRG4 is a versatile and efficient OR gate useful in various digital logic applications. Its low power consumption and fast switching capabilities make it an ideal choice for many electronic designs. When integrating this chip into a circuit, careful consideration of voltage levels and signal integrity is essential.
