Texas Instruments SN74AHC1G125DCKR

Part No.:: SN74AHC1G125DCKR

Manufacturer:: Texas Instruments

Package:: 5-TSSOP, SC-70-5, SOT-353

Datasheet:: SN74AHC1G125DCKR.pdf

Description:: IC BUF NON-INVERT 5.5V SC70-5

In Stock:: 3892

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74AHC1G125DCKR Specifications

Package/Case:
5-TSSOP, SC-70-5, SOT-353
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74AHC
ProductStatus:
Active
LogicType:
Buffer, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
1
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
8mA, 8mA
Voltage-Supply:
2V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C (TA)
MountingType:
Surface Mount

SN74AHC1G125DCKR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74AHC1G125DCKR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74AHC1G125DCKR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74AHC1G125DCKR information

Views：

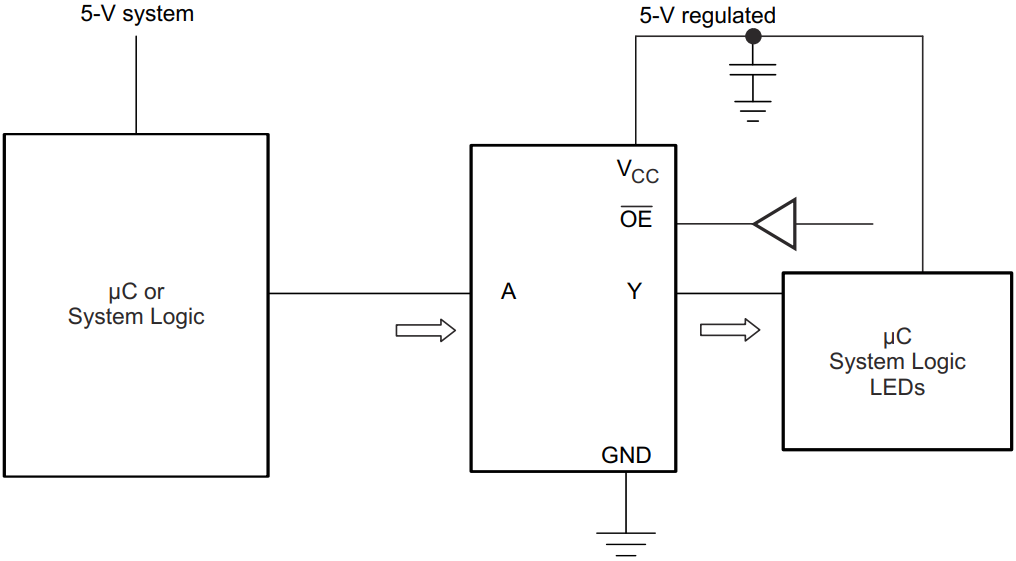

SN74AHC1G125DCKR Typical application Circuitry

SN74AHC1G125DCKR

The SN74AHC1G125DCKR is an integrated circuit belonging to the SN74AHC series, renowned for its high-speed CMOS technology. This specific model is a single buffer gate with a 3-state output, designed by Texas Instruments. It is widely used in digital systems for isolating and buffering signals, and its 3-state output makes it particularly useful in bus-oriented applications where multiple outputs need to connect to a common bus line without interference.

1. Power Supply Connections: Central to the operation of the SN74AHC1G125DCKR is its power supply. The VCC pin must be connected to a positive power supply within the range of 2 V to 5.5 V. This range allows for flexible integration into various digital systems with different logic levels. To give the circuit a reference point, the ground pin (GND) has to be linked to the system ground.

2. Input and Output Configuration: The SN74AHC1G125DCKR has a single data input (A), a single data output (Y), and an output enable (OE) pin. The data input (A) receives the digital signal that needs to be buffered. The state of the OE pin controls the output: when OE is low, the output (Y) is active and reflects the state of the input; when OE is high, the output is disabled and enters a high-impedance state, effectively disconnecting it from the circuit.

3. Integration into Circuit Designs: When incorporating the SN74AHC1G125DCKR into a circuit, careful attention must be paid to the layout. In order to reduce noise and provide a steady power supply, the traces connecting to the VCC and GND should be constructed. Additionally, the input and output pins should be laid out to minimize the length of the traces, thereby reducing potential signal degradation and electromagnetic interference.

4. Signal Integrity and Protection Considerations: Ensuring the integrity of the signals passing through the SN74AHC1G125DCKR is crucial. This involves not only proper circuit layout but also considering the use of pull-up or pull-down resistors at the input to maintain a defined logic level when no input signal is present. Furthermore, incorporating protection against electrostatic discharge (ESD) is important to prevent damage to the chip during handling and operation.

In conclusion, the SN74AHC1G125DCKR is a highly versatile component suitable for a range of digital applications requiring signal buffering and isolation, especially in bus-oriented systems. Proper power supply connection, careful handling of input and output configuration, strategic PCB design, and attention to signal integrity and protective measures are essential for leveraging the full potential of the SN74AHC1G125DCKR in electronic designs.
