Texas Instruments SN74AHC1G08DBVR

Part No.:: SN74AHC1G08DBVR

Manufacturer:: Texas Instruments

Package:: SOT-23-5

Datasheet:: SN74AHC1G08DBVR.pdf

Description:: IC GATE AND 1CH 2-INP SOT23-5

In Stock:: 3529

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74AHC1G08DBVR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74AHC
ProductStatus:
Active
LogicType:
AND Gate
NumberofCircuits:
1
NumberofInputs:
2
Features:
-
Voltage-Supply:
2V ~ 5.5V
Current-Quiescent(Max):
1 µA
Current-OutputHighLow:
8mA, 8mA
LogicLevel-Low:
0.5V ~ 1.65V
LogicLevel-High:
1.5V ~ 3.85V
MaxPropagationDelay@VMaxCL:
7.9ns @ 5V, 50pF
OperatingTemperature:
-55°C ~ 125°C
MountingType:
Surface Mount

SN74AHC1G08DBVR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74AHC1G08DBVR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74AHC1G08DBVR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74AHC1G08DBVR information

Views：

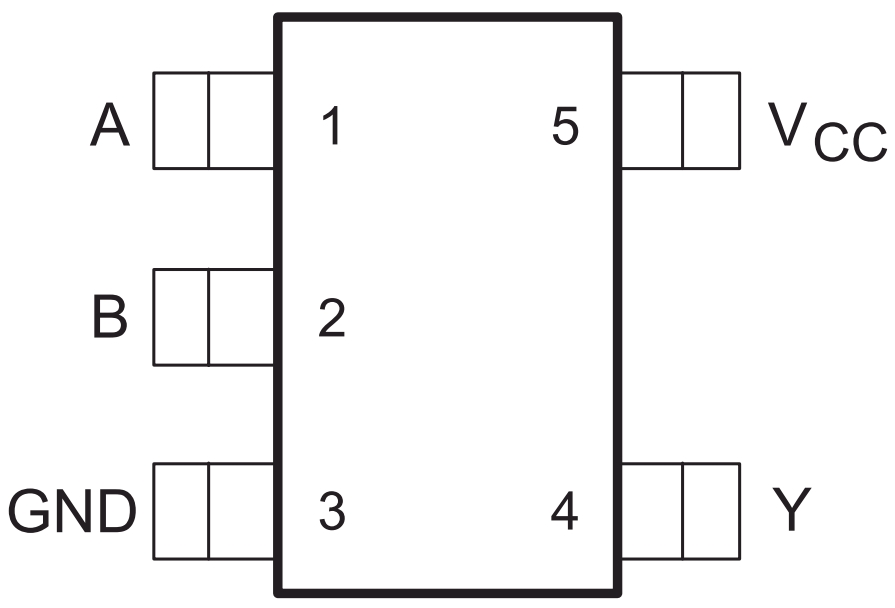

SN74AHC1G08DBVR Typical application Circuitry

SN74AHC1G08DBVR

An integrated circuit (IC) with particular functions and uses is the SN74AHC1G08DBVR. Let's examine its functions, uses, and a thorough illustration of how it is used in a particular circuit.

Features of Single 2-Input Positive-AND Gate SN74AHC1G08DBVR: The SN74AHC1G08DBVR is a single 2-input positive-AND gate.

This means it performs the logical AND operation, which outputs a high level only when both inputs are high.

Application Scenarios:

Signal Processing in Digital Systems: Commonly used in digital systems for signal processing, this IC can be instrumental in implementing logical operations within digital circuits.

Control Systems and Computing Devices: It finds applications in control systems and computing devices, where logical decisions based on multiple inputs are required.

Parameters and Features:

High-Speed Operation: It operates at high speed, which is crucial for modern digital electronics that require quick signal processing.

Low Power Consumption: The integrated circuit is suitable for battery-operated applications due to its low power consumption design.

Specific Circuit Connection (Application Example):

Application: Building a Simple Security System

1. Input Connection: Connect switches or sensors to inputs A and B (pins 1 and 2) of the SN74AHC1G08DBVR. These inputs will represent the conditions to be monitored (e.g., door sensor and window sensor).

2. Output to Indicator: Connect the output (pin 5) to an indicator like an LED or a buzzer. This output will activate only when both inputs are high (indicating a breach in both door and window).

3. Power Supply: Connect VCC (pin 5) to a +5V supply and GND (pin 4) to the ground. The IC operates in this voltage range efficiently.

4. Programming Pins (Not Applicable): For the SN74AHC1G08DBVR, programming or burning pins are not applicable as it is not a programmable IC but a logic gate.

Design Considerations:

When designing circuits with the SN74AHC1G08DBVR, consider the following:

- Voltage Levels: Verify that the input voltage levels meet the requirements of the integrated circuit.

- Input Impedance: Consider the impedance of the input sources to avoid loading effects.

- Power Supply Stability: Ensure a stable power supply to prevent erratic operation.

In summary, the SN74AHC1G08DBVR is a versatile IC used in various digital circuits for implementing logical operations. Its high-speed operation, low power consumption, and ease of use make it ideal for applications in signal processing, control systems, and computing devices. It is crucial to carefully consider voltage levels, input impedance, and power supply stability when building circuits employing this integrated circuit.
