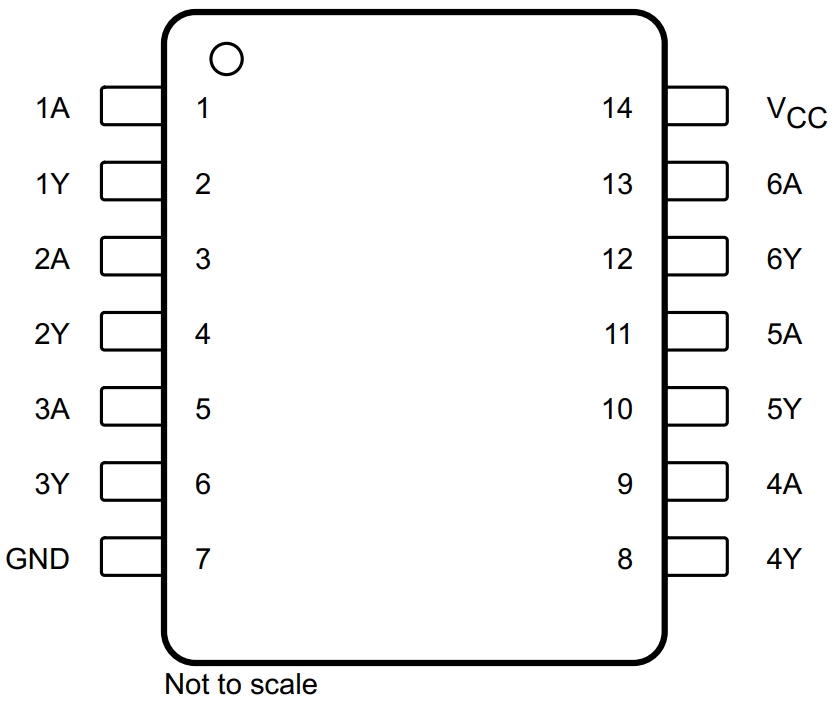

Texas Instruments SN74AHC14PWRG4

Part No.:: SN74AHC14PWRG4

Manufacturer:: Texas Instruments

Package:: 14-TSSOP

Datasheet:: SN74AHC14PWRG4.pdf

Description:: IC INVERTER 6CH 1-INP 14TSSOP

In Stock:: 2124

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74AHC14PWRG4 Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
74AHC
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
8mA, 8mA
LogicLevel-Low:
0.9V ~ 1.65V
LogicLevel-High:
2.2V ~ 3.85V
MaxPropagationDelay@VMaxCL:
10.6ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74AHC14PWRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74AHC14PWRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74AHC14PWRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74AHC14PWRG4 information

Views：

SN74AHC14PWRG4 Typical application Circuitry

SN74AHC14PWRG4

The SN74AHC14PWRG4 is a hex schmitt-trigger inverter chip, commonly used in digital and mixed-signal environments. Here's a detailed exploration of its features, applications, and a specific circuit example.

Functionality and Features:

- Hex Schmitt-Trigger Inverters: The SN74AHC14PWRG4 contains six independent Schmitt-trigger inverters. These inverters are designed to transform noisy or slow input signals into clean, sharp digital output signals.

- Advanced High-Speed CMOS Technology: It is built using advanced high-speed CMOS technology, ensuring low power consumption and high speed.

- Wide Operating Voltage Range: This chip operates over a wide voltage range, typically 2V to 5.5V, accommodating various power supply scenarios.

Application Scenarios:

- Debouncing Switches: Commonly used in debouncing mechanical switches or push-buttons in user interfaces, preventing multiple triggerings due to mechanical vibrations.

- Waveform Shaping: It is ideal for shaping waveforms, converting analog signals into digital signals.

- Oscillator Circuits: Can be used in creating oscillator circuits for generating clock pulses.

Parameter Characteristics:

- Supply Voltage (Vcc): 2V to 5.5V.

- High Noise Immunity: Exhibits excellent noise immunity due to Schmitt-trigger action.

- Low Power Consumption: It's designed for low power consumption, making it suitable for battery-powered applications.

Circuit Example: Debouncing a Mechanical Switch

Overview: Using SN74AHC14PWRG4 to debounce a mechanical switch in a digital input circuit.

1. Input Connection: Connect the mechanical switch between a pull-up resistor (to Vcc) and the input of one inverter (e.g., pin 1).

2. Output Utilization: Connect the output of this inverter (e.g., pin 2) to the digital input of a microcontroller or other digital systems.

3. Vcc and Ground: Connect Vcc (e.g., pin 14) to a 5V supply, and ground (e.g., pin 7) to the system ground.

4. Decoupling Capacitor: Place a 0.1uF capacitor close to the Vcc pin to filter out noise.

5. Programming Pins (If Applicable): If the output is interfacing with a programmable device, ensure that the programming pins are correctly configured according to the device's specifications.

Design Considerations:

- Power Supply Stability: Ensure a stable power supply to prevent erratic behavior.

- Input Signal Quality: The quality of the input signal should be considered, as the Schmitt-trigger action depends on the input threshold levels.

- Decoupling Capacitors: To avoid noise in the circuit, use decoupling capacitors near the power supply pins.

In designing circuits with the SN74AHC14PWRG4, careful consideration of the input signals, power supply quality, and noise filtration is crucial for optimal performance.
