What is the Additional Feature ?

Name: SN74AHC14PWRE4
Brand: Texas Instruments
SKU: SN74AHC14PWRE4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74AHC14PWRE4

Part No.:: SN74AHC14PWRE4

Manufacturer:: Texas Instruments

Package:: 14-TSSOP

Datasheet:: SN74AHC14PWRE4.pdf

Description:: IC INVERTER 6CH 1-INP 14TSSOP

In Stock:: 3032

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74AHC14PWRE4 Specifications

Packaging:
Tape & Reel (TR)
Series:
74AHC
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
8mA, 8mA
LogicLevel-Low:
0.9V ~ 1.65V
LogicLevel-High:
2.2V ~ 3.85V
MaxPropagationDelay@VMaxCL:
10.6ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74AHC14PWRE4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74AHC14PWRE4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74AHC14PWRE4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74AHC14PWRE4 information

Views：

SN74AHC14PWRE4 Typical application Circuitry

Hex schmitt-trigger inverters are the kind of integrated circuit that goes by the name SN74AHC14PWRE4. This chip is used in various electronic applications due to its functionality and specific features. Let's explore its functions, applications, key parameters, and an example circuit connection in detail.

Functionality:

The SN74AHC14PWRE4 is designed to perform the inverting Schmitt trigger function. This means it converts an analog or digital signal into a square wave form, often used in digital circuits to ensure a clean transition from a low to a high state and vice versa.

Application Scenarios:

1. Signal Conditioning: It's commonly used for signal conditioning, transforming noisy input signals into clean, digital outputs.

2. Debouncing Switches: Ideal for debouncing mechanical switches, ensuring that only a single transition is registered.

3. Oscillators: Can be used in oscillator circuits for generating clock signals.

4. Waveform Generation: Useful in generating various waveform types in electronic signal processing.

Parameter Features:

- Voltage Range: Generally operates between 2 and 5.5 volts, but can run at a much wider range.

- Fast Switching: Offers rapid switching capabilities.

- Low Power Consumption: Because of its low power consumption design, it is suitable for battery-powered devices.

Example Circuit Connection:

Application: Debouncing a Mechanical Switch

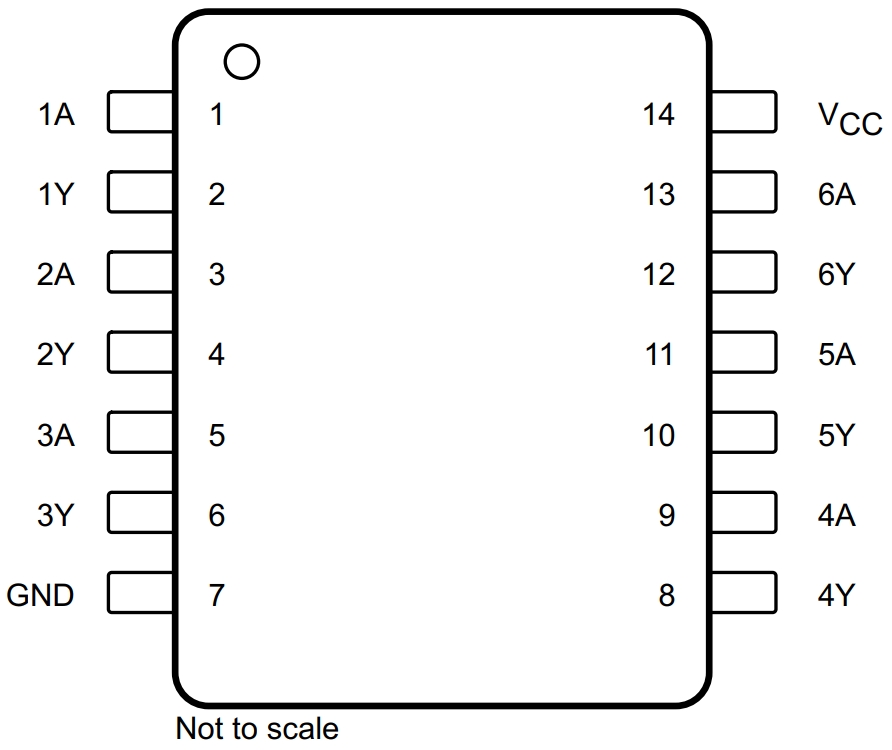

1. Connection to VCC: Connect pin 14 (VCC) of the SN74AHC14PWRE4 to a 5V power source.

2. Grounding: GND, or pin 7, needs to be attached to the earth.

3. Input Signal: Connect a mechanical switch between pin 1 (input of the first inverter) and ground. This will serve as the input signal.

4. Output: The output can be taken from pin 2, which is the output of the first inverter.

5. Decoupling Capacitor: Place a 0.1 μF capacitor between VCC and GND close to the chip to stabilize the power supply.

6. Pull-up Resistor: Use a 10kΩ pull-up resistor between pin 1 and VCC to ensure a defined logic level when the switch is open.

Design Considerations:

- Power Supply Stability: Ensure a stable power supply to avoid erratic behavior.

- Input Signal Quality: Clean and condition input signals to avoid false triggering.

- Temperature and Environmental Factors: Consider temperature variations and environmental conditions as they can affect the chip's performance.

- Interference: Be aware of potential interference from nearby electronic devices or circuits.

In conclusion, the SN74AHC14PWRE4 is a versatile chip suitable for various applications requiring signal conditioning, switching, and waveform generation. Its low power consumption and wide voltage range make it ideal for numerous electronic designs. When designing circuits with this chip, factors such as power supply stability, signal quality, and environmental conditions should be carefully considered.
