Texas Instruments SN74AHC14DRG4

Part No.:: SN74AHC14DRG4

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: SN74AHC14DRG4.pdf

Description:: IC INV SCHMITT 6CH 1-IN 14SOIC

In Stock:: 3649

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74AHC14DRG4 Specifications

Packaging:
Tape & Reel (TR),Bulk
Series:
74AHC
ProductStatus:
Discontinued at Mosen
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
8mA, 8mA
LogicLevel-Low:
0.9V ~ 1.65V
LogicLevel-High:
2.2V ~ 3.85V
MaxPropagationDelay@VMaxCL:
10.6ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74AHC14DRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74AHC14DRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74AHC14DRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74AHC14DRG4 information

Views：

SN74AHC14DRG4 Typical application Circuitry

SN74AHC14DRG4

The SN74AHC14DRG4 is a type of integrated circuit known as a Hex Schmitt-Trigger Inverter. This device features six independent inverters with Schmitt-Trigger inputs, making it suitable for a wide range of applications. Let's examine its features, uses, important characteristics, and a thorough illustration of how it was applied in a particular circuit design.

Functionality:

- Hex Schmitt-Trigger Inverter: The SN74AHC14DRG4 consists of six inverters, each with a Schmitt-Trigger input. This design enhances noise immunity and transforms an irregular input waveform into a square wave, making it ideal for signal conditioning.

Application Scenarios:

- Debouncing Switches: Commonly used in digital systems to clean up the signal from a mechanical switch, preventing multiple transitions when the switch is toggled.

- Waveform Generation: Can be used in oscillators or pulse generators due to its ability to square up input waveforms.

- Signal Conditioning: Useful in conditioning noisy signals for digital circuits.

Parameter Features:

- Supply Voltage Range: Typically operates between 2V and 5.5V.

- Output Current: Capable of driving outputs with considerable current.

- Propagation Delay: Features fast propagation delays, suitable for high-speed applications.

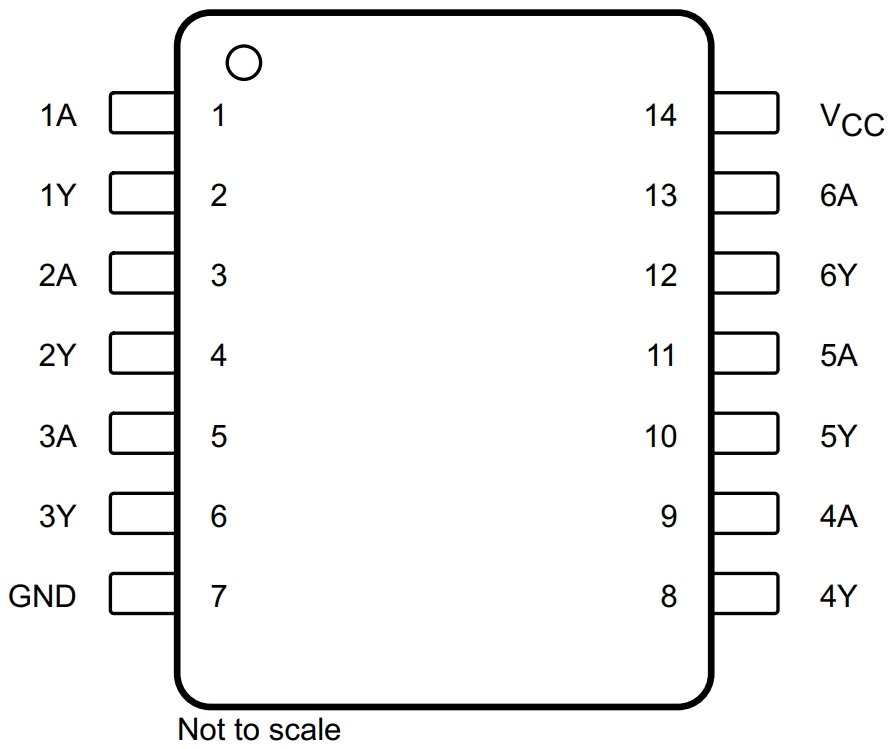

Detailed Circuit Connection: Debouncing a Mechanical Switch

Step 1: Power Supply Connection

- VCC to Pin 14: Connect the positive terminal of your power supply (within 2V to 5.5V) to pin 14 of the SN74AHC14DRG4.

- GND to Pin 7: Connect the ground terminal of your power supply to pin 7.

Step 2: Input Signal Connection

- Switch to Pin 1: Connect a mechanical switch between pin 1 (input of the first inverter) and the ground. This will serve as the input signal.

Step 3: Output Monitoring

- Output from Pin 2: The output of the first inverter can be observed at pin 2. This output will be a debounced signal of the switch input.

Step 4: Bypass Capacitor

- Bypass Capacitor Across VCC and GND: Place a 0.1µF bypass capacitor close to the VCC and GND pins of the SN74AHC14DRG4 to stabilize the power supply.

Design Considerations:

When designing circuits with the SN74AHC14DRG4, consider the following:

- Stable Power Supply: Make sure the power source stays stable within the designated voltage range.

- Load Capacitance: Pay attention to the load capacitance on each output, as performance may suffer if it is more than the recommended limits.

- Signal Integrity: Pay attention to the integrity of the input signal to maximize the effectiveness of the Schmitt-Trigger action.

In conclusion, the SN74AHC14DRG4 is a versatile and essential component for digital signal processing, offering solutions in various scenarios like switch debouncing and waveform generation. Understanding its parameters and appropriate circuit design considerations is crucial for effective utilization.
