Texas Instruments SN74AHC14DR

Part No.:: SN74AHC14DR

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: SN74AHC14DR.pdf

Description:: IC INV SCHMITT 6CH 1-IN 14SOIC

In Stock:: 2371

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74AHC14DR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74AHC
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
Schmitt Trigger
Voltage-Supply:
2V ~ 5.5V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
8mA, 8mA
LogicLevel-Low:
0.9V ~ 1.65V
LogicLevel-High:
2.2V ~ 3.85V
MaxPropagationDelay@VMaxCL:
10.6ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN74AHC14DR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74AHC14DR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74AHC14DR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74AHC14DR information

Views：

SN74AHC14DR Typical application Circuitry

SN74AHC14DR

The SN74AHC14DR is a Hex Schmitt-Trigger Inverter, a type of integrated circuit. Let's examine its features, use cases, essential characteristics, and offer a thorough illustration of how it might be used to a particular circuit design, taking circuit design factors into account.. The response will be structured with bolded headings for clarity and will include the key term "SN74AHC14DR" multiple times.

Functionality of SN74AHC14DR:

The SN74AHC14DR is primarily used for signal conditioning. It converts irregular waveforms into sharper, more defined digital signals. The Schmitt-Trigger action in each inverter allows the circuit to handle slow input transition, effectively eliminating noise on the input signal.

Application Scenarios:

One common application for the SN74AHC14DR is in digital circuits where signal integrity is crucial, such as in microcontroller interfaces, signal squaring, or in oscillator circuits.

Key Parameters:

- Supply Voltage Range: Typically 2V to 5.5V.

- High-Speed Operation: Typical tpd of 8 ns at 5V.

- Low Power Consumption: Suitable for battery-powered devices.

Example Circuit Design: Oscillator Circuit

Let's design an oscillator circuit using the SN74AHC14DR:

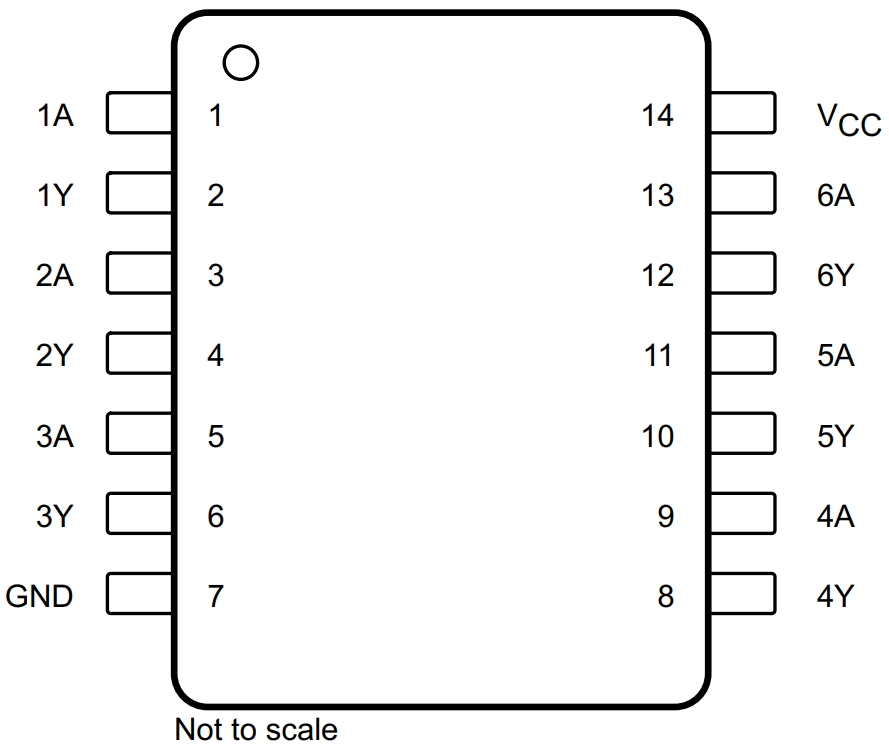

Power Supply Connection:

- Vcc (Pin 14): Connect to a 5V power supply.

- GND (Pin 7): Connect to the ground.

Oscillator Configuration:

- Feedback Resistor (R1): Connect a resistor (e.g., 10kΩ) between the output of one inverter (e.g., Pin 1) and the input of the same inverter (e.g., Pin 2).

- Timing Capacitor (C1): Connect a capacitor (e.g., 1µF) between the input of the inverter (Pin 2) and ground.

- Output Signal (Pin 1): This pin provides the oscillator output.

Bypass Capacitor:

- Stabilizing Supply Voltage: Place a 0.1µF capacitor close to the Vcc pin (Pin 14) to ground to stabilize the supply voltage.

Unused Inverters:

- Grounding Unused Inputs: Ground the inputs of unused inverters to prevent floating inputs, which can lead to increased power consumption and erratic behavior.

Design Considerations:

When designing with the SN74AHC14DR, consider the following:

- Power Supply Stability: Ensure a stable power supply to prevent erratic behavior.

- Input Signal Quality: Clean and stable input signals are essential for reliable operation.

- Thermal Management: Although the chip consumes low power, proper thermal management is still necessary in compact or enclosed designs.

This detailed explanation covers the functionality, applications, and a specific example of using the SN74AHC14DR in an oscillator circuit, along with critical design considerations.
