What is the Additional Feature ?

Name: SN74ACT245DWRG4
Brand: Texas Instruments
SKU: SN74ACT245DWRG4
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN74ACT245DWRG4

Part No.:: SN74ACT245DWRG4

Manufacturer:: Texas Instruments

Package:: 20-SOIC (0.295, 7.50mm Width)

Datasheet:: SN74ACT245DWRG4.pdf

Description:: IC TXRX NON-INVERT 5.5V 20SOIC

In Stock:: 2202

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74ACT245DWRG4 Specifications

Package/Case:
20-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR)
Series:
74ACT
ProductStatus:
Discontinued at Mosen
LogicType:
Transceiver, Non-Inverting
NumberofElements:
1
NumberofBitsperElement:
8
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
24mA, 24mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

SN74ACT245DWRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74ACT245DWRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74ACT245DWRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74ACT245DWRG4 information

Views：

SN74ACT245DWRG4 Typical application Circuitry

SN74ACT245DWRG4

The SN74ACT245DWRG4 is an integrated circuit (IC) that functions as an octal bus transceiver. This chip is designed with the capability to provide bidirectional communication of data in digital systems. Its primary use is in applications requiring data transfer or communication between two buses of different voltages or speeds.

Application Scenario: One common use of the SN74ACT245DWRG4 is in microcontroller-based systems for interfacing a low-voltage microcontroller with a higher voltage peripheral or bus.

Parameter Features: The key characteristics of the SN74ACT245DWRG4 include

- Voltage Compatibility: It operates at a voltage range typically from 4.5V to 5.5V, making it suitable for TTL (Transistor-Transistor Logic) level interfacing.

- Bidirectional Data Flow: This IC allows for data flow in both directions, controlled by the direction control (DIR) pin.

- Output Enable (OE): This feature allows the outputs to be put in a high-impedance state, effectively disconnecting the transceiver from the bus.

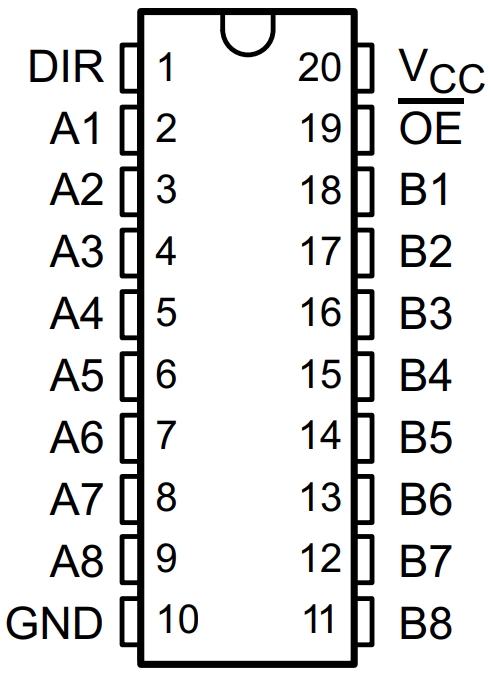

Detailed Circuit Connection for a Microcontroller Interface:

- VCC (Pin 20) and GND (Pin 10): Connect VCC to the 5V supply and GND to the system ground.

- DIR (Pin 1): Connect this to a control pin of the microcontroller to set the direction of data flow. Setting it high enables A to B communication, while low enables B to A communication.

- OE (Pin 19): Connect this to another control pin of the microcontroller. Setting it low enables the outputs, while high disables them, placing them in a high-impedance state.

- A1-A8 (Pins 2-9) and B1-B8 (Pins 11-18): Connect A1-A8 to the microcontroller data pins and B1-B8 to the higher voltage peripheral or bus.

Voltage Compatibility:

- Verify that the peripheral's and the microcontroller's voltage levels are compatible with the SN74ACT245DWRG4.

- Power Dissipation: Consider the power dissipation of the IC in the circuit to avoid overheating.

- Signal Integrity: Ensure proper PCB layout to maintain signal integrity, especially at higher data rates.

- Decoupling Capacitors: To stabilize the power supply, place decoupling capacitors next to the VCC and GND pins.

In designing circuits with the SN74ACT245DWRG4, it is crucial to thoroughly understand the electrical characteristics and pin configurations of the IC to ensure proper operation and reliability of the system.
