Texas Instruments SN74ACT244PWRG4

Part No.:: SN74ACT244PWRG4

Manufacturer:: Texas Instruments

Package:: 20-TSSOP (0.173, 4.40mm Width)

Datasheet:: SN74ACT244PWRG4.pdf

Description:: IC BUF NON-INVERT 5.5V 20TSSOP

In Stock:: 2260

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74ACT244PWRG4 Specifications

Package/Case:
20-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74ACT
ProductStatus:
Discontinued at Mosen
LogicType:
Buffer, Non-Inverting
NumberofElements:
2
NumberofBitsperElement:
4
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
24mA, 24mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

SN74ACT244PWRG4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74ACT244PWRG4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74ACT244PWRG4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74ACT244PWRG4 information

Views：

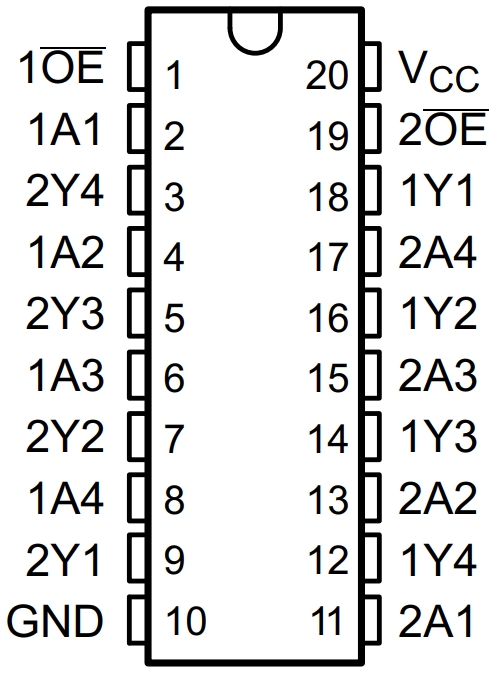

SN74ACT244PWRG4 Typical application Circuitry

SN74ACT244PWRG4

An integrated circuit device having 3-state outputs that functions as an octal buffer/line driver is called the SN74ACT244PWRG4. This type of chip is used in digital systems to drive lines or buffer signals, ensuring that signals are strong enough to be transmitted over longer distances or to multiple inputs. Its applications are varied, including in communication systems, data buses, and signal buffering.

Key Features of SN74ACT244PWRG4:

- High Drive Capability: It can drive larger loads, making it suitable for bus-oriented systems.

- Dual-Function Outputs: With 3-state control, this allows for increased flexibility in bus-oriented applications.

- Broad Voltage Range: Suitable for a range of logic levels.

- Low Power Consumption: Efficient for battery-powered devices.

Application Scenario: Data Bus Interface

In a data bus interface application, the SN74ACT244PWRG4 can be used to buffer data signals and drive them through a bus system.

Detailed Connection Method:

- Pin Configuration: Use the output enable (OE) pins to control the state of the outputs. For example, connect OE1 to a control logic to enable or disable the first four buffers.

- Data Inputs: Connect the data inputs (A1 to A8) to the data source, such as a microcontroller or sensor output.

- Data Outputs: The outputs (Y1 to Y8) can be connected to the data bus, transmitting buffered signals.

- Power Supply Pins: VCC and GND must be connected to the appropriate power supply levels.

- Programming Pins: If interfacing with a microcontroller, certain pins (like OE) might be programmatically controlled.

Design Considerations:

- Signal Integrity: Ensure minimal signal degradation, especially in long bus lines.

- Power Supply Stability: A stable VCC is crucial for consistent performance.

- Thermal Management: Consider heat dissipation in high-frequency or high-load applications.

In summary, the SN74ACT244PWRG4 is a versatile chip, essential in applications requiring strong drive capabilities and 3-state output control. It is important to consider signal integrity, power supply stability, and thermal control while building circuits with this device.
