Texas Instruments SN74ACT244PWR

Part No.:: SN74ACT244PWR

Manufacturer:: Texas Instruments

Package:: 20-TSSOP (0.173, 4.40mm Width)

Datasheet:: SN74ACT244PWR.pdf

Description:: IC BUF NON-INVERT 5.5V 20TSSOP

In Stock:: 2916

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74ACT244PWR Specifications

Package/Case:
20-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74ACT
ProductStatus:
Active
LogicType:
Buffer, Non-Inverting
NumberofElements:
2
NumberofBitsperElement:
4
InputType:
-
OutputType:
3-State
Current-OutputHighLow:
24mA, 24mA
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

SN74ACT244PWR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74ACT244PWR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74ACT244PWR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74ACT244PWR information

Views：

SN74ACT244PWR Typical application Circuitry

SN74ACT244PWR

The SN74ACT244PWR integrated circuit is widely recognized for its ability to operate as a 3-state output octal buffer/line driver. This chip is particularly useful in applications where buffering for data lines of bus-oriented systems is needed. It's characterized by features like high-drive outputs, reduced power consumption compared to older technologies, and a wide operating voltage range.

Application Scenario: Data Bus Buffering

In a typical application as a data bus buffer, the SN74ACT244PWR is used to isolate and drive data lines in a microcontroller-based system.

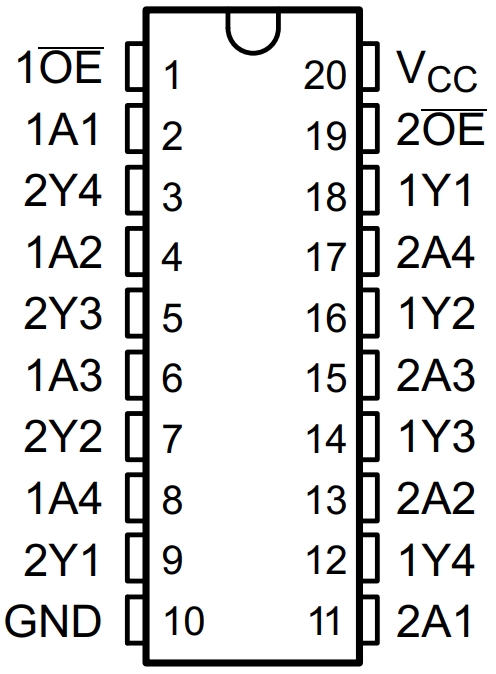

Pin Configuration for Data Bus Buffering:

- Data Inputs/Outputs (Pins 2, 4, 6, 8, 18, 16, 14, 12): These pins are directly connected to the data bus of the microcontroller or processor.

- Output Enable (Pins 1 and 19): These pins are used to control the state of the outputs. They can be connected to control lines of the microcontroller to enable or disable the output drivers.

- GND (Pin 10) and VCC (Pin 20): Ground and supply voltage connections for the chip. VCC should be connected to a suitable power source within the chip's operating voltage range.

- Additional Pins (3, 5, 7, 9, 11, 13, 15, 17): Connected to respective output devices or next stage in the circuit.

Design-Related Issues:

A circuit designed with the SN74ACT244PWR must take into account a number of considerations, including:

- Compatibility with Voltage: Verify that the SN74ACT244PWR's operating voltage doesn't conflict with any other system parts.

- Drive Capability: Check the current driving capability of the outputs to ensure they can drive the connected loads.

- Timing Requirements: Consider the timing specifications of the SN74ACT244PWR to ensure it matches the system's timing requirements.

- Thermal Management: Although the SN74ACT244PWR has low power consumption, proper thermal management is essential in high-speed or high-density applications.

In summary, the SN74ACT244PWR is a versatile octal buffer/line driver used in various applications requiring robust data line driving capabilities, especially in bus-oriented systems. Effective circuit design requires an understanding of its pin configuration, characteristics, and design concerns.
