Texas Instruments SN74AC04DBR

Part No.:: SN74AC04DBR

Manufacturer:: Texas Instruments

Package:: 14-SSOP

Datasheet:: SN74AC04DBR.pdf

Description:: IC INVERTER 6CH 1-INP 14SSOP

In Stock:: 6400

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74AC04DBR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
74AC
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
24mA, 24mA
LogicLevel-Low:
0.9V ~ 1.65V
LogicLevel-High:
2.1V ~ 3.85V
MaxPropagationDelay@VMaxCL:
7ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74AC04DBR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74AC04DBR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74AC04DBR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74AC04DBR information

Views：

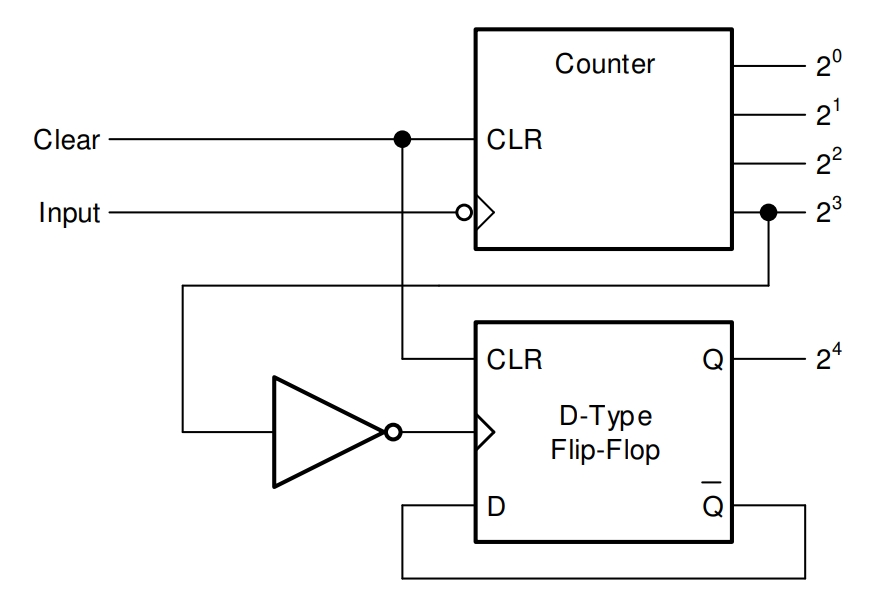

SN74AC04DBR Typical application Circuitry

SN74AC04DBR

The SN74AC04DBR is a hex inverter, a digital logic chip that contains six independent inverters. It is primarily used for inverting digital signals, making it a crucial component in various digital circuits, including signal conditioning, generating control signals, or as part of more complex logic gates.

Core Functionality

Each inverter in the SN74AC04DBR transforms a high (logic level 1) input to a low (logic level 0) output, and vice versa. This operation is fundamental in digital logic, offering a building block for various complex operations.

Application Scenarios

The SN74AC04DBR is often used in signal processing, where it may serve to invert control signals, generate precise delays, or create pulse generators. Its ability to provide clean, inverted outputs from noisy or uncertain inputs makes it useful in a wide range of digital systems.

Characteristic Parameters

- Supply Voltage (Vcc): Typically operates between 2V and 6V.

- Input High Voltage (VIH): Usually above 2V for a logic high input.

- Input Low Voltage (VIL): Normally below 0.8V for a logic low input.

- Output Current (IO): The current that it can source or sink at its output.

Circuit Integration: Pulse Generator

In this application, the SN74AC04DBR is used to create a pulse generator using feedback and an RC network.

1. Power Supply Connection

- Vcc (Pin 14): Connect this pin to a +5V power source.

- Ground (Pin 7): Connect this pin to the system ground.

2. Pulse Generator Configuration

- Input (Pin 1 of one inverter): Connect this pin to the output (Pin 2 of the same inverter) through a feedback resistor (R). Also connect this pin to one terminal of a capacitor (C). The other terminal of the capacitor should be connected to the ground.

- Output (Pin 2 of the same inverter): This pin will output the generated pulse signal.

3. Handling Unused Inverters

- Unused Inputs: Directly connect the inputs of the unused inverters to the ground to ensure they are not floating.

- Unused Outputs: Leave the outputs of the unused inverters unconnected.

Design Considerations

When designing circuits with the SN74AC04DBR, it's essential to consider the following:

1. Power Supply Integrity: Ensure a stable power supply to prevent erratic behavior.

2. Component Values: Choose the resistor (R) and capacitor (C) values carefully to set the desired frequency of the pulse generator.

3. Thermal Management: Consider the thermal aspects, especially if the circuit is used in a high-frequency application or a high-temperature environment.

4. Signal Integrity: Keep the trace lengths as short as possible to minimize signal degradation due to capacitance or inductance.

In conclusion, the SN74AC04DBR is a versatile component in digital electronics, particularly effective in situations that require signal inversion or pulse generation. Its implementation in a pulse generator circuit highlights its capability to generate stable signals. Focusing on power supply stability, appropriate component selection, thermal management, and signal integrity is crucial for leveraging the full potential of the SN74AC04DBR, making it a robust and reliable choice in digital circuit design. Whether for signal inversion, timing adjustments, or constructing complex logic gates, the SN74AC04DBR proves to be an indispensable tool in achieving precise and efficient digital operations.
