Texas Instruments SN74AC04D

Part No.:: SN74AC04D

Manufacturer:: Texas Instruments

Package:: 14-SOIC

Datasheet:: SN74AC04D.pdf

Description:: IC INVERTER 6CH 1-INP 14SOIC

In Stock:: 1016

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN74AC04D Specifications

Packaging:
Tube
Series:
74AC
ProductStatus:
Active
LogicType:
Inverter
NumberofCircuits:
6
NumberofInputs:
1
Features:
-
Voltage-Supply:
2V ~ 6V
Current-Quiescent(Max):
2 µA
Current-OutputHighLow:
24mA, 24mA
LogicLevel-Low:
0.9V ~ 1.65V
LogicLevel-High:
2.1V ~ 3.85V
MaxPropagationDelay@VMaxCL:
7ns @ 5V, 50pF
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN74AC04D this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN74AC04D price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN74AC04D to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN74AC04D information

Views：

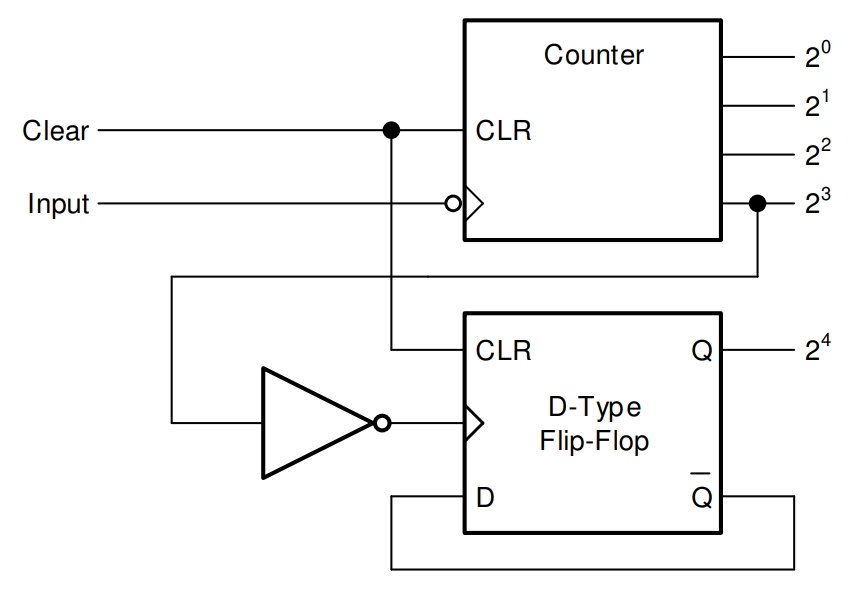

SN74AC04D Typical application Circuitry

SN74AC04D

The SN74AC04D is a hex inverter chip, which consists of six independent inverters. It's primarily used to perform the logical inversion function, where an input of high (1) yields an output of low (0) and vice versa. This chip is fundamental in digital circuits for signal inversion, wave shaping, and constructing complex logic structures.

Core Functionality

The SN74AC04D's primary function is to invert input signals. Each of the six inverters in the chip toggles its output to the opposite state of its input, making it a staple in various digital and signal processing applications.

Application Scenarios

The SN74AC04D is widely used in digital logic circuits, signal conditioning, pulse shaping, and as a part of more complex integrated circuits. Its ability to provide clean, inverted outputs from input signals makes it useful in a broad range of applications.

Characteristic Parameters

- Supply Voltage (Vcc): Typically operates between 2V and 6V.

- Input High Voltage (VIH): Minimum voltage required for a logical '1'.

- Input Low Voltage (VIL): Maximum voltage interpreted as a logical '0'.

- Output Current (IO): The current it can source or sink at its output.

Circuit Integration: Signal Inversion for Control Logic

In this application, the SN74AC04D is used to invert control signals in a digital system, ensuring that the active levels of control signals are compatible with other components in the system.

1. Power Supply Connection

- Vcc (Pin 14): Connect this pin to a +5V power source.

- Ground (Pin 7): Connect this pin to the system ground.

2. Input Signal Connection

- Input (Pins 1, 3, 5, 9, 11, 13): Connect these pins to the control signals that need inversion. If fewer than six signals are inverted, ensure unused inputs are tied to a known state (Vcc or Ground).

3. Output Signal Retrieval

- Output (Pins 2, 4, 6, 8, 10, 12): These pins provide the inverted signals. Connect them to the control inputs of the subsequent digital circuit or device.

Design Considerations

When designing circuits with the SN74AC04D, it's essential to consider the following:

1. Power Supply Quality: Ensure a stable power supply to prevent erratic behavior of the inverters.

2. Input Signal Quality: While the inverters are robust, extremely noisy input signals might require additional filtering.

3. Output Load Management: Ensure that the load connected to the outputs does not exceed the chip's current sourcing/sinking capabilities.

4. Unused Inputs: Define the state of unused inputs to prevent them from floating, which can lead to unpredictable behavior.

In conclusion, the SN74AC04D is a fundamental component in digital electronics, particularly effective in situations that require signal inversion, such as in control logic circuits. Its implementation in inverting control signals highlights its capability to ensure compatibility between different system components. Careful attention to power supply quality, input signal conditioning, and output load management is crucial in leveraging the full potential of the SN74AC04D, making it a robust and reliable choice in digital circuit design. Whether for signal inversion, timing adjustments, or constructing complex logic gates, the SN74AC04D proves to be an indispensable tool in achieving precise and efficient digital operations.
