Name: SN65HVD75DR
Brand: Texas Instruments
SKU: SN65HVD75DR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN65HVD75DR

Part No.:: SN65HVD75DR

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: SN65HVD75DR.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SOIC

In Stock:: 3916

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN65HVD75DR Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS422, RS485
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
80 mV
DataRate:
20Mbps
Voltage-Supply:
3V ~ 3.6V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN65HVD75DR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN65HVD75DR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN65HVD75DR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN65HVD75DR information

Views：

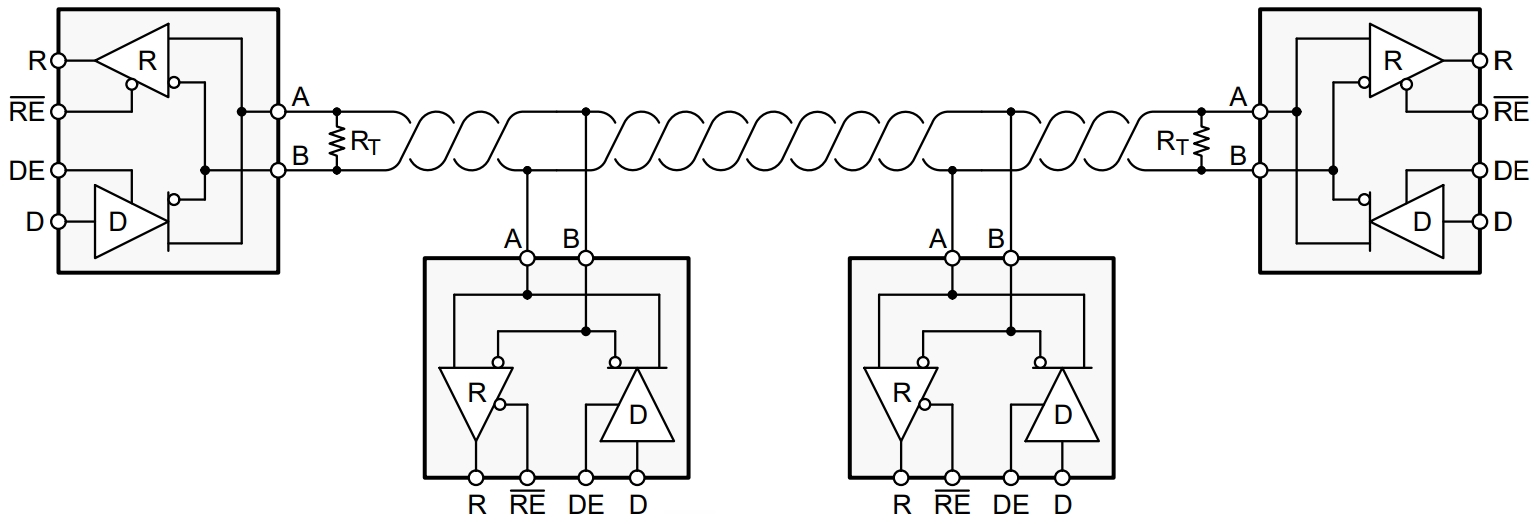

SN65HVD75DR Typical application Circuitry

SN65HVD75DR

The SN65HVD75DR is a chip designed for differential bus communication, commonly used in industrial applications and automotive systems. This chip is part of the SN65HVDxx family and is known for its robustness and reliability in transmitting data over long distances in noisy environments.

Key Features of SN65HVD75DR:

1. Differential Bus Communication: The SN65HVD75DR is specifically designed for differential signaling, making it suitable for applications where noise immunity is crucial.

2. Wide Operating Voltage Range: It operates over a wide voltage range, typically from 3.3V to 5V, allowing flexibility in power supply design.

3. Low Standby Current: It has low standby current consumption, which is important for battery-powered applications.

4. Extended Temperature Range: This chip can operate in a wide temperature range, making it suitable for both industrial and automotive applications.

Application Scenario: RS-485 Communication

One common application for the SN65HVD75DR is in RS-485 communication networks. RS-485 is a widely used standard for long-distance communication in industrial and automation systems. Here's a detailed circuit connection for an RS-485 communication setup using the SN65HVD75DR:

Circuit Overview:

In this application, we will connect two devices (Device A and Device B) using RS-485 communication facilitated by SN65HVD75DR.

Connection Details:

1. Power Supply Connection:

- Connect the VCC pin of SN65HVD75DR to a 5V power supply for both devices.

- Connect the GND pin of SN65HVD75DR to the ground of the power supply for both devices.

2. Data Line Connections:

- Connect the A and B pins of SN65HVD75DR on Device A to the A and B pins of SN65HVD75DR on Device B, respectively.

- Connect a termination resistor (typically 120 ohms) between the A and B lines at the far ends of the communication bus to reduce reflections.

3. Control Signals (if necessary):

- If you need control signals such as DE (Driver Enable) and RE (Receiver Enable), connect them to the respective pins on SN65HVD75DR as needed for your application.

4. Grounding:

- Ensure proper grounding between the devices to establish a common reference.

Considerations:

When designing this circuit, consider the following factors:

1. Termination: Proper termination with a resistor at each end of the communication bus is crucial for signal integrity.

2. Voltage Levels: Ensure that the voltage levels of your devices are compatible with the SN65HVD75DR (usually 5V or 3.3V).

3. Noise Immunity: RS-485 is known for its noise immunity, but you should still minimize electromagnetic interference in the environment.

4. Data Rates: Choose an appropriate data rate for your application, considering the SN65HVD75DR's capabilities.

In conclusion, the SN65HVD75DR is a versatile chip suitable for RS-485 communication in various industrial and automotive applications. Proper circuit design and consideration of voltage levels, termination, and noise immunity are essential for a reliable communication system.
