Texas Instruments SN65HVD72DR

Part No.:: SN65HVD72DR

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: SN65HVD72DR.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SOIC

In Stock:: 3444

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN65HVD72DR Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS422, RS485
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
80 mV
DataRate:
250kbps
Voltage-Supply:
3V ~ 3.6V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN65HVD72DR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN65HVD72DR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN65HVD72DR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN65HVD72DR information

Views：

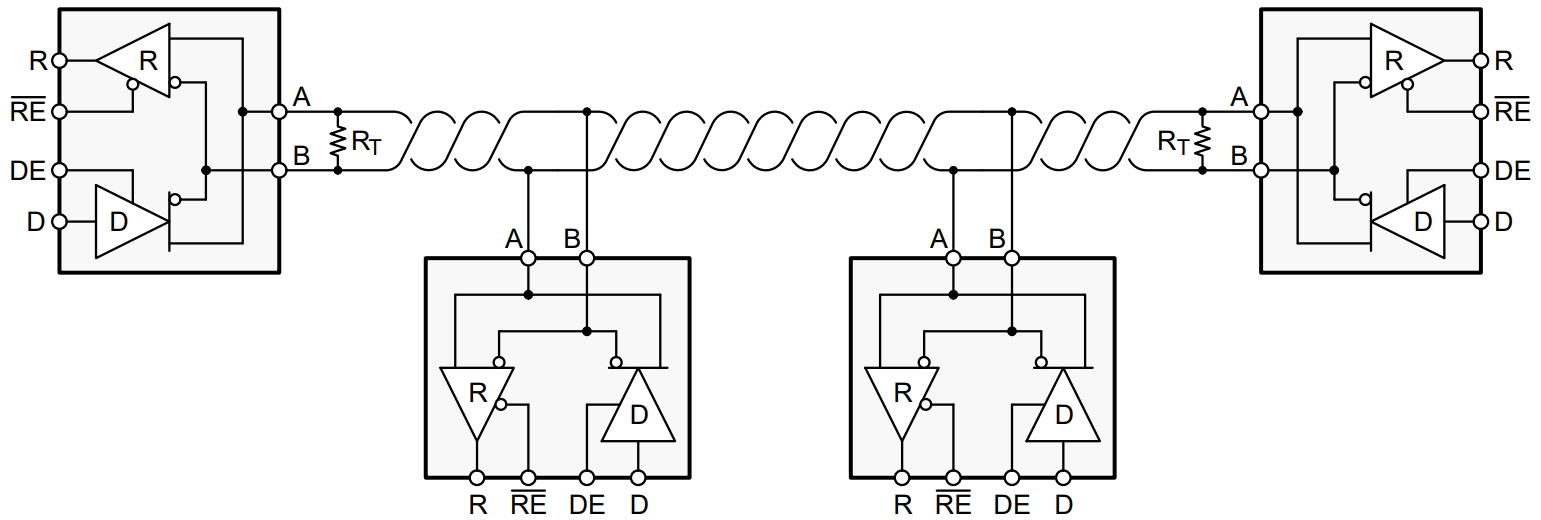

SN65HVD72DR Typical application Circuitry

SN65HVD72DR

The SN65HVD72DR is a type of transceiver chip used for RS-485 and RS-422 communication. It's designed to operate in environments that require robust communication over long distances and in noisy environments. Here's a detailed overview of its features, applications, and a specific circuit implementation.

Functionality and Application Scenarios:

- Transceiver Chip: The SN65HVD72DR is mostly employed as a transceiver for communication protocols RS-485 and RS-422.

- Industrial Applications: Commonly found in industrial control systems, factory automation, and network communication systems due to its robustness against noise and long-distance communication capabilities.

Parameter Characteristics:

- Differential Output: It can deliver differential output, which is essential for RS-485 communication.

- Voltage Range: Operates typically in the 3.3V range, suitable for many digital systems.

- High-Speed Operation: Capable of high-speed data transmission, making it suitable for fast communication requirements.

Circuit Implementation: RS-485 Communication Example

- Power Supply Connection: Connect VCC (pin 5) to a 3.3V power supply. Ensure stable power for reliable operation.

- Grounding: Connect the GND (pin 4) to the system ground.

- Data Inputs: Connect driver inputs (DE, pin 3, and DI, pin 1) to the microcontroller or data source. DE is the Driver Enable pin, and DI is the Driver Input.

- Data Outputs: Connect receiver outputs (RO, pin 2, and RE, pin 6) to the microcontroller or data destination. RO is the Receiver Output, and RE is the Receiver Enable.

- Bus Connections: Connect the A (pin 7) and B (pin 8) pins to the RS-485 bus. These are the differential communication lines.

- Termination Resistor: A termination resistor may be needed across the A and B lines depending on the network topology.

- Programming Pins: For firmware programming, connect microcontroller pins to DI and RO for data transmission and reception.

Design Considerations:

- Electrical Isolation: In harsh environments, consider electrical isolation between the chip and the rest of the circuit to protect against voltage spikes.

- Impedance Matching: Ensure the impedance of the transmission lines matches the RS-485 standard to minimize signal reflections.

- Noise Suppression: Implement noise suppression techniques like filtering and shielding, especially in noisy industrial environments.

Usage of the SN65HVD72DR Keyword:

- Utilize the SN65HVD72DR for reliable RS-485/RS-422 communication in industrial settings.

- The SN65HVD72DR's differential output capability is key for robust data transmission.

- Implementing the SN65HVD72DR in a circuit requires attention to power, data lines, and bus connections.

- Designing with the SN65HVD72DR involves considerations of electrical isolation and noise suppression.

By following these guidelines, the SN65HVD72DR can be effectively utilized in a circuit for reliable industrial communication. Don't forget to modify the design to meet the particular needs of your application.
