What is the Additional Feature ?

Name: SN65HVD231DR
Brand: Texas Instruments
SKU: SN65HVD231DR
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Texas Instruments SN65HVD231DR

Part No.:: SN65HVD231DR

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: SN65HVD231DR.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SOIC

In Stock:: 3169

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN65HVD231DR Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®,Bulk
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
CANbus
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
100 mV
DataRate:
1Mbps
Voltage-Supply:
3V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C
MountingType:
Surface Mount

SN65HVD231DR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN65HVD231DR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN65HVD231DR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN65HVD231DR information

Views：

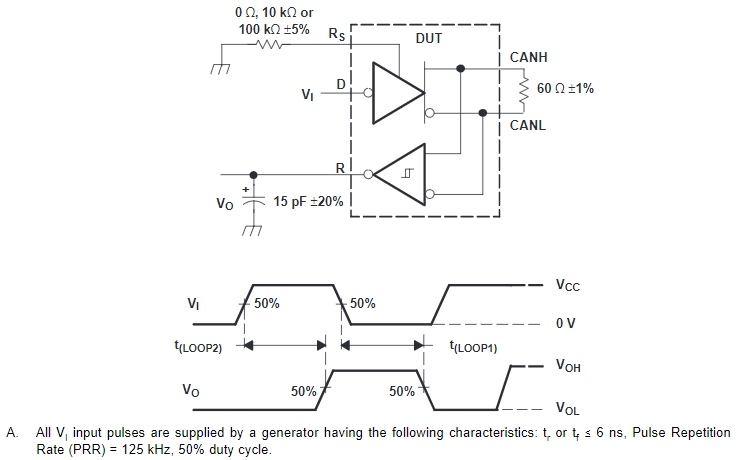

SN65HVD231DR Typical application Circuitry

SN65HVD231DR

The SN65HVD231DR is a CAN (Controller Area Network) transceiver chip, designed for use in automotive and industrial communication systems. It facilitates high-speed data transmission and reception within CAN networks, which are widely used for in-vehicle networks, industrial automation, and control systems. Here's a detailed explanation of its application in a typical CAN network, focusing on the connection methodology and key considerations:

Functionality of SN65HVD231DR:

- Function in CAN Networks: The SN65HVD231DR serves as an interface between the actual two-wire CAN bus and a CAN protocol controller. It converts CAN bus levels to TTL logic signals and vice versa.

- Operational Features: This chip operates at 3.3V with features like low-power operation, protection against voltage transients, and an integrated protection for thermal shutdown and electrostatic discharge (ESD).

Application Scenario: Vehicle CAN Network

- Integration with Microcontroller: The SN65HVD231DR is typically connected to a microcontroller with a built-in CAN controller. The TXD (transmit) pin of the microcontroller is connected to the TXD pin of the SN65HVD231DR, and the RXD (receive) pin of the microcontroller is connected to the RXD pin of the SN65HVD231DR.

- Connection to CAN Bus: The CANH (High) and CANL (Low) pins of the SN65HVD231DR are connected to the corresponding CAN bus lines. This setup facilitates differential signal transmission, which is resilient to noise.

- Power Supply and Grounding: The VCC pin is connected to a 3.3V power supply, and the GND pin is connected to the system ground. It's crucial to ensure clean and stable power supply for reliable operation.

- Termination Resistors: For a CAN network, termination resistors are necessary at both ends of the bus to prevent signal reflections. Typically, 120 Ohm resistors are used.

- Programming Pins: In most applications, programming isn't directly done via the SN65HVD231DR. Instead, programming occurs through the microcontroller, which then communicates with the CAN network via the transceiver.

Design Considerations:

- Impedance Matching: Ensuring proper impedance matching with the CAN bus to prevent signal integrity issues.

- Power Supply Stability: A stable and noise-free power supply is critical for the accurate operation of the SN65HVD231DR.

- Thermal Management: Given the SN65HVD231DR's integrated thermal shutdown feature, it's essential to consider the thermal aspect of the circuit design, especially in high-temperature environments like automotive applications.

- ESD Protection: Additional external ESD protection may be considered for enhanced robustness, especially in harsh industrial environments.

In summary, the SN65HVD231DR is a crucial component in CAN network systems, offering efficient and reliable communication in various applications, particularly automotive and industrial automation. When designing circuits with this chip, attention must be given to aspects such as power supply quality, signal integrity, and environmental factors to ensure optimal performance.

SN65HVD231DR FAQ

1. How to order SN65HVD231DR on icwhale.com?

Currently, icwhale.com only provide peer-to-peer order processing. While you submit the RFQ, our professional agent will contact you with the competitive prices in the global market, and our agent will prompt you to finish the order if you accept our offers.

2. How does icwhale.com guarantee that SN65HVD231DR is from the original manufacturer or authorized agents?

We have a professional and experienced quality control team to strictly verify and test the SN65HVD231DR. All suppliers must pass our qualification reviews before they can publish their products including SN65HVD231DR on icwhale.com; we pay more attention to the channels and quality of SN65HVD231DR products than any other customer. We strictly implement supplier audits, so you can purchase with confidence.

3. Are the SN65HVD231DR price and inventory displayed accurate?

The price and inventory of SN65HVD231DR fluctuates frequently and cannot be updated in time, it will be updated periodically within 24 hours. And, our quotation usually expires after 5 days.

4. What forms of payment are accepted?

Wire Transfer, PayPal, Alipay, Wechat, Credit Card, Western Union, MoneyGram, and Escrow are all acceptable.

Warm Tips: Some orders in certain payment forms may require handling fee.

5. How is the shipping arranged?

Customers can choose industry-leading freight companies, including DHL, UPS, FedEx, TNT, and Registered Mail. Shipping insurance is also available.

Once your order has been processed for shipment, our salesperson will send you an email advising you of the shipping status and tracking number.

Warm Tips: It may take up to 24 hours for the carriers to display tracking information. Usually, express delivery takes 3-5 days, and registered mail takes 25-60 days.

6. What is the process for return or replacement of SN65HVD231DR?

All goods will implement Pre-Shipment Inspection (PSI), selected at random from all batches of your order to do a systematic inspection before arranging the shipment. If there is something wrong with the SN65HVD231DR we delivered, we will accept the replacement or return of the SN65HVD231DR only when all of the below conditions are fulfilled:

(1)Such as a deficiency in quantity, delivery of wrong items, and apparent external defects (breakage and rust, etc.), and we acknowledge such problems.

(2)We are informed of the defect described above within 90 days after the delivery of SN65HVD231DR.

(3)The PartNo is unused and only in the original unpacked packaging.

Two processes to return the products:

(1)Inform us within 90 days

(2)Obtain Requesting Return Authorizations
