Texas Instruments SN65HVD1050DR

Part No.:: SN65HVD1050DR

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: SN65HVD1050DR.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SOIC

In Stock:: 3883

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN65HVD1050DR Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
CANbus
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
125 mV
DataRate:
-
Voltage-Supply:
4.5V ~ 5.5V
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

SN65HVD1050DR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN65HVD1050DR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN65HVD1050DR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN65HVD1050DR information

Views：

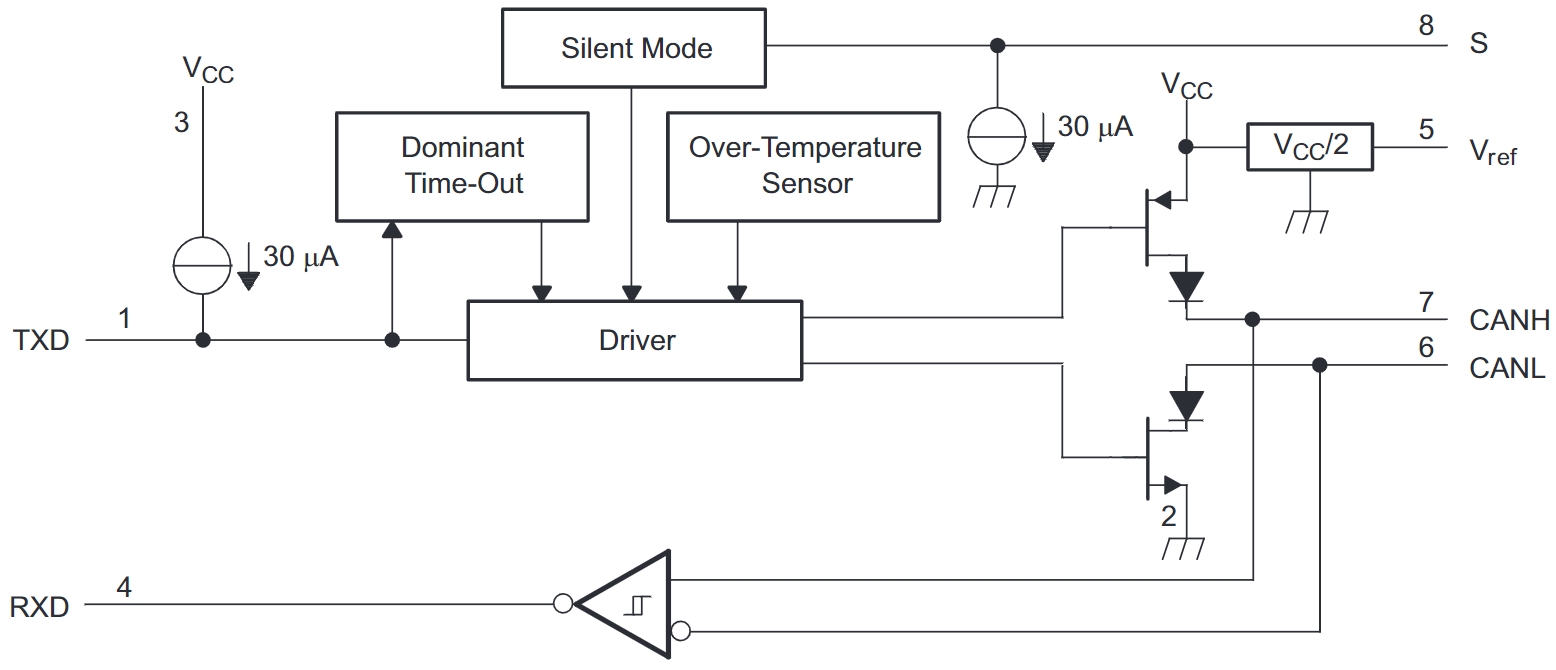

SN65HVD1050DR Typical application Circuitry

SN65HVD1050DR

The SN65HVD1050DR is an integrated circuit used in serial communication applications, specifically designed for CAN (Controller Area Network) bus systems. It functions as a transceiver, facilitating the transmission and reception of data in CAN networks, commonly found in automotive and industrial control systems.

Functional Overview:

- Transceiver Role: The SN65HVD1050DR acts as a bridge between a CAN protocol controller and the physical two-wire CAN bus. It translates the logic signals from the controller to CAN bus levels and vice versa.

- Differential Signaling: It uses differential signaling to provide robust communication in noisy environments, typical in automotive and industrial settings.

Application Scenarios:

- Automotive Systems: In vehicles, it's used for connecting various electronic control units (ECUs) like engine control modules, airbag systems, and infotainment systems.

- Industrial Automation: In factory settings, it facilitates communication between control systems, sensors, and actuators.

Key Parameters:

- Supply Voltage: Typically operates at 5V.

- Data Rate: Supports data rates up to 1 Mbps.

- Bus Fault Protection: Offers protection against transients in the bus line, enhancing reliability.

Example Circuit Connection (CAN Node):

Power Supply Connection:

- Connect the VCC pin of SN65HVD1050DR to a 5V power supply.

- Ground the GND pin to the system's ground.

CAN Bus Interface:

- Connect the D (Data) pin to the microcontroller's CAN transmit and receive pins.

- The CANH and CANL pins should be connected to the high and low lines of the CAN bus, respectively.

Termination Resistors:

- Attach a 120-ohm resistor between CANH and CANL at each end of the bus for impedance matching.

Programming Interface:

- For programming, interface the microcontroller with a standard UART or SPI port, depending on the microcontroller's capabilities. The SN65HVD1050DR itself doesn't require programming but works in conjunction with a microcontroller that does.

Design Considerations:

- Electromagnetic Interference (EMI): Ensure proper shielding and grounding to minimize EMI, crucial in automotive and industrial environments.

- Bus Length and Data Rate: Longer bus lengths may require lower data rates for reliable communication.

- Thermal Management: Provide adequate heat sinking if the circuit operates in high-temperature environments.

In summary, when using the SN65HVD1050DR in a CAN network, it's essential to focus on correct power supply connections, bus interface setup, termination for signal integrity, and considerations for EMI, data rate, and thermal management. This ensures reliable communication in various applications like automotive systems and industrial automation.
