Texas Instruments SN65176BDR

Part No.:: SN65176BDR

Manufacturer:: Texas Instruments

Package:: 8-SOIC (0.154, 3.90mm Width)

Datasheet:: SN65176BDR.pdf

Description:: IC TRANSCEIVER HALF 1/1 8SOIC

In Stock:: 2026

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SN65176BDR Specifications

Package/Case:
8-SOIC (0.154, 3.90mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Type:
Transceiver
Protocol:
RS422, RS485
NumberofDrivers/Receivers:
1/1
Duplex:
Half
ReceiverHysteresis:
50 mV
DataRate:
-
Voltage-Supply:
4.75V ~ 5.25V
OperatingTemperature:
-40°C ~ 105°C
MountingType:
Surface Mount

SN65176BDR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SN65176BDR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SN65176BDR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SN65176BDR information

Views：

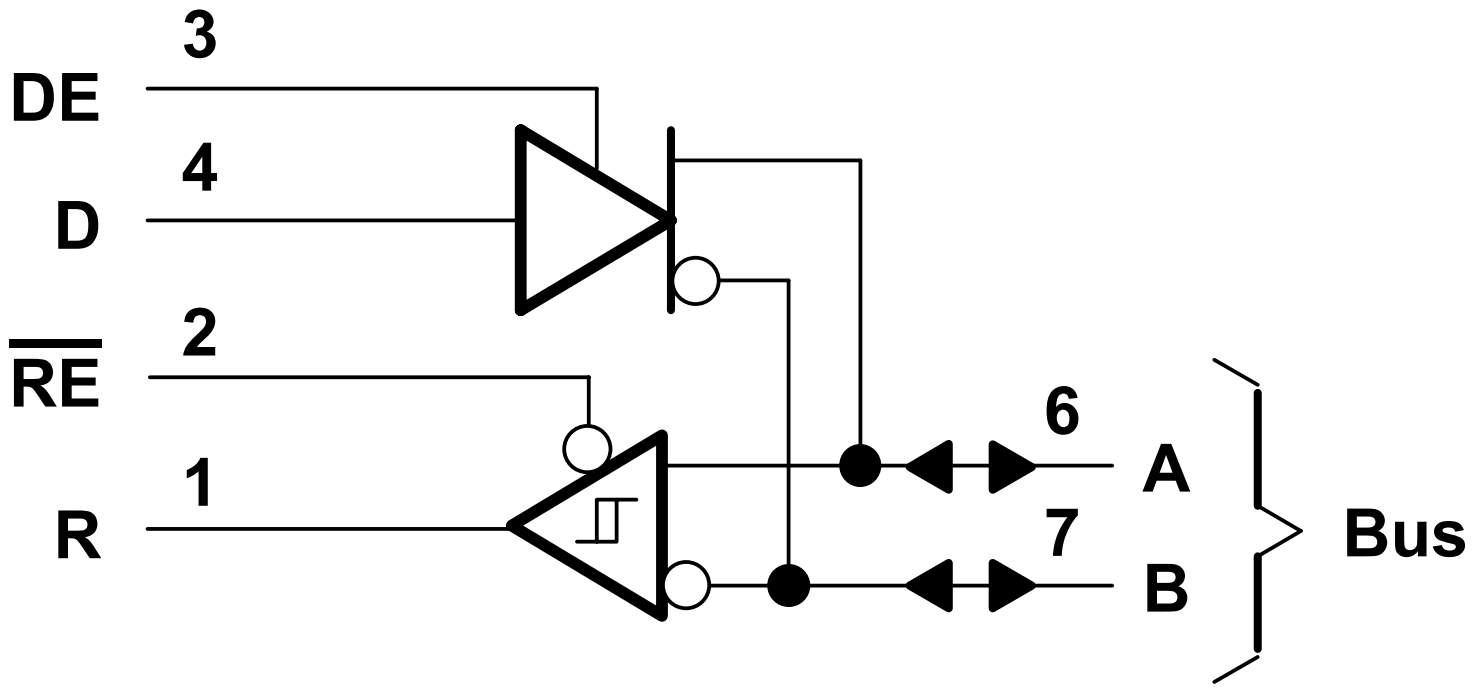

SN65176BDR Typical application Circuitry

SN65176BDR

The SN65176BDR is a differential bus transceiver chip designed for bidirectional data communication on multipoint bus transmission lines, particularly in noisy environments. It is well-suited for balanced transmission lines and complies with ANSI standards TIA/EIA-422-B and TIA/EIA-485-A, as well as ITU Recommendations V.11 and X.27. This chip is part of the SN65176B series, which features bidirectional transceivers, designed for long bus lines and noisy environments.

Key Features:

- Bidirectional Transceivers: Capable of both sending and receiving data, making them versatile for various communication needs.

- Compliance with Standards: Meets or exceeds requirements of ANSI TIA/EIA-422-B and TIA/EIA-485-A standards.

- Multipoint Transmission Design: Ideal for long-distance communication on bus lines.

- 3-State Driver and Receiver Outputs: Offers flexibility in controlling the state of the outputs.

- Individual Driver and Receiver Enables: Allows independent control of both driver and receiver.

- Voltage Ranges: Supports wide positive and negative input/output bus voltage ranges.

- Output Capability: Can handle ± 60-mA maximum driver output.

- Thermal Shutdown Protection: Ensures safety and longevity of the chip.

- Driver Current Limiting: Provides positive and negative current limiting for the driver.

- Receiver Input Impedance: Features a minimum of 12-kΩ.

- Receiver Input Sensitivity: ± 200-mV with 50-mV typical hysteresis.

- Power Supply: Operates from a single 5-V supply.

Application Scenario:

Let's consider an application scenario in an industrial environment, where this chip is used for RS-485 communication in a long-distance, multipoint bus system.

Circuit Connection Details:

1. Power Supply Connection: Connect the VCC pin to a 5-V power supply.

2. Grounding: Ensure the ground pin is properly connected to the system ground.

3. Data Transmission: Connect the data transmission (Tx) pin of the microcontroller to the driver input pin of the SN65176BDR.

4. Data Reception: Connect the data reception (Rx) pin of the microcontroller to the receiver output pin of the SN65176BDR.

5. Enabling the Driver: Use an active-high signal to enable the driver.

6. Enabling the Receiver: Use an active-low signal to enable the receiver.

7. Direction Control: Externally connect the driver and receiver enables to function as direction control.

8. Bus Connection: Connect the differential output pins of the driver and the differential input pins of the receiver to the RS-485 bus lines.

Design Considerations:

- Impedance Matching: Ensure proper impedance matching for the transmission lines to minimize signal reflections.

- Power Supply Stability: Maintain a stable 5-V power supply to ensure consistent performance.

- Thermal Management: Consider the thermal environment to prevent overheating and engage thermal shutdown protection.

- Noise Immunity: In noisy environments, ensure proper shielding and grounding to maintain signal integrity.

- Current Limiting: Be mindful of the maximum driver output capability to avoid overloading the chip.

This detailed connection and design considerations should guide the application of the SN65176BDR in an RS-485 communication scenario, ensuring efficient and reliable data transmission in industrial settings.
