Name: SM15T36CA-M3/9AT
Brand: Vishay General Semiconductor - Diodes Division
SKU: SM15T36CA-M3/9AT
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

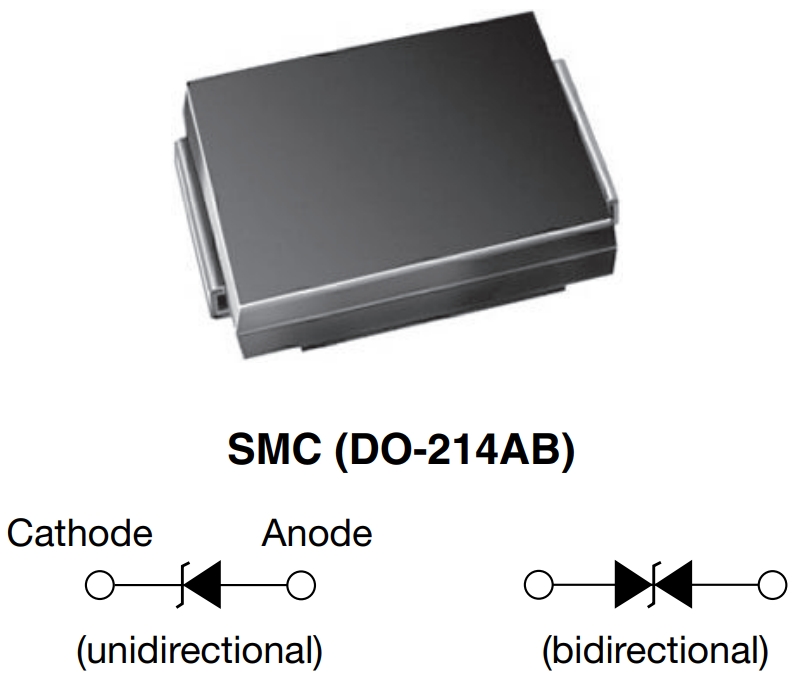

lmages are for reference only See Product Specifications

Vishay General Semiconductor - Diodes Division SM15T36CA-M3/9AT

Part No.:: SM15T36CA-M3/9AT

Manufacturer:: Vishay General Semiconductor - Diodes Division

Package:: DO-214AB, SMC

Datasheet:: SM15T36CA-M3/9AT.pdf

Description:: TVS DIODE 30.8VWM 49.9VC DO214AB

In Stock:: 3465

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SM15T36CA-M3/9AT Specifications

Package/Case:
DO-214AB, SMC
Packaging:
Tape & Reel (TR)
Series:
SM15T, TransZorb®
ProductStatus:
Active
Type:
Zener
UnidirectionalChannels:
-
BidirectionalChannels:
1
Voltage-ReverseStandoff(Typ):
30.8V
Voltage-Breakdown(Min):
34.2V
Voltage-Clamping(Max)@Ipp:
49.9V
Current-PeakPulse(10/1000µs):
30A
Power-PeakPulse:
1500W (1.5kW)
PowerLineProtection:
No
Applications:
General Purpose
Capacitance@Frequency:
-
OperatingTemperature:
-65°C ~ 150°C (TJ)
MountingType:
Surface Mount

SM15T36CA-M3/9AT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SM15T36CA-M3/9AT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SM15T36CA-M3/9AT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SM15T36CA-M3/9AT information

Views：

SM15T36CA-M3/9AT Typical application Circuitry

The SM15T36CA-M3/9AT is a transient voltage suppressor (TVS) diode, primarily used for protecting electronic circuits from voltage spikes and surges. It's crucial in safeguarding sensitive components against electrical overstress (EOS) and electrostatic discharge (ESD). Let's explore its application scenarios, parameter features, and a detailed circuit connection for a specific use case.

1. Function and Application Scenarios: Strong protection against transient voltage occurrences is a feature of the SM15T36CA-M3/9AT. Surge protection is frequently used in industrial equipment, automobile systems, and consumer electronics. It's especially useful in environments where sensitive circuits are exposed to high-energy transients.

2. Parameter Features: This diode offers a stand-off voltage of 36V, with a maximum clamping voltage typically lower than other diodes in its category. Its peak pulse power is significant, capable of handling transient energy effectively. The low incremental surge resistance ensures that the diode responds quickly and efficiently to surges.

3. Circuit Connection for ESD Protection in Consumer Electronics:

- Input Power Line Connection: Connect the cathode (typically the band-marked end) of the SM15T36CA-M3/9AT to the positive side of the power input line. This setup provides the first line of defense against surges coming from the power supply.

- Ground Connection: Attach the anode to the ground line. This connection ensures that when a voltage spike occurs, the excess energy is diverted to the ground, away from the sensitive components.

- Parallel Configuration: It's advisable to connect the diode in parallel with the circuit it's protecting. This ensures that during normal operation, the diode remains inactive and does not affect the circuit's performance.

- Close Proximity to Protected Components: Place the SM15T36CA-M3/9AT as close as possible to the component it's protecting. This minimizes the path length over which the transient can generate harmful currents.

4. Design Considerations:

- Voltage Rating Selection: Ensure the voltage rating of the SM15T36CA-M3/9AT matches the circuit's operating conditions. Overrating can lead to insufficient protection, while underrating can result in the diode breaking down under normal conditions.

- Thermal Considerations: Given that transient events can generate significant heat, consider the thermal limits of the SM15T36CA-M3/9AT and provide adequate heat sinking if necessary.

- Placement and Routing: Careful PCB layout is essential. Minimize trace lengths and avoid creating loops that could act as antennas for picking up additional transients.

To sum up, the SM15T36CA-M3/9AT is an essential part in safeguarding electronic circuits against voltage surges and spikes. Its application in consumer electronics highlights its effectiveness in safeguarding sensitive components from transient voltages. Proper selection, placement, and connection of the SM15T36CA-M3/9AT are vital for optimal protection.
