NXP USA Inc. SC16IS752IPW,128

Part No.:: SC16IS752IPW,128

Manufacturer:: NXP USA Inc.

Package:: 28-TSSOP (0.173, 4.40mm Width)

Datasheet:: SC16IS752IPW,128.pdf

Description:: IC DUAL UART 64BYTE 28TSSOP

In Stock:: 2036

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

SC16IS752IPW,128 Specifications

Package/Case:
28-TSSOP (0.173, 4.40mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
Protocol:
RS232, RS485
Function:
Controller
Interface:
I²C, SPI, UART
Standards:
-
Voltage-Supply:
2.5V, 3.3V
Current-Supply:
2mA
OperatingTemperature:
-40°C ~ 95°C

SC16IS752IPW,128 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including SC16IS752IPW,128 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for SC16IS752IPW,128 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

SC16IS752IPW,128 information

Views：

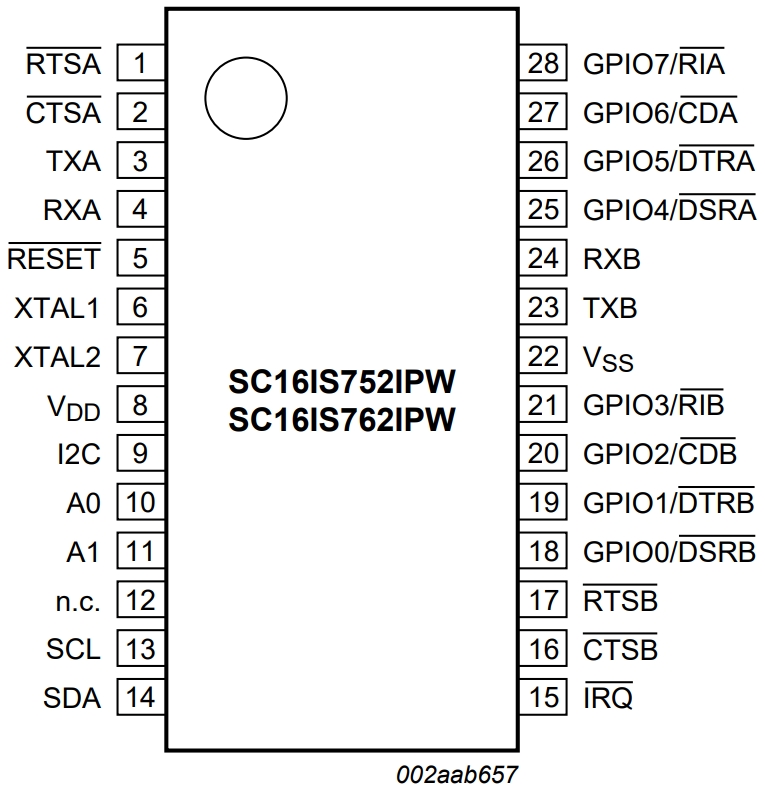

SC16IS752IPW,128 Typical application Circuitry

SC16IS752IPW,128

The SC16IS752IPW,128 is a dual-channel, high-performance UART (Universal Asynchronous Receiver/Transmitter) interface chip. This chip is designed to add additional serial ports to devices using a minimal amount of resources, making it highly suitable for applications that require multiple serial interfaces.

Applications Scenarios:

1. Industrial Automation: It's widely used in industrial automation systems for serial communication.

2. Consumer Electronics: In consumer electronics, it can be used for adding extra serial ports.

3. Automotive: In automotive applications, it serves for diagnostics or communication with onboard systems.

Key Features:

- Dual UART Channels: Offers two independent UART channels.

- Programmable Baud Rate: Can support up to 5 Mbit/s.

- Auto Hardware and Software Flow Control: Provides flexibility in managing data flow.

- I2C/SPI Interface: Facilitates easy connection with microcontrollers.

- Low Power Consumption: Suitable for battery-powered devices.

- 64-Byte FIFO: Each channel has a 64-byte FIFO to reduce CPU load.

Detailed Circuit Connection Example (I2C Interface):

1. Power and Grounding: Connect VCC to 3.3V and GND to the ground.

2. I2C Connection: Connect SDA (Serial Data) and SCL (Serial Clock) to the corresponding I2C bus lines on your microcontroller.

3. UART Connection: Connect TX and RX of the SC16IS752IPW,128 to the device you want to communicate with.

4. Interrupts (Optional): Connect the IRQ pin to an interrupt-capable GPIO on your microcontroller for efficient data handling.

5. Reset Pin: Connect the RESET pin to a GPIO pin for controlled reset operations.

6. Programming Pins (for Firmware Update): Connect TX0, RX0, TX1, and RX1 to the corresponding pins on the UART interface used for firmware updates.

7. Crystal Oscillator: Connect an external crystal oscillator if a specific baud rate that is not supported by the internal oscillator is needed.

8. Flow Control (Optional): If required, connect CTS and RTS pins for hardware flow control.

Design Considerations:

- Power Supply Stability: Ensure a stable power supply to avoid communication errors.

- Interference Minimization: Keep UART lines away from high-frequency traces to minimize interference.

- Pull-up Resistors on I2C Lines: Ensure proper pull-up resistors are used on the SDA and SCL lines.

- Proper Grounding: A solid ground plane helps in reducing noise and interference.

- Baud Rate Matching: Make sure the baud rate of SC16IS752IPW,128 matches the connected devices.

- Firmware Compatibility: Check for compatibility with the firmware and the UART settings.

Incorporating the SC16IS752IPW,128 into a design requires careful planning around these parameters and features to ensure efficient and reliable serial communication.
