Name: S9S12XS256J0VAL
Brand: NXP USA Inc.
SKU: S9S12XS256J0VAL
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

NXP USA Inc. S9S12XS256J0VAL

Part No.:: S9S12XS256J0VAL

Manufacturer:: NXP USA Inc.

Package:: 112-LQFP

Datasheet:

Description:: IC MCU 16BIT 256KB FLASH 112LQFP

In Stock:: 3824

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

S9S12XS256J0VAL Specifications

Package/Case:
112-LQFP
Packaging:
Tray
Series:
HCS12X
RoHS:
RoHS
Speed:
40MHz
RAM Size:
12K x 8
Core Size:
16-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
LVD, POR, PWM, WDT
Connectivity:
CANbus, SCI, SPI
Mounting Type:
Surface Mount
Number of I/O:
91
Core Processor:
HCS12X
Data Converters:
A/D 16x12b
Oscillator Type:
External
Program Memory Size:
256KB (256K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 105°C (TA)

S9S12XS256J0VAL this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including S9S12XS256J0VAL price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for S9S12XS256J0VAL to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

S9S12XS256J0VAL information

Views：

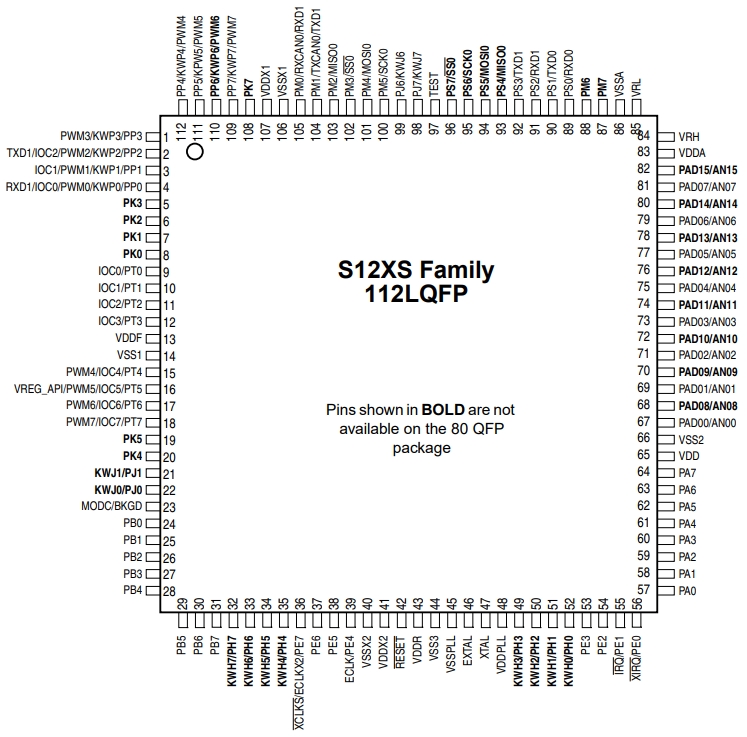

S9S12XS256J0VAL Typical application Circuitry

The S9S12XS256J0VAL is a microcontroller chip developed by NXP Semiconductors. It belongs to the S12X family of 16-bit microcontrollers. This chip offers a wide range of features and capabilities suitable for various applications, especially those that require real-time control and embedded systems. Below, I will provide a detailed circuit connection for an automotive control application using the S9S12XS256J0VAL microcontroller, highlighting some of its key features and considerations.

Application: Automotive Engine Control Unit (ECU)

Key Features of S9S12XS256J0VAL:

1. 16-bit HCS12X CPU core.

2. 256KB Flash memory for program storage.

3. 8KB RAM for data storage.

4. Integrated peripherals, including timers, PWM channels, ADC, SCI (Serial Communication Interface), SPI (Serial Peripheral Interface), and CAN (Controller Area Network) controller.

5. Enhanced EBI (External Bus Interface) for interfacing with external memory.

Circuit Connection:

1. Power Supply:

- Connect Pin 1 (VDD) to the +5V power supply.

- Connect Pin 42 (VSS) to the ground (0V) reference.

2. Clock Configuration:

- Connect an external crystal oscillator (e.g., 8MHz) between Pins 37 (XTAL) and 38 (EXTAL).

- Add two capacitors (typically 10pF) between Pins 37 (XTAL) and ground for stability.

3. Programming and Debugging:

- Pin 2 (BKGD) is used for in-circuit debugging and programming. Connect it to the programming tool (e.g., BDM or JTAG) for code development.

- Pin 3 (RST) is the Reset pin, which should be connected to an external reset circuit if required.

4. Serial Communication (SCI):

- Connect Pins 21 (TXD0) and 22 (RXD0) for UART communication with external devices.

5. CAN Interface (if needed):

- Connect Pins 53 (CANH) and 54 (CANL) for CAN communication.

- Terminate the CAN bus appropriately.

6. Analog-to-Digital Converter (ADC):

- Connect the analog input signals to the desired ADC pins (e.g., Pin 10, AN0).

- Configure the ADC settings in software for signal conversion.

7. External Memory Interface (EBI) (if using external memory):

- Connect Pins 32-49 (address, data, control signals) as per the external memory requirements.

Considerations:

- Proper power supply filtering and decoupling capacitors should be used to ensure stable operation.

- Ensure that the crystal oscillator frequency matches the desired clock speed for the application.

- Configure and initialize the microcontroller's peripherals and ports in software.

- Implement appropriate safety and fault tolerance mechanisms, especially in automotive applications.

- Follow the datasheet and reference manual of the S9S12XS256J0VAL microcontroller for detailed information on pins, electrical characteristics, and timing requirements.
