NXP USA Inc. S9S12G192F0CLLR

Part No.:: S9S12G192F0CLLR

Manufacturer:: NXP USA Inc.

Package:: 100-LQFP

Datasheet:: S9S12G192F0CLLR.pdf

Description:: IC MCU 16BIT 192KB FLASH 100LQFP

In Stock:: 2990

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

S9S12G192F0CLLR Specifications

Package/Case:
100-LQFP
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
HCS12
RoHS:
RoHS
Speed:
25MHz
RAM Size:
11K x 8
Core Size:
16-Bit
EEPROM Size:
4K x 8
Part Status:
Active
Peripherals:
LVD, POR, PWM, WDT
Connectivity:
CANbus, IrDA, LINbus, SCI, SPI
Mounting Type:
Surface Mount
Number of I/O:
86
Core Processor:
12V1
Data Converters:
A/D 16x10b
Oscillator Type:
Internal
Program Memory Size:
192KB (192K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

S9S12G192F0CLLR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including S9S12G192F0CLLR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for S9S12G192F0CLLR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

S9S12G192F0CLLR information

Views：

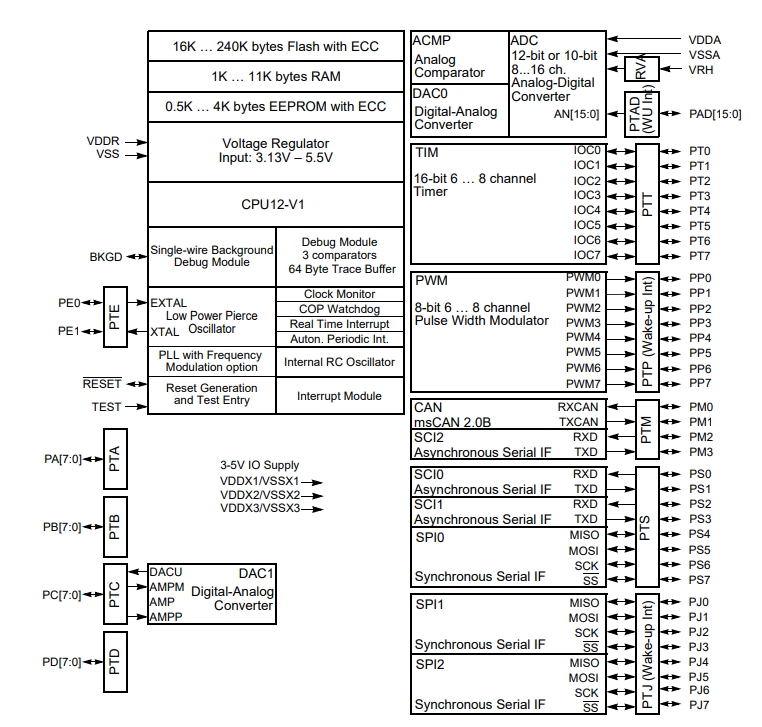

S9S12G192F0CLLR Typical application Circuitry

S9S12G192F0CLLR

The S9S12G192F0CLLR is part of NXP Semiconductors' S12G Family of microcontrollers, which are 16-bit devices designed primarily for use in automotive and complex industrial environments. This model features enhanced memory and input/output capabilities, making it particularly suitable for applications requiring extensive data processing and peripheral interfacing. Below is a detailed setup guide that outlines the crucial connections and configurations necessary for integrating the S9S12G192F0CLLR microcontroller into a system.

1. Power Supply Arrangement:

Provide the S9S12G192F0CLLR with a stable +5V power supply connected to the VDD1 (Pin 1), VDD2 (Pin 48), and VDDX (Pin 95) pins. Ensure that all the corresponding ground pins, VSS1 (Pin 2), VSS2 (Pin 47), and VSSX (Pin 96), are connected to the system's ground. This setup is crucial for maintaining the microcontroller's operational stability.

2. Clock Configuration:

The S9S12G192F0CLLR requires a precise clock for proper timing and control. Connect a 16 MHz crystal to the XTAL (Pin 5) and EXTAL (Pin 6) pins. It's recommended to use load capacitors (around 22 pF) connecting these pins to the ground to stabilize the clock input.

3. Reset Setup:

To ensure that the S9S12G192F0CLLR can be reliably reset, connect the RST pin (Pin 4) to a manual reset button and include a 10 kΩ pull-up resistor to +5V. This allows for manual resetting of the microcontroller whenever necessary.

4. Digital Input/Output Configuration:

The S9S12G192F0CLLR features several digital I/O pins which need to be properly configured based on your application requirements. For instance, set up pins PT0 to PT7 (Pins 10 to 17) according to the needed logic levels and functionalities in your circuit design.

5. Communication Protocol Implementation:

If your application involves communication tasks, utilize the CAN interface by connecting the CAN0TX (Pin 20) and CAN0RX (Pin 19) to a CAN network through an appropriate transceiver. This is essential for enabling communication in vehicle networks or other industrial setups.

6. Analog Inputs:

The microcontroller's analog capabilities can be utilized by connecting sensors to the AN0 to AN11 pins (Pins 21 to 32). Appropriate signal conditioning must be implemented to match these inputs with the ADC's range for accurate measurements.

7. Programming and Debugging:

For software development and maintenance, the BDM (Background Debug Mode) interface is crucial. Connect the BKGD pin (Pin 3) to a BDM pod, alongside connections to VDD and VSS, to provide programming and real-time debugging capabilities.

By following these detailed guidelines, the S9S12G192F0CLLR can be seamlessly integrated into your automotive or industrial project, ensuring optimal performance and reliability. This configuration guide helps in leveraging the full capabilities of the microcontroller to meet the complex demands of modern embedded systems.
