Name: S29GL01GP11FFIR20
Brand: Cypress Semiconductor Corp
SKU: S29GL01GP11FFIR20
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Cypress Semiconductor Corp S29GL01GP11FFIR20

Part No.:: S29GL01GP11FFIR20

Manufacturer:: Cypress Semiconductor Corp

Package:: 64-LBGA

Datasheet:: S29GL01GP11FFIR20.pdf

Description:: IC FLASH 1GBIT PARALLEL 64BGA

In Stock:: 3149

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

S29GL01GP11FFIR20 Specifications

Package/Case:
64-LBGA
Packaging:
Tray
Series:
GL-P
ProductStatus:
Obsolete
MemoryType:
Non-Volatile
MemoryFormat:
FLASH
Technology:
FLASH - NOR
MemorySize:
1Gb (128M x 8)
MemoryInterface:
Parallel
ClockFrequency:
-
WriteCycleTime-WordPage:
110ns
AccessTime:
110 ns
Voltage-Supply:
3V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

S29GL01GP11FFIR20 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including S29GL01GP11FFIR20 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for S29GL01GP11FFIR20 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

S29GL01GP11FFIR20 information

Views：

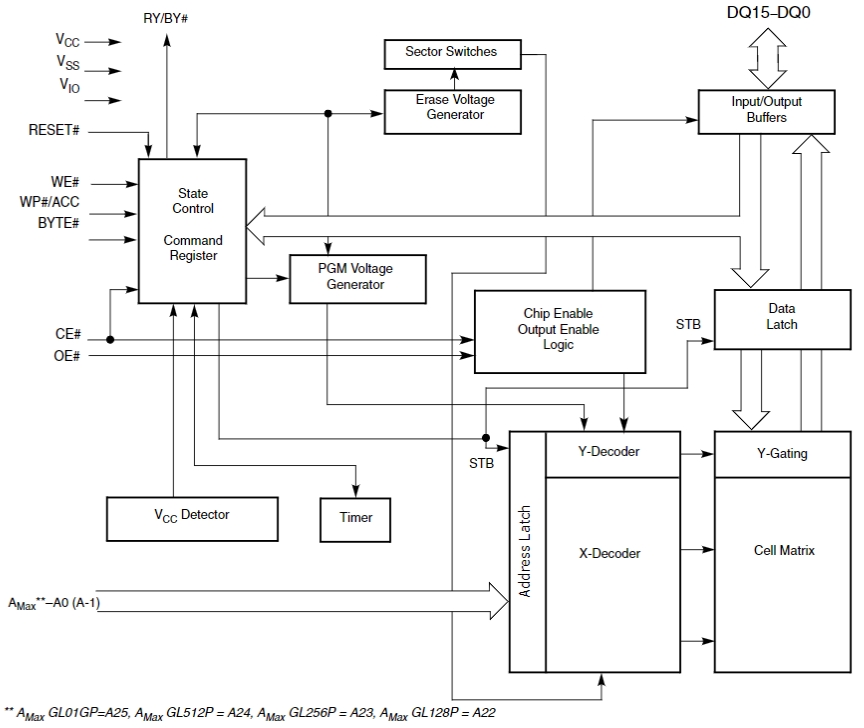

S29GL01GP11FFIR20 Typical application Circuitry

S29GL01GP11FFIR20

The S29GL01GP11FFIR20 is a Serial NOR Flash memory chip, part of the S29GL-P Series from Cypress Semiconductor (now part of Infineon Technologies), designed for high-performance data storage applications. It provides a storage capacity of 1 Gigabit (Gb) and supports a parallel interface for high-speed read and write operations. This chip is optimized for applications requiring large non-volatile storage with quick access times, such as embedded systems, automotive electronics, industrial control systems, telecommunications, and consumer electronics.

Functionality & Application Scenarios

- Embedded Systems: Ideal for storing bootloaders, operating systems, and application software.

- Automotive Electronics: Used to store firmware in electronic control units (ECUs), infotainment systems, and advanced driver assistance systems (ADAS).

- Industrial Controls: For program storage, device configuration, and data logging in automation equipment.

- Telecommunications Equipment: In routers and switches for firmware storage and configuration settings.

- Consumer Electronics: For firmware storage in devices such as digital cameras and smartwatches.

Key Parameters & Features

- 1Gb Storage Capacity: Ample space for complex firmware and data storage.

- Parallel Interface: Supports fast data and address bus communication for high-speed operations.

- High-Speed Read: Enables quick access to stored data, improving device responsiveness.

- Sector Erase & Program: Offers flexible data management and incremental firmware updates.

- Advanced Security Features: Offers choices for safe data protection and storage.

Detailed Application Scenario: Firmware Storage in Embedded Systems

Circuit Connection Detail

Integrating the S29GL01GP11FFIR20 into an embedded system for firmware storage involves specific attention to the memory interface and power supply design to optimize performance and reliability.

1. Parallel Interface Connection

Interface the embedded system's microcontroller or processor with the S29GL01GP11FFIR20's parallel pins. This includes connecting the Address (A[0:n]) and Data (D[0:n]) buses between the memory chip and the microcontroller, as well as control signals such as Chip Enable (CE#), Write Enable (WE#), and Output Enable (OE#). Maintaining short, impedance-controlled traces and ensuring proper bus termination are critical for signal integrity.

2. Power Supply Design

Supply stable power to the VCC pin and ensure a solid ground connection to VSS. It is crucial to use decoupling capacitors close to the power supply pins to reduce noise and encourage stable operation. Ensuring stable power supply conditions is key to reliable memory operation.

3. Write Protection Mechanism

Utilize the Write Protect (WP#) pin for hardware-based write protection, if applicable. This feature can prevent unintended write operations or data corruption, enhancing system reliability. Employing a pull-up or pull-down resistor on the WP# pin can set the default state of write protection according to system requirements.

4. Address and Data Bus Design

Carefully design the S29GL01GP11FFIR20 address and data buses to ensure reliable communication between the memory chip and the microcontroller. This includes considering trace length matching, cross-talk minimization, and proper bus termination to avoid signal reflection and integrity issues.

Design Considerations:

- Data Integrity: Make that stored data is accurate by putting error-checking and correction methods in place, especially for important applications.

- Thermal Management: Consider the S29GL01GP11FFIR20 thermal aspects of the memory chip, especially when operated at high frequencies or in high-temperature environments.

- System Boot Process: Design the S29GL01GP11FFIR20 boot process to efficiently utilize the NOR Flash's fast read capabilities for quick system startup.

- Power Management: Optimize the power supply design for low power consumption, considering the memory's active, standby, and deep power-down modes.

- PCB Layout: Carefully plan the PCB layout to minimize electromagnetic interference (EMI) and ensure signal integrity, focusing on the parallel interface's integrity and power supply decoupling.

Incorporating the S29GL01GP11FFIR20 into an embedded system for firmware storage not only demonstrates the chip's capability to provide large, fast-access non-volatile storage but also highlights the importance of meticulous circuit design and layout considerations to fully leverage the advanced features of this Parallel NOR Flash memory chip.
