What is the Additional Feature ?

Name: S25FL512SAGMFIR13
Brand: Cypress Semiconductor Corp
SKU: S25FL512SAGMFIR13
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Cypress Semiconductor Corp S25FL512SAGMFIR13

Part No.:: S25FL512SAGMFIR13

Manufacturer:: Cypress Semiconductor Corp

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: S25FL512SAGMFIR13.pdf

Description:: IC FLASH 512MBIT SPI/QUAD 16SOIC

In Stock:: 3461

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

S25FL512SAGMFIR13 Specifications

Package/Case:
16-SOIC (0.295, 7.50mm Width)
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
FL-S
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
FLASH
Technology:
FLASH - NOR
MemorySize:
512Mb (64M x 8)
MemoryInterface:
SPI - Quad I/O
ClockFrequency:
133 MHz
WriteCycleTime-WordPage:
-
AccessTime:
-
Voltage-Supply:
2.7V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

S25FL512SAGMFIR13 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including S25FL512SAGMFIR13 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for S25FL512SAGMFIR13 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

S25FL512SAGMFIR13 information

Views：

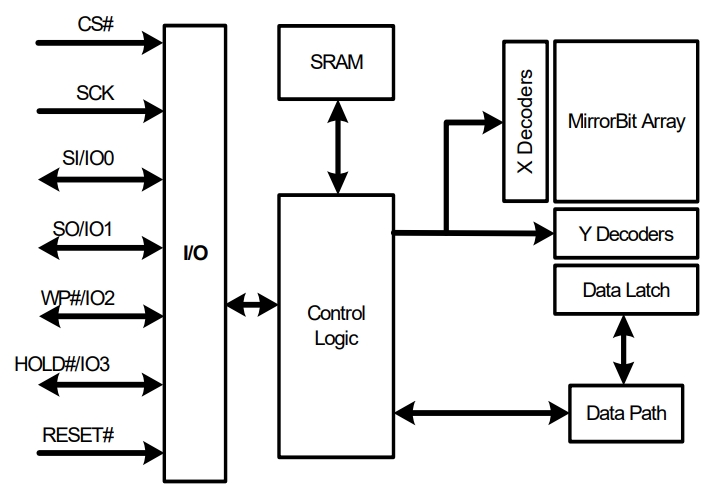

S25FL512SAGMFIR13 Typical application Circuitry

S25FL512SAGMFIR13

High-capacity Serial NOR Flash memory chip S25FL512SAGMFIR13 is intended for use in various electronic applications where rapid and dependable non-volatile storage is required. Manufactured by Cypress Semiconductor (now part of Infineon Technologies), this chip offers 512 Megabits (Mb) of storage capacity and supports various Serial Peripheral Interface (SPI) modes, including Single, Dual, Quad, and Double Data Rate (DDR) Quad SPI.

Functions and Use Cases

- Embedded Systems: Perfect for firmware, operating systems, and application software storage.

- Automotive Electronics: Used in infotainment systems, navigation, and electronic control units (ECUs) for firmware and configuration data storage.

- Industrial Controls: For program storage, device configuration, and extensive data logging in machinery and sensors.

- Consumer Electronics: In digital cameras, smartwatches, and portable media players for firmware storage.

- IoT Devices: For secure storage of firmware updates and operational parameters.

Key Parameters & Features

- 512Mb Storage Capacity: Provides ample space for complex firmware and data storage needs.

- SPI Interface Compatibility: Supports Single, Dual, Quad, and DDR Quad SPI for efficient data transfer.

- High-Speed Read Performance: Enables quick access to stored data, improving device responsiveness.

- Sector Erase & Program Functions: Offers flexible data management and updates.

- Strong security features: guarantees data security and guards against unwanted access.

Detailed Application Scenario: Firmware Storage in Embedded Systems

Circuit Connection Detail

Using the S25FL512SAGMFIR13 for firmware storage within an embedded system design requires detailed planning for effective integration and performance optimization.

1. SPI Bus Interface

Interface the microcontroller with the S25FL512SAGMFIR13's SPI pins. Connect the Serial Clock (SCK), Chip Select (CS), and Serial Data lines (IO0 for SI, IO1 for SO in Single SPI; include IO2 and IO3 for Quad SPI) to the corresponding SPI bus pins on the microcontroller. Ensuring short and direct connections with controlled impedance is essential for signal integrity in high-speed data transfers.

2. Power Supply Configuration

Supply a stable 3.3V (or as specified) to the S25FL512SAGMFIR13 VCC pin and connect VSS to ground. Placing decoupling capacitors near the VCC and VSS pins is critical for filtering noise and stabilizing the power supply, which is vital for reliable memory operation.

3. Write Protection Mechanism

Employ the Write Protect (WP) pin to enable hardware write protection. This can be done by connecting the WP pin to a GPIO pin on the S25FL512SAGMFIR13 microcontroller for software-controlled write protection, adding a layer of data security by preventing unintended write or erase operations.

4. HOLD Pin Utilization

Optionally, use the HOLD pin to pause communication with the Flash memory. For systems with shared SPI buses, this allows pausing Flash operations without resetting the current command sequence, enhancing multi-peripheral bus management. Connecting the HOLD pin through a pull-up resistor to a GPIO pin enables controlled operation.

Design Considerations

- Data Integrity and Security: Implement error-checking and security protocols to safeguard data, particularly in applications where integrity is critical.

- Environmental Considerations: Ensure the Flash memory operates reliably within the application's expected temperature range and conditions.

- Firmware Update Processes: Establish a secure and fail-safe mechanism for OTA firmware updates, including verification steps to mitigate update failures.

- Power Efficiency: Optimize the circuit for low power consumption, leveraging the Flash memory's power-saving features during device inactivity.

- PCB Layout: Minimize electromagnetic interference (EMI) and ensure signal integrity by carefully planning the PCB layout, especially focusing on the SPI communication lines and power supply decoupling strategies.

Integrating the S25FL512SAGMFIR13 into an embedded system for firmware storage demonstrates leveraging advanced Flash memory technology to enhance system reliability, performance, and security. Addressing the outlined design considerations ensures the successful incorporation of this Flash memory chip, supporting sophisticated and high-performing electronic devices.
