What is the Additional Feature ?

Name: S25FL512SAGMFIG10
Brand: Cypress Semiconductor Corp
SKU: S25FL512SAGMFIG10
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Cypress Semiconductor Corp S25FL512SAGMFIG10

Part No.:: S25FL512SAGMFIG10

Manufacturer:: Cypress Semiconductor Corp

Package:: 16-SOIC (0.295, 7.50mm Width)

Datasheet:: S25FL512SAGMFIG10.pdf

Description:: IC FLASH 512MBIT SPI/QUAD 16SOIC

In Stock:: 2021

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

S25FL512SAGMFIG10 Specifications

Package/Case:
16-SOIC (0.295, 7.50mm Width)
Packaging:
Bulk,Tray,Tray
Series:
FL-S
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
FLASH
Technology:
FLASH - NOR
MemorySize:
512Mb (64M x 8)
MemoryInterface:
SPI - Quad I/O
ClockFrequency:
133 MHz
WriteCycleTime-WordPage:
-
AccessTime:
-
Voltage-Supply:
2.7V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

S25FL512SAGMFIG10 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including S25FL512SAGMFIG10 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for S25FL512SAGMFIG10 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

S25FL512SAGMFIG10 information

Views：

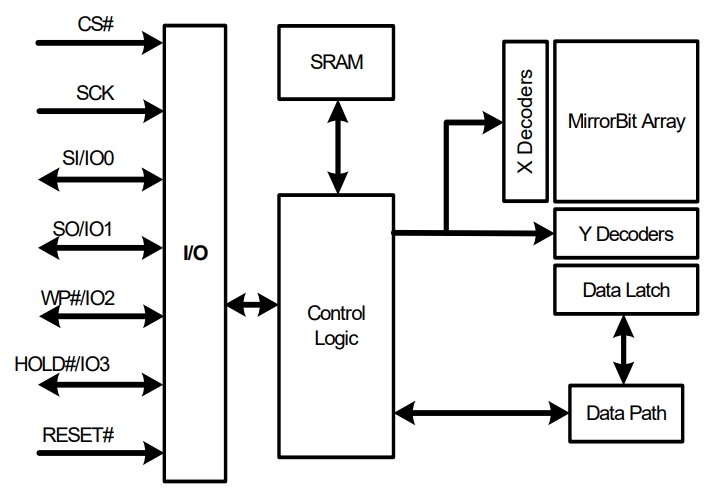

S25FL512SAGMFIG10 Typical application Circuitry

S25FL512SAGMFIG10

The S25FL512SAGMFIG10 is a Serial Peripheral Interface (SPI) NOR Flash memory chip with a large storage capacity of 512 Megabits (Mb). This chip, which is produced by Cypress Semiconductor (now a part of Infineon Technologies), is intended for a broad range of applications requiring dependable, high-speed data storage. It supports various SPI modes, including Single, Dual, Quad, and even Octal SPI for some devices in the family, providing versatile and efficient data transfer capabilities.

Functionality & Application Scenarios

- Embedded Systems: Ideal for storing firmware, bootloaders, and application software.

- Automotive Electronics: Firmware storage in digital dashboards, advanced driver assistance systems, and navigation systems (ADAS).

- Industrial Controls: Used in automation equipment for data logging, configuration data, and program storage.

- Consumer Electronics: In digital cameras, portable media players, and smart devices for firmware and settings storage.

- IoT Devices: For secure storage of firmware updates and operational parameters.

Key Parameters & Features

- 512Mb Storage Capacity: Provides extensive space for firmware and data storage.

- SPI Interface Compatibility: Supports Single, Dual, Quad, and Octal SPI for fast data transfers.

- High-Speed Read Capabilities: Enhances device responsiveness with quick data access.

- Sector Erase & Program: Offers efficient data management and incremental updates.

- Robust Data Retention and Security: Ensures data integrity over extended periods.

Detailed Application Scenario: Firmware Storage in IoT Devices

Circuit Connection Detail

Integrating the S25FL512SAGMFIG10 for firmware storage within an IoT device requires meticulous planning to ensure optimal performance and reliability.

1. SPI Communication Interface

Connect the chip's SPI interface pins to the IoT device's microcontroller. This involves wiring the Serial Clock (SCK), Chip Select (CS), and Serial Data lines (IO0 for SI, IO1 for SO in Single SPI; IO2 and IO3 for Dual and Quad SPI) to the corresponding SPI bus pins on the microcontroller. For enhanced data transfer speeds, especially in Quad SPI mode, maintaining short and direct connections is crucial to prevent signal degradation.

2. Power Supply Considerations

Ensure a stable power connection to the VCC pin and a secure ground connection to VSS. Placing decoupling capacitors near these pins is critical for filtering out voltage spikes and noise, promoting stable Flash operation. It's essential to monitor power supply stability to avoid potential data corruption.

3. Write Protection Implementation

Utilize the Write Protect (WP) pin for hardware-based write protection. This feature can be dynamically controlled by connecting the WP pin to a GPIO on the microcontroller, offering protection against unintended write operations. Employing a pull-up resistor ensures the Flash memory defaults to a write-protected state unless explicitly disabled.

4. HOLD Pin Functionality

Optionally, use the HOLD pin to pause communication without resetting the SPI command sequence. In systems with shared SPI buses, this allows other devices to communicate without disrupting ongoing transactions with the Flash memory. Connecting the HOLD pin through a pull-up resistor to a GPIO enables controlled pausing of operations.

Design Considerations

- Data Integrity and Security: Implement error-checking and encryption techniques to safeguard critical data, particularly in IoT applications where security is paramount.

- Environmental Adaptability: Account for the operational temperature range and environmental stressors, ensuring the S25FL512SAGMFIG10 meets the application's robustness requirements.

- Firmware Update Processes: Design a secure and reliable mechanism for OTA firmware updates, incorporating verification and rollback capabilities to handle update failures.

- Power Efficiency: Optimize the circuit for low power consumption, taking advantage of the Flash memory's power-saving modes during device inactivity.

- PCB Layout and Signal Integrity: Carefully plan the PCB layout to minimize electromagnetic interference (EMI) and ensure stable communication, particularly when operating in high-speed Quad or Octal SPI modes.

Incorporating the S25FL512SAGMFIG10 into an IoT device for firmware storage highlights the Flash memory's capacity to support complex, high-capacity applications. By addressing the design considerations outlined above, developers can leverage the advanced features of the S25FL512SAGMFIG10 to enhance the performance, reliability, and security of IoT devices.
