Cypress Semiconductor Corp S25FL512SAGBHIA13

Part No.:: S25FL512SAGBHIA13

Manufacturer:: Cypress Semiconductor Corp

Package:: 24-TBGA

Datasheet:: S25FL512SAGBHIA13.pdf

Description:: IC FLASH 512MBIT SPI/QUAD 24BGA

In Stock:: 3425

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

S25FL512SAGBHIA13 Specifications

Package/Case:
24-TBGA
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
FL-S
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
FLASH
Technology:
FLASH - NOR
MemorySize:
512Mb (64M x 8)
MemoryInterface:
SPI - Quad I/O
ClockFrequency:
133 MHz
WriteCycleTime-WordPage:
-
AccessTime:
-
Voltage-Supply:
2.7V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

S25FL512SAGBHIA13 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including S25FL512SAGBHIA13 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for S25FL512SAGBHIA13 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

S25FL512SAGBHIA13 information

Views：

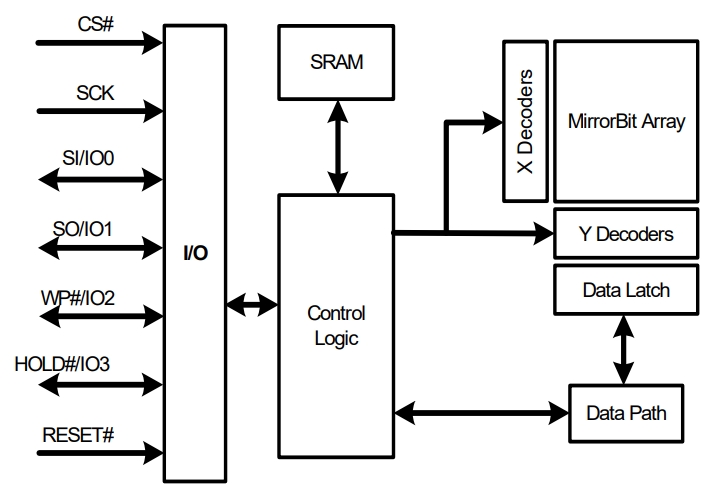

S25FL512SAGBHIA13 Typical application Circuitry

S25FL512SAGBHIA13

The S25FL512SAGBHIA13 is a high-capacity, high-performance Serial NOR Flash memory chip produced by Cypress Semiconductor (now part of Infineon Technologies). It offers a storage capacity of 512 Megabits (Mb), making it suitable for applications that demand significant amounts of non-volatile storage. The chip supports a wide range of Serial Peripheral Interface (SPI) modes, including Single SPI, Dual SPI, Quad SPI (QSPI), and Octal SPI, providing flexible and fast data transfer capabilities.

Functionality & Application Scenarios

- Embedded Systems: For storing firmware, bootloaders, and application code.

- Automotive Electronics: Used in entertainment, navigation, and advanced driver assistance systems (ADAS).

- Industrial Control Systems: Used to store control algorithms in equipment and sensors and log data.

- Consumer electronics: This includes gadgets like portable media players, smartwatches, and digital cameras.

- IoT Devices: For firmware updates and configuration storage, especially in devices that require OTA updates.

Key Parameters & Features

- 512Mb Storage Capacity: Provides extensive storage for complex applications.

- SPI Interface: Supports a range of SPI modes for versatile and efficient communication.

- High-Speed Read Performance: Ensures quick access to data, improving device responsiveness.

- Sector Erase & Program Functions: Facilitates flexible data management and updates.

- Energy Efficiency: Designed for low power consumption, enhancing battery life in portable devices.

Detailed Application Scenario: Firmware Storage in Automotive Electronics

Circuit Connection Detail

Integrating the S25FL512SAGBHIA13 into an automotive electronics system for firmware storage involves meticulous planning to ensure reliability and performance.

1. SPI Communication Interface

Connect the S25FL512SAGBHIA13's SPI interface to the automotive system's microcontroller. This includes wiring the Serial Clock (SCK), Chip Select (CS), and Serial Data (SDI, SDO for Single and Dual SPI; adding DIO2 and DIO3 for Quad SPI) pins to the corresponding SPI bus pins on the microcontroller.Signal integrity at high data speeds requires short, impedance-controlled lines.

2. Power Supply Design

Provide a stable 3.3V or as specified by the datasheet to the VCC pin and connect VSS to ground. Utilizing decoupling capacitors near the VCC and VSS pins is essential to filter out voltage spikes and noise, ensuring stable operation. Monitoring power supply stability is vital to avoid data corruption.

3. Write Protection Configuration

If necessary, use the Write Protect (WP) pin to enable hardware-based write protection. This can be achieved by connecting the WP pin to a GPIO on the microcontroller for dynamic control, safeguarding against unintended write operations. Employing a pull-up resistor may be used to ensure a default protected state.

4. HOLD Pin Usage

Optionally, utilize the HOLD pin to pause communication without resetting the SPI command sequence. This feature is beneficial in systems with shared SPI buses. The HOLD pin can be connected through a pull-up resistor to VCC if not used, or to a GPIO for active control. Ensuring proper use of the HOLD feature can enhance multi-peripheral SPI bus management.

Design Considerations

- Data Integrity: Implement error-checking mechanisms to safeguard data integrity, crucial in automotive applications where data corruption can lead to system failures.

- Environmental Conditions: Account for the automotive operating temperature range and exposure to harsh conditions, ensuring the S25FL512SAGBHIA13 meets the application's durability requirements.

- Firmware Update Strategy: Develop a secure and reliable system for firmware updates, considering rollback mechanisms for update failures.

- Power Management: Optimize the circuit for low power consumption, utilizing the Flash memory's deep power-down modes when the device is inactive.

- PCB Layout: It is crucial to carefully plan the PCB layout to reduce electromagnetic interference (EMI) and guarantee robust communication, particularly in the electrically loud automotive applications environment.

Incorporating the S25FL512SAGBHIA13 into an automotive electronics system for firmware storage showcases its capability to provide reliable, high-speed non-volatile storage. Addressing the highlighted design considerations ensures the Flash memory integrates seamlessly, supporting the system's performance and safety requirements.
