What is the Additional Feature ?

Name: S25FL128SAGNFI000
Brand: Cypress Semiconductor Corp
SKU: S25FL128SAGNFI000
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

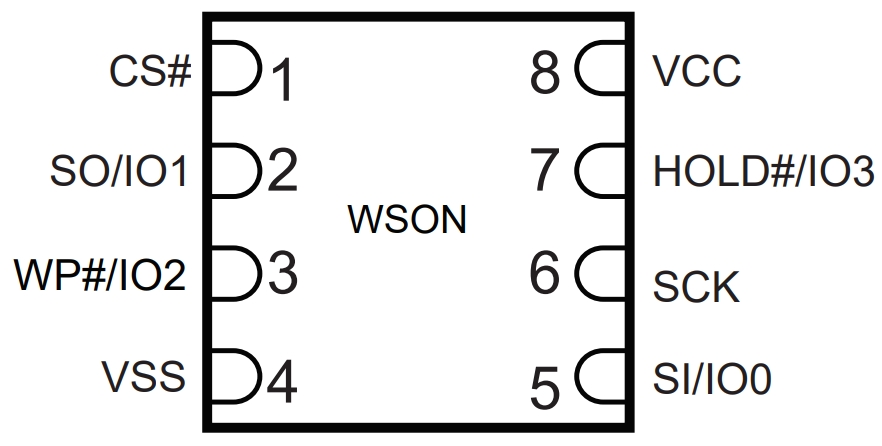

lmages are for reference only See Product Specifications

Cypress Semiconductor Corp S25FL128SAGNFI000

Part No.:: S25FL128SAGNFI000

Manufacturer:: Cypress Semiconductor Corp

Package:: 8-WDFN Exposed Pad

Datasheet:: S25FL128SAGNFI000.pdf

Description:: IC FLASH 128MBIT SPI/QUAD 8WSON

In Stock:: 2699

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

S25FL128SAGNFI000 Specifications

Package/Case:
8-WDFN Exposed Pad
Packaging:
Tray
Series:
FL-S
ProductStatus:
Active
MemoryType:
Non-Volatile
MemoryFormat:
FLASH
Technology:
FLASH - NOR
MemorySize:
128Mb (16M x 8)
MemoryInterface:
SPI - Quad I/O
ClockFrequency:
133 MHz
WriteCycleTime-WordPage:
-
AccessTime:
-
Voltage-Supply:
2.7V ~ 3.6V
OperatingTemperature:
-40°C ~ 85°C (TA)
MountingType:
Surface Mount

S25FL128SAGNFI000 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including S25FL128SAGNFI000 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for S25FL128SAGNFI000 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

S25FL128SAGNFI000 information

Views：

S25FL128SAGNFI000 Typical application Circuitry

S25FL128SAGNFI000

The S25FL128SAGNFI000 is a flash memory chip manufactured by Cypress Semiconductor Corporation. This chip is commonly used for data storage and retrieval in various electronic devices. Its key features include high storage capacity, fast read and write speeds, and reliability. Below, I'll provide a detailed circuit connection example for a typical application using the S25FL128SAGNFI000 flash memory chip, along with the considerations during the design process.

Application Scenario: Data Logging System using S25FL128SAGNFI000

In this application, we will design a data logging system that uses the S25FL128SAGNFI000 flash memory chip to store data collected from various sensors. This system is commonly used in IoT devices, industrial automation, and other applications that require long-term data storage.

Circuit Connection:

1. Microcontroller (MCU) Connection:

- Connect the SPI interface of the MCU to the S25FL128SAGNFI000 as follows:

- MCU MOSI (Master Out Slave In) to S25FL128SAGNFI000 SI (Serial Input)

- MCU MISO (Master In Slave Out) to S25FL128SAGNFI000 SO (Serial Output)

- MCU SCK (Serial Clock) to S25FL128SAGNFI000 SCK (Serial Clock)

- MCU CS (Chip Select) to S25FL128SAGNFI000 CS (Chip Select)

2. Power Supply:

- Connect the power supply to the S25FL128SAGNFI000 chip:

- VCC (3.3V) to S25FL128SAGNFI000 VCC

- GND to S25FL128SAGNFI000 GND

3. Control Lines:

- Connect control lines for various operations:

- Hold# and WP# (Write Protect) can be connected to the MCU GPIO pins for control, or pulled to VCC/GND based on your write protection requirements.

4. Programming/Updating:

- For programming or updating data to the flash memory, follow these steps:

- Pull CS low to enable the chip.

- Send the Write Enable (WREN) command to the chip.

- Provide the address where you want to write data.

- Send the data to be written.

- Pull CS high to disable the chip.

Design Considerations:

1. Voltage Levels: Ensure that the voltage levels of the MCU and the S25FL128SAGNFI000 are compatible (typically 3.3V).

2. Clock Speed: Choose an appropriate SPI clock speed based on the S25FL128SAGNFI000's maximum supported frequency.

3. Write Protection: Decide whether you want to use the write protect (WP#) feature and configure it accordingly.

4. Data Erasure: Understand the S25FL128SAGNFI000's erase options (sector or bulk erase) and plan your data management accordingly.

5. Data Organization: Define a data organization structure in the flash memory, including sector allocation and addressing scheme.

6. Error Handling: To guarantee data integrity during read and write operations, put error-checking procedures in place.

7. Power Management: Consider power-saving modes and techniques to extend the flash memory's lifespan and reduce power consumption.

In summary, the S25FL128SAGNFI000 flash memory chip is a versatile component used for data storage in various applications. When designing a circuit with this chip, it's essential to pay attention to voltage levels, clock speed, write protection, data organization, error handling, and power management. Your data logging system's dependability and functionality will be enhanced by taking these factors into account.
