Richtek USA Inc. RT9193-18GB

Part No.:: RT9193-18GB

Manufacturer:: Richtek USA Inc.

Package:: SC-74A, SOT-753

Datasheet:: RT9193-18GB.pdf

Description:: IC REG LINEAR 1.8V 300MA SOT23-5

In Stock:: 41875

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

RT9193-18GB Specifications

Package/Case:
SC-74A, SOT-753
Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
-
ProductStatus:
Active
OutputConfiguration:
Positive
OutputType:
Fixed
NumberofRegulators:
1
Voltage-Input(Max):
5.5V
Voltage-Output(Min/Fixed):
1.8V
Voltage-Output(Max):
-
VoltageDropout(Max):
-
Current-Output:
300mA
Current-Quiescent(Iq):
130 µA
Current-Supply(Max):
-
PSRR:
70dB ~ 50dB (100Hz ~ 10kHz)
ControlFeatures:
Enable
ProtectionFeatures:
Over Current, Over Temperature
OperatingTemperature:
-40°C ~ 125°C
MountingType:
Surface Mount

RT9193-18GB this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including RT9193-18GB price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for RT9193-18GB to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

RT9193-18GB information

Views：

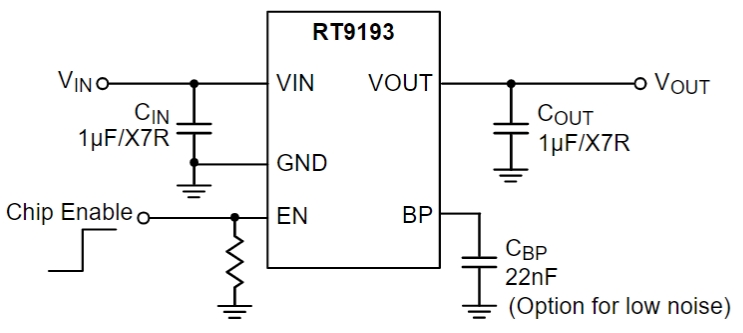

RT9193-18GB Typical application Circuitry

RT9193-18GB

RT9193-18GB is a low dropout (LDO) linear voltage regulator. This type of component is designed to maintain a constant output voltage while providing excellent power supply rejection and low noise, making it ideal for sensitive electronic circuits.

Application Scenarios of RT9193-18GB

RT9193-18GB is commonly used in battery-powered devices, microcontroller power supplies, and any electronic system requiring a stable and noise-free power supply, like RF circuits, portable audio devices, and medical equipment.

Parameter Features of RT9193-18GB

- Fixed Output Voltage: Typically provides a fixed 1.8V output.

- Low Dropout Voltage: Effective in situations where the input and output voltages are almost equal.

- High Output Accuracy: Provides reliable operation.

- Low Quiescent Current: Perfect for devices that run on batteries.

Specific Circuit Connection Example

Using RT9193-18GB in a microcontroller power supply circuit:

1. Input Voltage Connection: Connect the Vin pin (Input, typically pin 1) to a power source, like a battery or another regulated supply. The input voltage should be slightly higher than 1.8V, considering the low dropout nature of RT9193-18GB.

2. Ground Connection: Connect the GND pin (Ground, typically pin 2) to the system ground. This is necessary for the LDO's stability.

3. Output Voltage: The Vout pin (Output, typically pin 3) provides the regulated 1.8V. This should be connected to the power input of the microcontroller or other sensitive electronic components.

4. Bypass Capacitors: Place a bypass capacitor (typically in the range of 1µF to 10µF) close to the Vin and Vout pins to smooth out any input voltage fluctuations and stabilize the output voltage.

Design Considerations of RT9193-18GB

- Input Voltage Range: Ensure the input voltage always exceeds the output voltage by at least the dropout voltage of RT9193-18GB.

- Thermal Management: Consider heat dissipation, as LDO regulators can dissipate heat under high load conditions.

- Load Current: The load current must not be greater than the RT9193-18GB maximum current rating.

- PCB Layout: Minimize the length of traces connected to the LDO to reduce noise and improve stability.

Incorporating RT9193-18GB in microcontroller circuits or other sensitive electronics leverages its ability to provide a stable and clean power supply, crucial for the reliable operation of these systems.
