Renesas Electronics America Inc R5F100PGAFB#10

Part No.:: R5F100PGAFB#10

Manufacturer:: Renesas Electronics America Inc

Package:: 100-LQFP

Datasheet:: R5F100PGAFB#10.pdf

Description:: IC MCU 16BIT 128KB FLSH 100LFQFP

In Stock:: 2013

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

R5F100PGAFB#10 Specifications

Package/Case:
100-LQFP
Packaging:
Tray
Series:
RL78/G13
RoHS:
RoHS
Speed:
32MHz
RAM Size:
12K x 8
Core Size:
16-Bit
EEPROM Size:
8K x 8
Part Status:
Active
Peripherals:
DMA, LVD, POR, PWM, WDT
Connectivity:
CSI, I²C, LINbus, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
82
Core Processor:
RL78
Data Converters:
A/D 20x8/10b
Oscillator Type:
Internal
Program Memory Size:
128KB (128K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

R5F100PGAFB#10 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including R5F100PGAFB#10 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for R5F100PGAFB#10 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

R5F100PGAFB#10 information

Views：

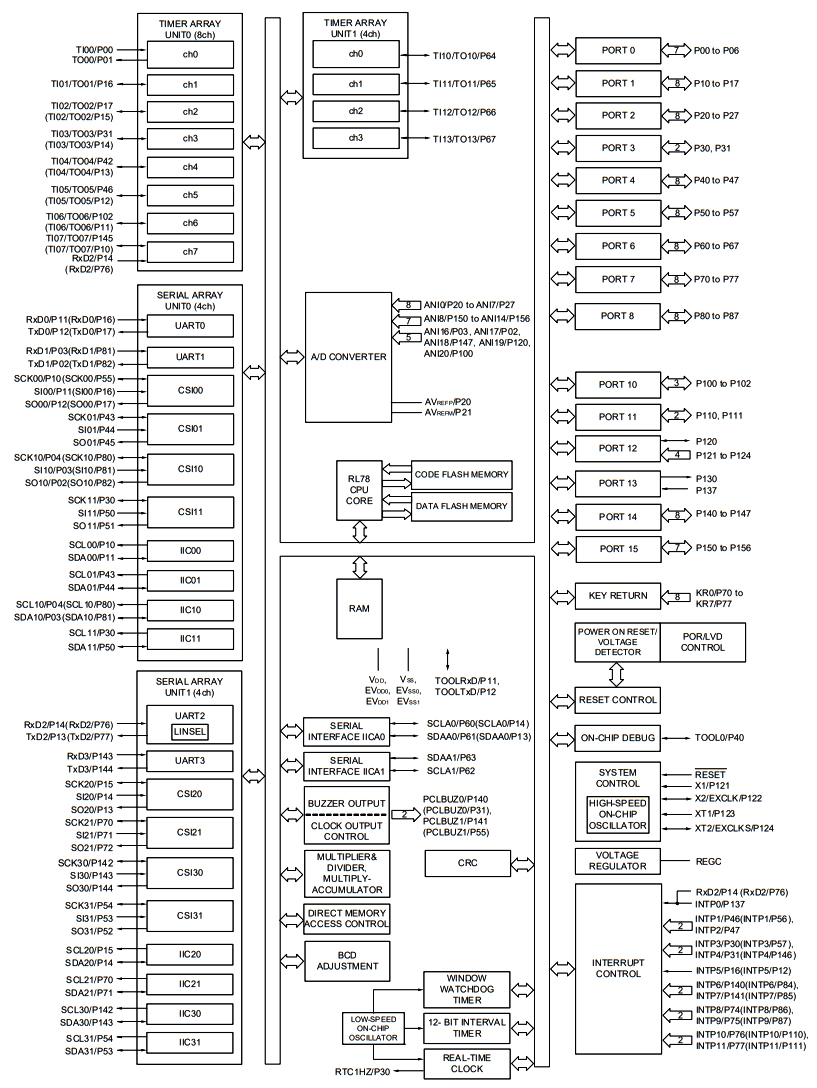

R5F100PGAFB#10 Typical application Circuitry

R5F100PGAFB 10

The R5F100PGAFB#10 is a specific microcontroller within the RL78/G1x series by Renesas Electronics, characterized by its exceptional energy efficiency, robust peripheral integration, and adaptability to a myriad of application scenarios.

Key Characteristics of RL78 Microcontrollers (Like R5F100PGAFB#10):

- Power Efficiency: Designed with power-saving in mind, they feature several operational modes to minimize energy consumption effectively.

- Integrated Peripherals: Outfitted with a comprehensive set of built-in peripherals, including Analog-to-Digital Converters (ADCs), timers, and communication interfaces such as UART, SPI, and I2C, enabling the creation of complex systems with fewer external parts.

- Optimal Performance: They offer a balanced mix of processing power and energy efficiency, supported by an extensive instruction set designed for a wide range of tasks.

- Substantial Flash Memory: Equipped with generous on-chip flash memory, facilitating efficient application development and straightforward firmware updates.

Application Scenario: Handheld Medical Diagnostic Device

A Handheld Medical Diagnostic Device utilizing the R5F100PGAFB#10 can serve as an excellent example to illustrate its capabilities, detailing the connectivity and design considerations.

1. Core Controller:

The R5F100PGAFB#10 functions as the central processor, handling data from various medical sensors and interfacing with both the user and external devices.

2. Sensor Connectivity:

Medical sensors, such as pulse oximeters and temperature sensors, are connected to the R5F100PGAFB#10. These could utilize the MCU's ADC inputs for analog sensors and GPIO pins for digital sensors, facilitating comprehensive health monitoring.

3. Display Interface:

A compact LCD or OLED display, connected via SPI or I2C (using pins like P4.0 for SCL and P4.1 for SDA for I2C), presents health metrics and device statuses to the user in real-time.

4. Wireless Data Transmission:

For remote monitoring and data logging, a Bluetooth LE module interfaced through UART (connecting to pins such as P3.5 for TX and P3.6 for RX) enables efficient wireless communication with smartphones or cloud databases.

5. Power Management:

Leveraging the R5F100PGAFB#10's low-power modes is crucial for maximizing battery life, an essential feature for portable medical devices.

6. Programming and Debugging Interface:

Programming the microcontroller typically involves connections for power (Vcc, GND), a RESET pin, and serial communication pins for data transmission, facilitating firmware updates and debugging.

Design Considerations:

- Accuracy of Sensors: Selecting high-precision sensors is vital for reliable medical diagnostics.

- User Interface: Designing an intuitive and easy-to-navigate interface on the device display, ensuring critical health information is readily accessible.

- Secure Data Transmission: Implementing robust encryption for wireless communication to protect sensitive health data.

- Durability and Portability: Ensuring the device is both durable and lightweight, suitable for everyday carry by patients or healthcare professionals.

- Regulatory Compliance: Adhering to medical device regulations and standards for safety and efficacy.

This scenario highlights how the R5F100PGAFB#10's integration capabilities, efficient power management, and processing power make it an ideal choice for developing compact, reliable, and efficient medical diagnostic tools that require real-time data processing, user interaction, and wireless communication.
