Renesas Electronics America Inc PS2801-4-A

Part No.:: PS2801-4-A

Manufacturer:: Renesas Electronics America Inc

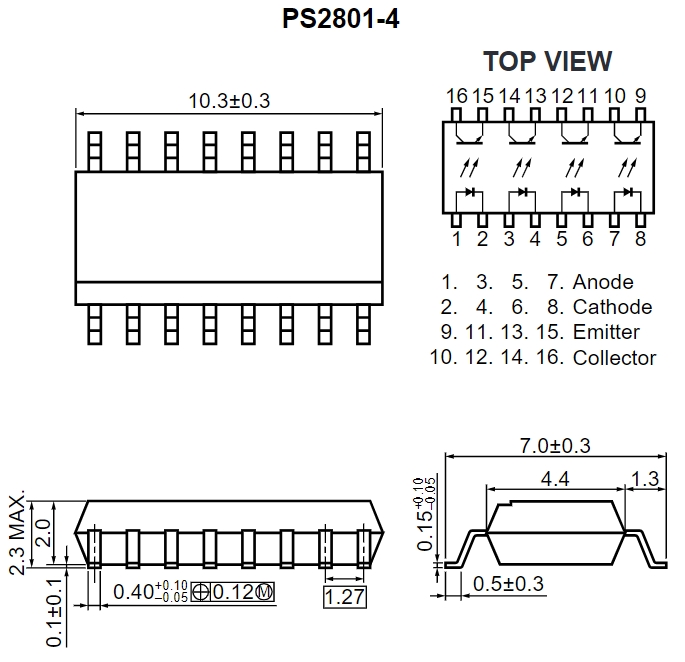

Package:: 16-SOIC (0.173, 4.40mm Width)

Datasheet:: PS2801-4-A.pdf

Description:: OPTOISO 2.5KV 4CH TRANS 16-SSOP

In Stock:: 3491

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PS2801-4-A Specifications

Packaging:
Strip
Series:
-
ProductStatus:
Not For New Designs
NumberofChannels:
4
Voltage-Isolation:
2500Vrms
CurrentTransferRatio(Min):
80% @ 5mA
CurrentTransferRatio(Max):
600% @ 5mA
TurnOn/TurnOffTime(Typ):
6µs, 5µs
Rise/FallTime(Typ):
3µs, 5µs
InputType:
DC
OutputType:
Transistor
Voltage-Output(Max):
80V
Current-Output/Channel:
50mA
Voltage-Forward(Vf)(Typ):
1.1V
Current-DCForward(If)(Max):
50 mA
VceSaturation(Max):
300mV
OperatingTemperature:
-55°C ~ 100°C
MountingType:
Surface Mount

PS2801-4-A this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PS2801-4-A price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PS2801-4-A to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PS2801-4-A information

Views：

PS2801-4-A Typical application Circuitry

PS2801-4-A

The PS2801-4-A is a high isolation voltage, quad optocoupler. Optocouplers, sometimes referred to as opto-isolators, are parts that communicate electrical signals between two isolated circuits by light. Each of the four optically isolated channels on the PS2801-4-A is made up of a phototransistor and a gallium arsenide infrared LED.

Application Scenarios:

Optocouplers like the PS2801-4-A are used in a variety of applications where signal transfer needs electrical isolation. Common scenarios include industrial control systems, power supply circuits, digital telecommunications, and signal transmission between different voltage domains.

Key Parameter Features:

- Isolation Voltage: Typically up to several thousand volts (3750Vrms for PS2801-4-A).

- Current Transfer Ratio (CTR): Ratio of output current to input current, indicative of the efficiency of the optocoupling process.

- Propagation Delay: The amount of time an optocoupler needs to process a signal.

- Package: Surface-mount package options are available, allowing for compact circuit designs.

Circuit Connection Example – Isolated UART Communication:

Power Supply for LEDs:

The anodes of the infrared LEDs (pins 1, 3, 5, and 7) should be connected to a positive power supply through current-limiting resistors, while the cathodes (pins 2, 4, 6, and 8) are connected to the transmitting UART lines.

Phototransistor Output:

The collectors of the phototransistors (pins 11, 13, 15, and 17) are connected to a positive supply voltage, while the emitters (pins 12, 14, 16, and 18) will be connected to the receiving UART lines through pull-down resistors.

Current-Limiting Resistors:

Place current-limiting resistors in series with the LEDs to prevent exceeding the maximum forward current rating.

Input Signal:

The input UART signals are to be connected to the anodes of the LEDs through series resistors, ensuring the forward voltage and current are within the specified limits of the PS2801-4-A.

Pull-down Resistors:

Connect pull-down resistors to the emitters of the phototransistors to establish a low level when the LED is off.

Design Considerations:

- Isolation Requirements: Verify that the working voltage and transient overvoltage conditions are within the isolation specifications of the PS2801-4-A.

- Data Rate: Ensure the propagation delay of the PS2801-4-A is suitable for the UART communication speed.

- Power Dissipation: Consider the power dissipation across the current-limiting resistors and ensure it is within safe limits.

- Ambient Light: Shield the optocoupler from ambient light to prevent erroneous signals.

- Temperature: Be aware of the operating temperature range and derating factors for the PS2801-4-A.

Incorporating the PS2801-4-A into an isolated UART communication circuit demonstrates the device's ability to provide electrical isolation while maintaining signal integrity across different voltage domains. Utilizing the PS2801-4-A ensures that communication between parts of a system is both safe and reliable, especially in environments where electrical isolation is paramount.
