CEL PS2801-4

Part No.:: PS2801-4

Manufacturer:: CEL

Package:: 16-SOIC (0.173, 4.40mm Width)

Datasheet:: PS2801-4.pdf

Description:: OPTOISO 2.5KV 4CH TRANS 16-SSOP

In Stock:: 2789

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PS2801-4 Specifications

Packaging:
Bulk
Series:
-
ProductStatus:
Obsolete
NumberofChannels:
4
Voltage-Isolation:
2500Vrms
CurrentTransferRatio(Min):
80% @ 5mA
CurrentTransferRatio(Max):
600% @ 5mA
TurnOn/TurnOffTime(Typ):
6µs, 5µs
Rise/FallTime(Typ):
3µs, 5µs
InputType:
DC
OutputType:
Transistor
Voltage-Output(Max):
80V
Current-Output/Channel:
50mA
Voltage-Forward(Vf)(Typ):
1.1V
Current-DCForward(If)(Max):
50 mA
VceSaturation(Max):
300mV
OperatingTemperature:
-55°C ~ 100°C
MountingType:
Surface Mount

PS2801-4 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PS2801-4 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PS2801-4 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PS2801-4 information

Views：

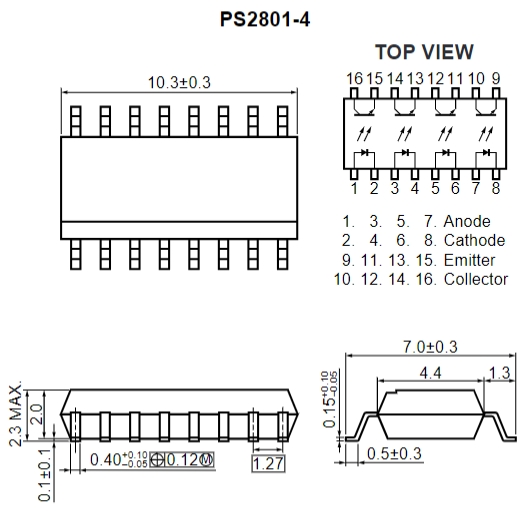

PS2801-4 Typical application Circuitry

PS2801-4

The PS2801-4 is a high isolation voltage, quad optocoupler, which contains four optically isolated channels. Each channel comprises a phototransistor that is optically coupled to an infrared-emitting diode. This type of chip is used to transmit signals between different voltage potentials and impedances while maintaining electrical isolation.

Application Scenarios:

Optocouplers like the PS2801-4 are commonly used in digital signal isolation, signal level shifting, line receivers, power supply regulators, and microprocessor system interfaces. They're particularly critical in situations where high-voltage insulation is necessary, such as in switching power supplies and motor control systems.

Key Parameter Features:

The PS2801-4 offers a high isolation voltage (usually around 5,000V RMS), fast switching speeds, and a small package footprint. Each channel can typically operate with a forward diode current of about 5mA and a collector-emitter voltage of around 35V, with a current transfer ratio (CTR) that is adequate for many low-power applications.

Circuit Connection Example – Microcontroller Interface Circuit:

Infrared Emitting Diode Forward Connection:

- Pin 1 (Anode) and Pin 2 (Cathode) of the first channel are connected to a GPIO pin of the microcontroller and ground, respectively, through a current limiting resistor to control the forward current of the diode.

Phototransistor Output Connection:

- Pin 4 (Emitter) of the first channel is connected to the ground, and Pin 3 (Collector) is connected to the input of the next stage in the circuit, which could be another integrated circuit or a microcontroller pin. A pull-up resistor is typically added between the collector and the supply voltage.

Optical Isolation:

- The physical gap between the diode and phototransistor inside the PS2801-4 chip ensures electrical isolation between the input and output, thereby protecting the low-voltage side from high-voltage transients.

Power Supply Considerations:

- Separate power supplies may be used for the diode and phototransistor sides to maintain isolation. The voltage levels should match the requirements of the microcontroller and the PS2801-4.

Design Considerations:

- Current Limiting Resistor: Calculate the value to limit the forward current of the diode within specifications.

- Input-Output Isolation: Verify that the working voltage and transient voltage spikes do not exceed the isolation rating of the PS2801-4.

- Speed Requirements: Consider the switching speed of the PS2801-4 and ensure it aligns with the signaling speed requirements of your application.

- Output Pull-up Resistor: Choose a pull-up resistor value that allows the phototransistor to saturate when active and provides the correct logic level when inactive.

Using the PS2801-4 in a microcontroller interface circuit underscores its capacity to interface digital signals across varying voltage domains safely. Adhering to the PS2801-4's specified parameters allows for tailored solutions that mitigate risks associated with electrical isolation challenges in sensitive electronic systems.
