What is the Additional Feature ?

Name: PS2801-1-V-F3-P-A
Brand: Renesas Electronics America Inc
SKU: PS2801-1-V-F3-P-A
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Renesas Electronics America Inc PS2801-1-V-F3-P-A

Part No.:: PS2801-1-V-F3-P-A

Manufacturer:: Renesas Electronics America Inc

Package:: 4-SOIC (0.173, 4.40mm Width)

Datasheet:

Description:: OPTOISOLATOR 2.5KV TRANS 4-SSOP

In Stock:: 2839

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PS2801-1-V-F3-P-A Specifications

Packaging:
Tape & Reel (TR)
Series:
-
ProductStatus:
Active
NumberofChannels:
1
Voltage-Isolation:
2500Vrms
CurrentTransferRatio(Min):
150% @ 5mA
CurrentTransferRatio(Max):
300% @ 5mA
TurnOn/TurnOffTime(Typ):
6µs, 5µs
Rise/FallTime(Typ):
3µs, 5µs
InputType:
DC
OutputType:
Transistor
Voltage-Output(Max):
80V
Current-Output/Channel:
50mA
Voltage-Forward(Vf)(Typ):
1.1V
Current-DCForward(If)(Max):
50 mA
VceSaturation(Max):
300mV
OperatingTemperature:
-55°C ~ 100°C
MountingType:
Surface Mount

PS2801-1-V-F3-P-A this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PS2801-1-V-F3-P-A price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PS2801-1-V-F3-P-A to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PS2801-1-V-F3-P-A information

Views：

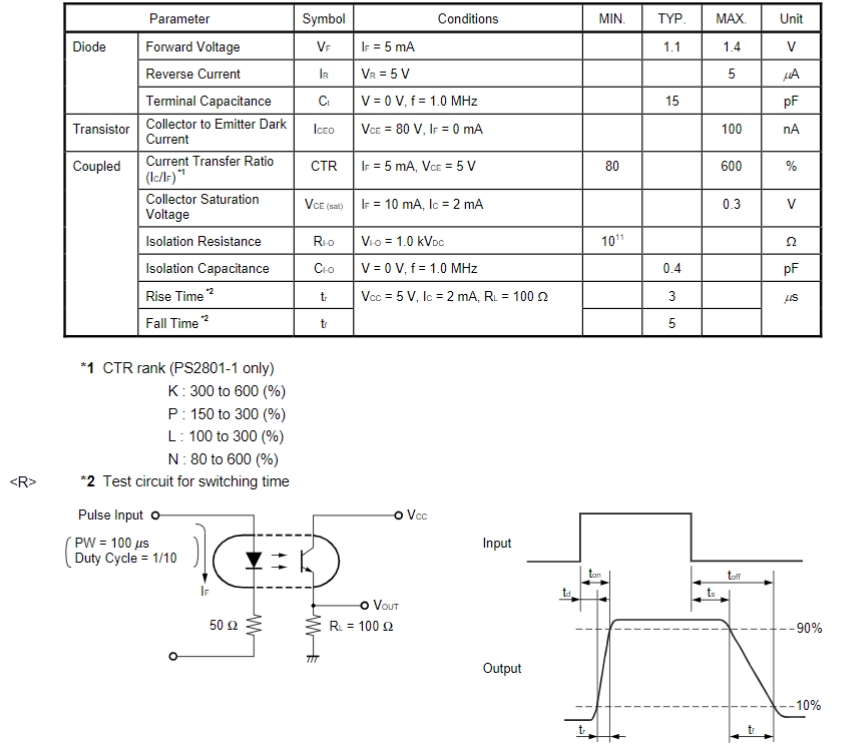

PS2801-1-V-F3-P-A Typical application Circuitry

PS2801-1-V-F3-P-A

The PS2801-1-V-F3-P-A is a high-isolation voltage, single-channel photocoupler (optocoupler). It's designed to transfer electrical signals using light waves to provide coupling with electrical isolation between its input and output. This characteristic makes the PS2801-1-V-F3-P-A ideal for applications where signal isolation is crucial, such as in power supply circuits, measurement and test equipment, and signal transmission between different voltage circuits without direct electrical connection.

Let's explore its application in a basic isolated signal transmission circuit, where the PS2801-1-V-F3-P-A is used to transmit a signal from a low-voltage microcontroller to a high-voltage circuit, ensuring electrical isolation.

Designing an Isolated Signal Transmission Circuit with PS2801-1-V-F3-P-A:

1. Input Connection (Microcontroller Side): Connect the anode of the LED (pin 1) inside the PS2801-1-V-F3-P-A to the signal output pin of the microcontroller. Connect the cathode (pin 2) to the ground of the microcontroller circuit. This setup enables the microcontroller to control the LED inside the optocoupler.

2. Current Limiting Resistor for LED: Place a current-limiting resistor in series with the LED (between the microcontroller output and pin 1 of the PS2801-1-V-F3-P-A). This resistor protects the LED from excessive current, ensuring it operates within its specified current range.

3. Output Connection (High-Voltage Side): The phototransistor on the output side of the PS2801-1-V-F3-P-A (pins 3 and 4) acts as the receiver. Connect the collector (pin 3) to the high-voltage circuit that you wish to control or signal. Connect the emitter (pin 4) to the ground of the high-voltage circuit.

4. Pull-up Resistor on Output: Place a pull-up resistor between the collector (pin 3) and the high-voltage supply. This resistor ensures that the signal on the collector goes high when the phototransistor is off, and goes low when the phototransistor is on (saturated).

5. Isolation Verification: Make that the input and output circuits are not directly connected electrically. The PS2801-1-V-F3-P-A phototransistor receives light emitted by the LED, and this is the only optical connection that should exist.

6. Speed and Response Time Consideration: Be aware of the response time and operating speed of the PS2801-1-V-F3-P-A, especially in applications where these parameters are critical. The response time may affect how quickly the high-voltage circuit can react to the input signal.

7. Temperature and Environmental Conditions: Consider the operating temperature range and environmental conditions where the PS2801-1-V-F3-P-A will be used. Ensure that the device is used within its specified limits to maintain performance and reliability.

Key Design Considerations:

- LED Current Management: Ensure that the current through the LED inside the PS2801-1-V-F3-P-A is within its specified range by choosing an appropriate current-limiting resistor.

- Signal Integrity: Verify that the pull-up resistor on the output side provides the correct logic level and does not load the circuit excessively.

- Isolation Requirement: Confirm that the isolation voltage rating of the PS2801-1-V-F3-P-A meets the requirements of your application to provide adequate protection against high-voltage transients.

- Operating Speed: Match the operating speed of the PS2801-1-V-F3-P-A with the requirements of the high-voltage circuit to ensure timely signal transmission.

- Environmental Suitability: Ensure that the PS2801-1-V-F3-P-A is operated within its specified temperature and environmental conditions to maintain its performance and longevity.

In conclusion, the PS2801-1-V-F3-P-A is a highly effective component for providing electrical isolation in signal transmission applications. When designing circuits with the PS2801-1-V-F3-P-A, careful attention to current management, signal integrity, isolation requirements, operating speed, and environmental conditions is crucial to build a robust and reliable system.
