CEL PS2701A-1-F3-A

Part No.:: PS2701A-1-F3-A

Manufacturer:: CEL

Package:: 4-SMD, Gull Wing

Datasheet:: PS2701A-1-F3-A.pdf

Description:: OPTOISOLATOR 3.75KV TRANS 4SMD

In Stock:: 2615

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PS2701A-1-F3-A Specifications

Packaging:
Tape & Reel (TR)
Series:
NEPOC
ProductStatus:
Discontinued at Mosen
NumberofChannels:
1
Voltage-Isolation:
3750Vrms
CurrentTransferRatio(Min):
50% @ 5mA
CurrentTransferRatio(Max):
300% @ 5mA
TurnOn/TurnOffTime(Typ):
-
Rise/FallTime(Typ):
5µs, 7µs
InputType:
DC
OutputType:
Transistor
Voltage-Output(Max):
70V
Current-Output/Channel:
30mA
Voltage-Forward(Vf)(Typ):
1.2V
Current-DCForward(If)(Max):
30 mA
VceSaturation(Max):
300mV
OperatingTemperature:
-55°C ~ 100°C
MountingType:
Surface Mount

PS2701A-1-F3-A this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PS2701A-1-F3-A price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PS2701A-1-F3-A to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PS2701A-1-F3-A information

Views：

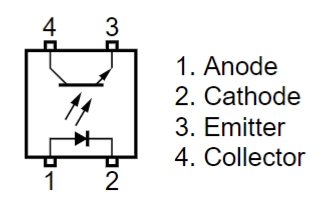

PS2701A-1-F3-A Typical application Circuitry

PS2701A-1-F3-A

The PS2701A-1-F3-A is an optically coupled isolator, also known as an optocoupler or photocoupler.

Uses of PS2701A-1-F3-A

There are several uses for the PS2701A-1-F3-A, including:

- Hybrid ICs.

- Measuring instruments.

- Power supply systems.

- Programmable logic controllers.

Parameter Features of PS2701A-1-F3-A

- High Isolation Voltage: Offers a breakdown voltage of 3,750 Vrms, providing effective electrical isolation.

- Package Type: Comes in a SOP (Small Outline Package) type, which is useful for high-density mounting.

- Safety Standards Compliance: Meets various safety standards including UL, CSA, DIN EN60747-5-2, and more, ensuring its reliability in various applications.

- Lead-Free Product: Complies with environmental standards.

Circuit Connection Example

In a typical application such as in a power supply system, consider the following for circuit connection:

1. Input Side (LED) Connection: Connect the anode and cathode of the internal LED to the appropriate signal source, ensuring the correct forward current and voltage.

2. Output Side (Phototransistor) Connection: Taking into account the maximum collector-emitter voltage and collector current, the phototransistor's collector and emitter should be connected to the load circuit.

3. Electrical Isolation: Ensure that the input and output sides are properly isolated to maintain the high isolation voltage capability of the device.

4. Ambient Light Shielding: The SOP package helps shield the device from ambient light; however, additional shielding may be required in high-light environments.

5. Mounting Considerations: Given its small package size, ensure proper PCB layout to avoid mechanical stress and maintain soldering integrity.

Design Considerations of PS2701A-1-F3-A

- Thermal Management: While the device itself may not generate significant heat, overall circuit design should consider thermal aspects, especially in high-density applications.

- Input Signal Characteristics: Ensure that the LED input is within the specified current and voltage limits.

- Output Load Compatibility: The load connected to the phototransistor should be compatible with its current and voltage ratings.

- Safety and Compliance: It is imperative, particularly in industrial applications, to adhere to safety standards and comply with regulatory regulations.

In summary, the PS2701A-1-F3-A offers reliable performance for electrical isolation in various electronic applications, particularly where space and safety are key considerations. For detailed technical specifications and application guidance, referring to the datasheet provided by NEC and Renesas is recommended.
