STMicroelectronics POWERSTEP01TR

Part No.:: POWERSTEP01TR

Manufacturer:: STMicroelectronics

Package:: 89-PowerVQFN

Datasheet:: POWERSTEP01TR.pdf

Description:: IC MTR DRV BIPLR 3.3/5V 89VFQFPN

In Stock:: 2115

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

POWERSTEP01TR Specifications

Packaging:
Tape & Reel (TR),Cut Tape (CT),Digi-Reel®
Series:
POWERSTEP
ProductStatus:
Active
MotorType-Stepper:
Bipolar
MotorType-ACDC:
-
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (4)
Interface:
SPI
Technology:
Power MOSFET
StepResolution:
1 ~ 1/128
Applications:
General Purpose
Current-Output:
10A
Voltage-Supply:
3.3V, 5V
Voltage-Load:
85V (Max)
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

POWERSTEP01TR this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including POWERSTEP01TR price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for POWERSTEP01TR to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

POWERSTEP01TR information

Views：

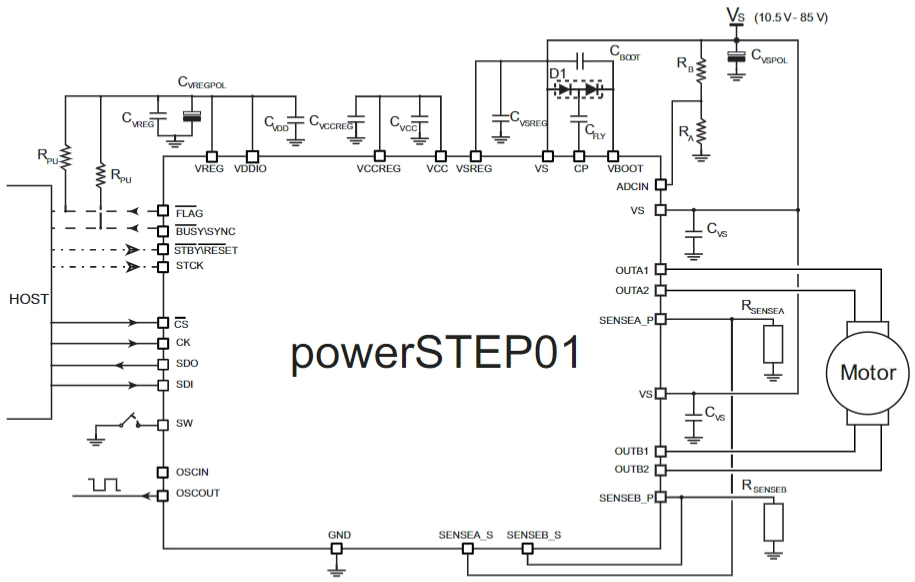

POWERSTEP01TR Typical application Circuitry

POWERSTEP01TR

The POWERSTEP01TR is a fully integrated stepper motor driver designed to control stepper motors with precision and efficiency, suitable for a wide range of applications requiring precise motor control. It integrates a dual full-bridge gate driver, microstepping controller, and additional features like overcurrent protection, making it a comprehensive solution for driving stepper motors.

Applications and Usage Scenarios

The POWERSTEP01TR is versatile and can be used in applications such as 3D printers, CNC machines, robotic arms, and automated guided vehicles (AGVs). For this explanation, let's focus on its application within a 3D printer.

Key Features and Specifications

- Integrated Dual Full-Bridge Driver: Capable of driving two phases of a stepper motor with up to 85V and 10A.

- Microstepping Support: Offers up to 128 microsteps per step for smooth and precise motor control.

- Advanced Current Control: Features advanced current control algorithms, including predictive current management, for efficient motor operation.

- Comprehensive Protection Features: Includes overcurrent, overtemperature, and undervoltage lockout protection to ensure safe operation.

- SPI Interface: For configuration and control, allowing for dynamic adjustment of motor parameters.

Application Insight: 3D Printer

Integrating the POWERSTEP01TR into a 3D printer to control the movement of the print head along the X, Y, and Z axes involves precise and smooth operation. Below is a detailed guide on connecting the chip to a typical microcontroller unit (MCU) and stepper motor:

Power Supply Connections:

- VMotor (VM): Connect the motor power supply to this pin. The voltage level should match the requirements of the stepper motor, typically between 12V to 48V.

- VLogic (V3.3): Connect a 3.3V supply from the MCU to power the logic circuitry of the POWERSTEP01TR.

Motor Connections:

- Out1, Out2, Out3, Out4: These pins connect to the two coils of the stepper motor, enabling the dual full-bridge to drive the motor. Ensure that the motor phases are correctly connected for proper rotation.

Control and Configuration:

- SPI Interface (SCK, MOSI, MISO, NSS): Use these pins to connect the POWERSTEP01TR to the MCU via SPI, allowing for configuration, control, and monitoring of the driver and motor.

- Reset (RST): This pin can be connected to the MCU to reset the POWERSTEP01TR to its initial state if needed.

Feedback and Monitoring:

- Fault: Connect this pin to an input on the MCU to monitor the fault status. It indicates overcurrent, overtemperature, or other error conditions.

- Busy/Sync: This pin can signal the MCU about the driver's status, useful for synchronizing steps or checking if the device is busy.

Design Considerations

When designing a circuit with the POWERSTEP01TR, consider the following:

- Heat Dissipation: Implement adequate cooling, such as heatsinks or active cooling, especially for high-power applications, to manage the heat generated by the motor and driver.

- Power Supply Stability: Ensure that both the motor and logic power supplies are stable and capable of providing sufficient current for the operation.

- Protection and Filtering: Consider adding external protection circuits and filters to enhance the system's reliability, especially in electrically noisy environments.

- Motor Characteristics: Match the POWERSTEP01TR settings with the stepper motor's specifications, including voltage, current, and step resolution.

- Firmware Integration: Develop robust firmware for the MCU to effectively control the POWERSTEP01TR, including initializing the device, setting parameters, and handling errors.

By incorporating the POWERSTEP01TR into a 3D printer, developers can achieve precise control over stepper motors, enabling high-quality printing with intricate details. Attention to detail in the circuit design, along with careful consideration of the operational and environmental factors, will ensure optimal performance and reliability of the application.
