STMicroelectronics POWERSTEP01

Part No.:: POWERSTEP01

Manufacturer:: STMicroelectronics

Package:: 89-PowerVQFN

Datasheet:: POWERSTEP01.pdf

Description:: IC MTR DRV BIPLR 3.3/5V 89VFQFPN

In Stock:: 2942

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

POWERSTEP01 Specifications

Packaging:
Tray
Series:
POWERSTEP
ProductStatus:
Active
MotorType-Stepper:
Bipolar
MotorType-ACDC:
-
Function:
Driver - Fully Integrated, Control and Power Stage
OutputConfiguration:
Half Bridge (4)
Interface:
SPI
Technology:
Power MOSFET
StepResolution:
1 ~ 1/128
Applications:
General Purpose
Current-Output:
10A
Voltage-Supply:
3.3V, 5V
Voltage-Load:
85V (Max)
OperatingTemperature:
-40°C ~ 150°C (TJ)
MountingType:
Surface Mount

POWERSTEP01 this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including POWERSTEP01 price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for POWERSTEP01 to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

POWERSTEP01 information

Views：

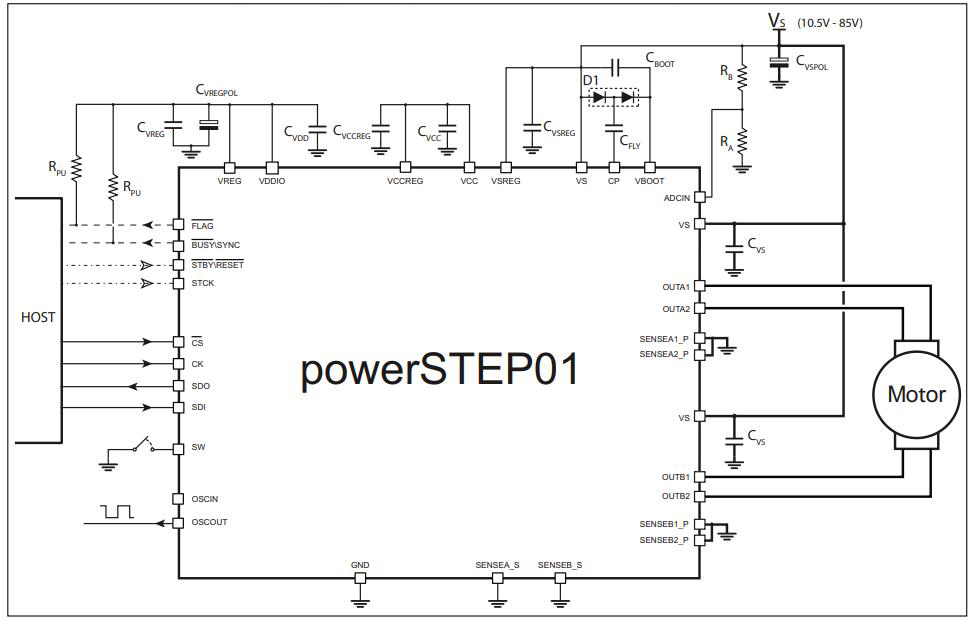

POWERSTEP01 Typical application Circuitry

POWERSTEP01

The POWERSTEP01 is an integrated stepper motor driver solution produced by STMicroelectronics. The chip can control stepper motors through pulse-width modulation (PWM) current control and incorporates features such as overcurrent, thermal, and stall detection.

POWERSTEP01 Characteristics:

1. Versatile Microstepping: The POWERSTEP01 can perform up to 1/128 microstep to ensure smooth, precise control over the motor's positioning.

2. Advanced Current Control: It incorporates a PWM current control with a selectable decay mode (fast, slow, or mixed).

3. Advanced Protection Features: The chip includes comprehensive protection and diagnostic features such as thermal shutdown, overcurrent protection, and stall detection.

4. Operating Voltage: The chip supports an operating voltage range of 8 V to 85 V, making it suitable for a wide range of applications.

POWERSTEP01 Application Scenarios:

The POWERSTEP01 is primarily used in applications where precision motor control is crucial, such as robotics, surveillance systems, printers, and CNC machines.

Circuit Connection - Driving a Stepper Motor:

Let's talk about a simple use-case scenario where the POWERSTEP01 is used to drive a stepper motor.

1. Supply Voltage (Pin 3): This pin connects to the power source. The supply voltage should be within the range of 8 V to 85 V.

2. Step Clock (Pin 12): This pin takes the step clock signal that determines the stepping frequency of the motor. It should be driven with a suitable clock signal from a microcontroller or other timing source.

3. Direction Input (Pin 11): This pin takes the direction signal to control the rotation direction of the motor.

4. Motor Winding Outputs (Pins 20, 21, 23, and 24): These pins are connected to the two coils of the stepper motor. The specific connection depends on the motor's wiring configuration.

5. Current Sense Resistors (Pins 16, 17, 28, and 29): These pins connect to the current sense resistors that allow the chip to regulate the current through the motor coils.

6. Control Pins (Pins 13, 14, 15): These pins control the microstepping mode and should be set according to the desired step resolution.

Design Considerations with POWERSTEP01:

1. Power Supply Decoupling: To ensure stable operation, decoupling capacitors should be used on the power supply pin.

2. Heat Dissipation: The chip may produce significant heat during operation. Thus, a proper heat sink or other cooling method may be needed depending on the power levels used.

3. Motor Coil Current: The coil current should be set according to the motor's specifications to prevent overheating or insufficient torque.

4. Overcurrent Protection: The current sense resistors should be chosen carefully to match the maximum current of the motor.

The POWERSTEP01 is an advanced integrated motor driver that can bring precision and flexibility to your motor control applications. Good design practices regarding power supply decoupling, thermal management, and current setting can help you get the most out of this chip.
