Microchip Technology PIC32MX795F512L-80I/PF

Part No.:: PIC32MX795F512L-80I/PF

Manufacturer:: Microchip Technology

Package:: 100-TQFP

Datasheet:: PIC32MX795F512L-80I/PF.pdf

Description:: IC MCU 32BIT 512KB FLASH 100TQFP

In Stock:: 2065

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC32MX795F512L-80I/PF Specifications

Package/Case:
100-TQFP
Packaging:
Tray
Series:
PIC® 32MX
RoHS:
RoHS
Speed:
80MHz
RAM Size:
128K x 8
Core Size:
32-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, DMA, POR, PWM, WDT
Connectivity:
CANbus, Ethernet, I²C, SPI, UART/USART, USB OTG
Mounting Type:
Surface Mount
Number of I/O:
85
Core Processor:
MIPS32® M4K™
Data Converters:
A/D 16x10b
Oscillator Type:
Internal
Program Memory Size:
512KB (512K x 8)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC32MX795F512L-80I/PF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC32MX795F512L-80I/PF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC32MX795F512L-80I/PF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC32MX795F512L-80I/PF information

Views：

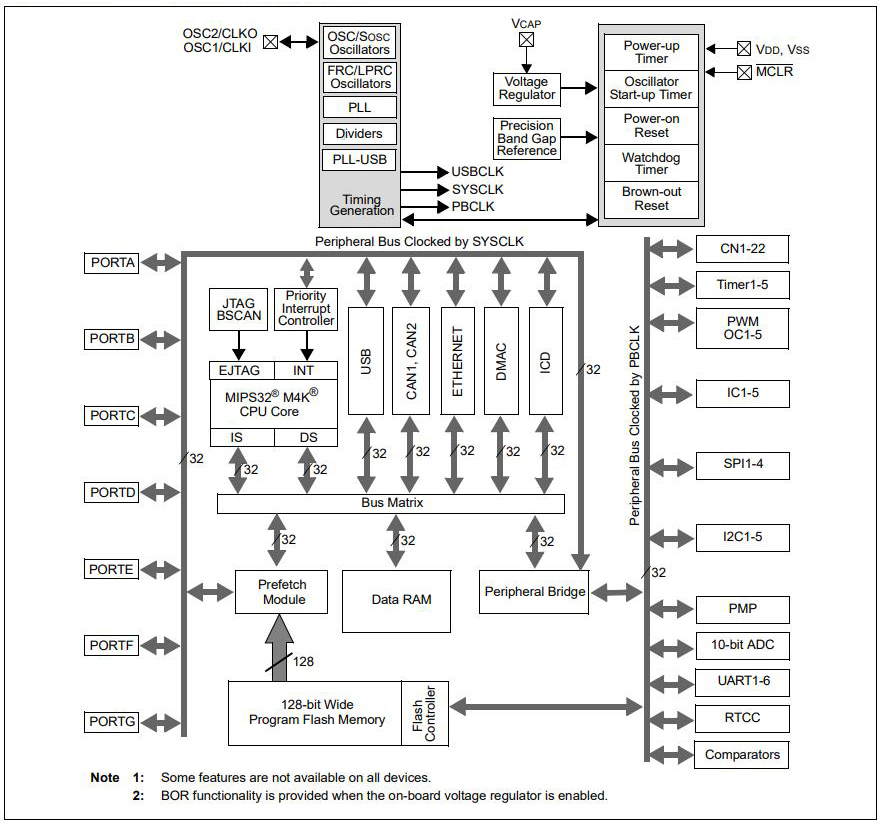

PIC32MX795F512L-80I/PF Typical application Circuitry

PIC32MX795F512L-80I PF

The PIC32MX795F512L-80I/PF is a high-performance microcontroller developed by Microchip Technology, and it is part of the PIC32MX family. It is suitable for a wide array of applications that require considerable processing capabilities and robust feature sets.

Characteristics of the PIC32MX795F512L-80I/PF:

1. Core Architecture: 32-bit MIPS M4K core, operating up to 80MHz.

2. Memory: 512KB Flash memory and 128KB SRAM.

3. Communication Interfaces: UART, SPI, I²C, USB, CAN, Ethernet.

4. Analog Capabilities: 10-bit, 16-channel analog-to-digital converter (ADC).

5. Operating Voltage: 2.3V to 3.6V.

Application Scenarios:

The PIC32MX795F512L-80I/PF can be found in numerous applications such as:

- Embedded Web Servers.

- Robotics Control Systems.

- Industrial Control.

- Medical Equipment.

- Security Systems.

Example Circuit: Embedded Web Server:

1. Power Distribution:

- VDD: Connect pins 8, 25, 41, 57, 73, 89 to +3.3V.

- VSS: Connect pins 19, 35, 51, 67, 83, 99 to Ground.

2. Ethernet Connection:

- ETXD0, ETXD1 (pins 98, 97): Transmit data pins; connect to Ethernet PHY.

- ERXD0, ERXD1 (pins 96, 95): Receive data pins; connect to Ethernet PHY.

- EMDIO (pin 92): Management data input/output; connect to Ethernet PHY.

- EMDC (pin 93): Management data clock; connect to Ethernet PHY.

3. USB Connection:

- USBID (pin 14): Connect to USB ID line.

- USBVDD (pin 15): Connect to USB VDD line.

- USBD+, USBD- (pins 16, 17): Connect to D+ and D- of the USB connector.

4. Status LEDs:

- RA0, RA1 (pins 5, 6): Connect to status LEDs through appropriate current-limiting resistors.

5. Serial Debugging (UART):

- U2TX (pin 31): Transmit to RS-232 level shifter or directly to UART-USB bridge.

- U2RX (pin 32): Receive from RS-232 level shifter or directly from UART-USB bridge.

6. Programming Interface:

- PGED2, PGEC2 (pins 11, 12): Connect to the programmer/debugger.

- MCLR (pin 1): Connect to the programmer's/master clear.

Design Considerations:

1. Ethernet Interface Design: Be cautious with trace impedance and termination to avoid signal integrity issues.

2. USB Compliance: Adhere to USB standards for connectivity, and include proper ESD protection.

3. Power Decoupling: Implement decoupling capacitors for power stability.

4. Thermal Management: Ensure that the thermal design allows adequate heat dissipation.

5. Software Stack: Consider the compatibility and robustness of the TCP/IP stack to be used.

In summary, the PIC32MX795F512L-80I/PF is a highly capable microcontroller with distinct features suitable for high-end applications such as embedded web servers. The careful and thoughtful design of its associated circuits, considering the outlined points, would enable the successful utilization of the PIC32MX795F512L-80I/PF in an array of sophisticated systems and applications.
