What is the Additional Feature ?

Name: PIC24FJ256GA110-I/PT
Brand: Microchip Technology
SKU: PIC24FJ256GA110-I/PT
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology PIC24FJ256GA110-I/PT

Part No.:: PIC24FJ256GA110-I/PT

Manufacturer:: Microchip Technology

Package:: 100-TQFP

Datasheet:: PIC24FJ256GA110-I/PT.pdf

Description:: IC MCU 16BIT 256KB FLASH 100TQFP

In Stock:: 3317

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC24FJ256GA110-I/PT Specifications

Package/Case:
100-TQFP
Packaging:
Tray
Series:
PIC® 24F
RoHS:
RoHS
Speed:
32MHz
RAM Size:
16K x 8
Core Size:
16-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, LVD, POR, PWM, WDT
Connectivity:
I²C, PMP, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
85
Core Processor:
PIC
Data Converters:
A/D 16x10b
Oscillator Type:
Internal
Program Memory Size:
256KB (85.5K x 24)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC24FJ256GA110-I/PT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC24FJ256GA110-I/PT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC24FJ256GA110-I/PT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC24FJ256GA110-I/PT information

Views：

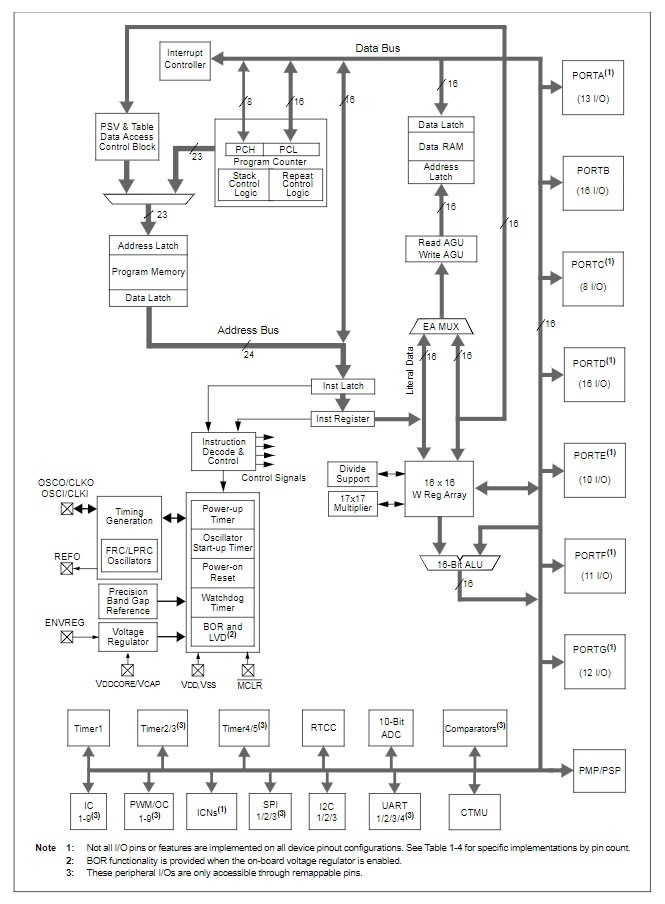

PIC24FJ256GA110-I/PT Typical application Circuitry

PIC24FJ256GA110-I PT

Microcontroller Functionality: The PIC24FJ256GA110-I/PT is a high-performance 16-bit microcontroller (MCU) from Microchip, featuring a rich set of peripherals and designed to handle a wide range of embedded applications.

Application Scenarios: This MCU is adept for complex applications such as advanced motor control, sophisticated industrial automation, and robust human-machine interface (HMI) controls.

Key Specifications: It boasts 256 KB of flash memory and 16 KB of RAM, extensive I/O capabilities with up to 85 I/O pins, internal oscillators, multiple timers, and communication interfaces like UART, SPI, and I2C. Its high interrupt capability and DMA channels make it ideal for multitasking environments.

Application Example - Advanced Motor Control System:

In a motor control application, the PIC24FJ256GA110-I/PT could be used to manage a Brushless DC (BLDC) motor using sensorless vector control.

Power Supply Setup:

- VDD (multiple pins, e.g., pin 71) should be connected to a 3.3V regulated power supply.

- VSS (multiple pins, e.g., pin 70) must be tied to the ground.

- Decoupling capacitors (e.g., 0.1 µF) should be placed as close as possible to these pins to filter out noise.

Oscillator Configuration:

- Connect a stable 10 MHz crystal to OSC1 (pin 77) and OSC2 (pin 76).

- Additional capacitors connected to these pins may be needed based on the crystal manufacturer's recommendations.

Motor Control Interface:

- The PWM outputs (e.g., OC1, OC2, on pins 18 and 17, respectively) connect to the gate driver for the motor's inverter bridge.

- Configure the special function registers to generate the required PWM frequency and resolution.

Sensor Interfaces:

- For temperature feedback, connect a thermistor to one of the ADC inputs, like AN0 (pin 64), and configure the ADC via software for temperature monitoring.

- Hall effect sensors, if used, can be connected to the INTx pins for rotor position sensing.

Communication Protocols:

- Use SPI (e.g., SCK1, SDO1, SDI1 on pins 33, 34, and 35, respectively) to interface with a feedback encoder on the motor.

- UART interfaces (e.g., U1TX, U1RX on pins 50 and 49) may connect to an HMI or PC for monitoring and control.

Programming Interface:

- The PGEC1 (pin 80) and PGED1 (pin 79) pins are used for the ICSP (In-Circuit Serial Programming) interface. These should be connected to the programmer/debugger.

- The MCLR pin (pin 1) requires a pull-up resistor and is also used during the programming phase.

Circuit Design Considerations: Ensure that the PCB layout minimizes noise induction in analog circuits, and keep the power paths for the digital and analog sections separate to avoid interference. Signal integrity for high-speed communication lines is paramount, so proper impedance matching and line termination might be necessary. Additionally, thermal management for the motor controller's power stage should be considered to prevent overheating of components.
