Microchip Technology PIC18LF26K22-I/SS

Part No.:: PIC18LF26K22-I/SS

Manufacturer:: Microchip Technology

Package:: 28-SSOP (0.209", 5.30mm Width)

Datasheet:: PIC18LF26K22-I/SS.pdf

Description:: IC MCU 8BIT 64KB FLASH 28SSOP

In Stock:: 3002

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC18LF26K22-I/SS Specifications

Package/Case:
28-SSOP (0.209", 5.30mm Width)
Packaging:
Tube
Series:
PIC® XLP™ 18K
RoHS:
RoHS
Speed:
64MHz
RAM Size:
3.8K x 8
Core Size:
8-Bit
EEPROM Size:
1K x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, HLVD, POR, PWM, WDT
Connectivity:
I²C, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
24
Core Processor:
PIC
Data Converters:
A/D 19x10b
Oscillator Type:
Internal
Program Memory Size:
64KB (32K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC18LF26K22-I/SS this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC18LF26K22-I/SS price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC18LF26K22-I/SS to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC18LF26K22-I/SS information

Views：

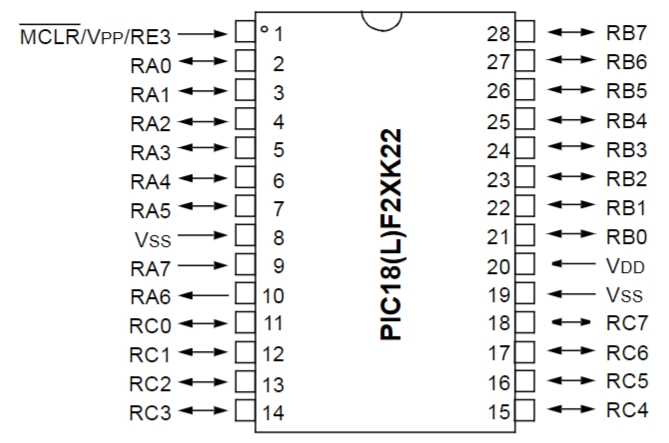

PIC18LF26K22-I/SS Typical application Circuitry

PIC18LF26K22-I SS

The PIC18LF26K22-I/SS is a feature-rich microcontroller chip designed by Microchip Technology, tailored for applications that demand robust performance along with efficient power management. This microcontroller belongs to the PIC18LF K22 series, which stands out for its extensive computational capabilities, wide array of peripherals, and flexibility in power consumption, making it a prime choice for both complex industrial applications and consumer electronics that require battery optimization.

Key Features of PIC18LF26K22-I/SS

- Enhanced Mid-Range Core: Offers efficient processing with a wide operating voltage range, suitable for demanding applications while ensuring power efficiency.

- Expanded Flash Memory: Provides ample storage for complex application code, facilitating sophisticated program logic and data storage.

- Rich Peripheral Integration: Comes equipped with multiple ADC channels, USART, SPI, and I²C communication modules, and PWM outputs, supporting extensive connectivity and control options.

- Optimized Power Consumption: Features several power-saving modes, including sleep and idle modes, which are essential for battery-operated devices.

- Flexible Oscillator Configuration: Supports a variety of clock sources, allowing developers to balance processing speed and power consumption according to application needs.

Application Scenario: Environmental Monitoring Station

Circuit Connection Details

In an environmental monitoring station application, the PIC18LF26K22-I/SS can serve as the central processing unit, interfacing with various environmental sensors, storing measurement data, and communicating with a central server or display unit.

- Power Supply Connections: Attach VDD (pin 20) to a +3.3V power source and VSS (pin 8, 19) to ground. It's crucial to ensure a stable and clean power supply with the aid of voltage regulators and decoupling capacitors placed near these pins.

- Temperature and Humidity Sensor Interface: Connect sensors like the DHT11 or DHT22 to a digital I/O pin, for instance, RC0 (pin 11), for capturing environmental data. These sensors are straightforward to interface with and provide both temperature and humidity readings from a single digital signal.

- Air Quality Sensor Connection: Interface an air quality sensor (e.g., MQ series) to one of the ADC inputs, such as AN0 (pin 2), to monitor pollutants or CO2 levels. These sensors typically output an analog voltage corresponding to the concentration of certain gases, which can be read by the microcontroller's ADC.

- Data Storage to EEPROM: Use the SPI interface (SCK/SO/SI on pins 18, 17, and 23, respectively) to connect an external EEPROM chip for logging environmental data over time. This is essential for tracking trends and historical analysis.

- Wireless Communication Module Interface: Connect a Wi-Fi or LoRa module to USART pins (TX/RX on pins 25 and 26) for remote data transmission. This enables the station to send collected data to a central server or a cloud-based platform for further analysis and visualization.

- Programming and Debugging Interface: For firmware uploads and debugging, use the ICSP protocol by connecting a programmer to PGC (pin 14) and PGD (pin 13), with MCLR (pin 1) serving to reset the device. These connections are vital for developing and maintaining the station's firmware.

Design Considerations

When designing a circuit with the PIC18LF26K22-I/SS for an environmental monitoring station, consider the following factors:

- Power Management: Optimize power usage to ensure long battery life or minimal energy consumption, particularly critical in remote or solar-powered stations.

- Signal Integrity: Implement appropriate noise reduction and signal conditioning techniques, especially for analog sensor inputs, to ensure accurate readings.

- Reliability and Redundancy: Design the system for high reliability, including fail-safes and redundancy for critical components, to ensure continuous operation in varying environmental conditions.

- Scalability: Consider the potential for adding more sensors or communication options in the future, which requires careful planning of I/O usage and software architecture.

- Security Measures: Incorporate security protocols for wireless communication to protect data integrity and privacy, especially when transmitting sensitive environmental data.

Leveraging the PIC18LF26K22-I/SS in this way demonstrates its utility in complex, power-sensitive applications like environmental monitoring, showcasing its capability to manage multiple sensor inputs, perform data processing, and handle communication tasks efficiently.
