Microchip Technology PIC18F97J60-I/PF

Part No.:: PIC18F97J60-I/PF

Manufacturer:: Microchip Technology

Package:: 100-TQFP

Datasheet:: PIC18F97J60-I/PF.pdf

Description:: IC MCU 8BIT 128KB FLASH 100TQFP

In Stock:: 3431

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC18F97J60-I/PF Specifications

Package/Case:
100-TQFP
Packaging:
Tray
Series:
PIC® 18J
RoHS:
RoHS
Speed:
41.667MHz
RAM Size:
3808 x 8
Core Size:
8-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
EBI/EMI, Ethernet, I²C, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
70
Core Processor:
PIC
Data Converters:
A/D 16x10b
Oscillator Type:
Internal
Program Memory Size:
128KB (64K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC18F97J60-I/PF this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC18F97J60-I/PF price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC18F97J60-I/PF to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC18F97J60-I/PF information

Views：

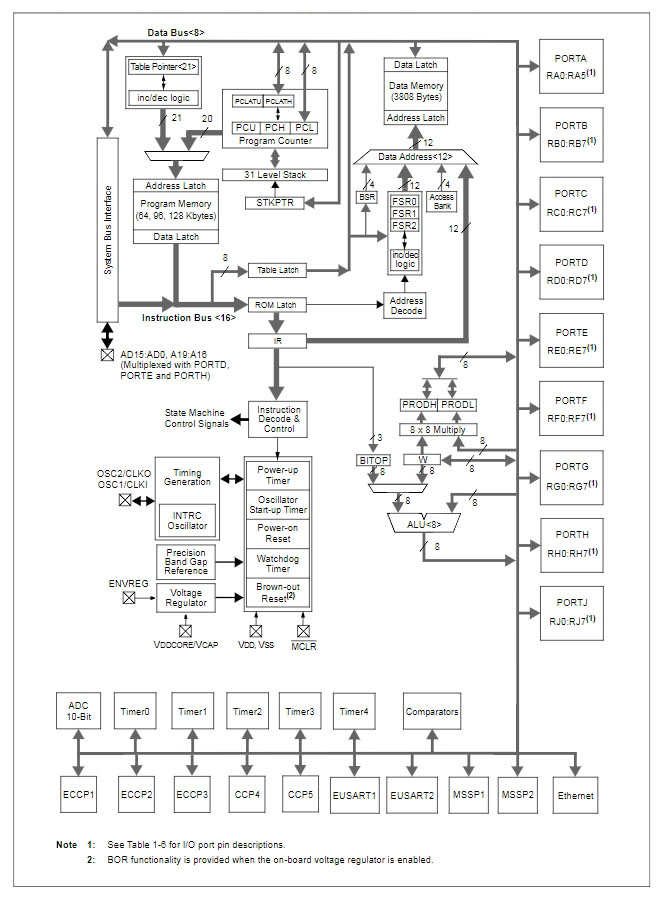

PIC18F97J60-I/PF Typical application Circuitry

PIC18F97J60-I PF

The PIC18F97J60-I/PF is a high-performance microcontroller with an integrated Ethernet interface. It is part of Microchip's PIC18F family, offering the power of an 8-bit processor with the convenience of onboard networking capabilities. This MCU is well-suited for applications such as:

- Internet of Things (IoT) devices

- Networked sensors and control systems

- Home automation

- Remote monitoring and data logging

In terms of features, the PIC18F97J60-I/PF includes:

- A 10 Mbps Ethernet MAC/PHY

- 128 KB of Flash memory

- 3,840 bytes of RAM

- An assortment of serial interfaces, such as UART, SPI, and I2C

- An 8 x 8 Single-Cycle Hardware Multiplier

Designing a Simple Networked Sensor Interface:

One practical application of the PIC18F97J60-I/PF could be a networked temperature sensor that can be monitored over a local network. Below is an overview of the necessary connections and considerations for such a design.

Power Supply and Grounding:

- VDD Connections: Power the PIC18F97J60-I/PF by connecting its VDD pins to a regulated 3.3V power supply. It is critical to connect all VDD pins to the power source to ensure proper operation.

- VSS Connections: Connect all VSS (ground) pins to the common ground of the circuit.

Ethernet Interface:

- RJ45 Connector: The integrated Ethernet controller of the PIC18F97J60-I/PF requires a connection to an RJ45 Ethernet jack with integrated transformers. Connect the TX and RX differential pairs to the corresponding pins on the PIC18F97J60-I/PF.

Temperature Sensor Interface:

- Analog Input: If using an analog temperature sensor, connect its output to one of the PIC's analog input pins, such as AN0. Before this connection, a low-pass filter may be beneficial to condition the signal.

Programming Interface:

- ICSP (In-Circuit Serial Programming): To program the PIC18F97J60-I/PF, you will use the following pins for ICSP:

- PGC (Pin 30): Program Clock

- PGD (Pin 31): Program Data

- MCLR (Pin 1): Master Clear/Reset pin, also used for applying the programming voltage.

Oscillator Configuration:

- Crystal Oscillator: Connect a crystal oscillator to OSC1 (Pin 11) and OSC2 (Pin 12) for an external clock source. For network timing, a precise frequency is important.

Circuit Protection and Filtering:

- Reset Circuit: Attach a pull-up resistor to the MCLR pin and a capacitor to ground to form a power-on reset circuit.

- Decoupling Capacitors: To stabilize the power supply, place decoupling capacitors in close proximity to the PIC18F97J60-I/PF power pins.

PCB Layout Points to Remember:
- Signal Integrity: Keep the traces from the crystal oscillator as short as possible and away from high-speed signals like the Ethernet lines.

- Thermal Management: If the sensor circuitry or Ethernet PHY will be operating at high speeds, pay attention to thermal dissipation.

Final Considerations:

When integrating the PIC18F97J60-I/PF into a circuit, one must consider the following:

- The quality of the power supply, as fluctuations can affect both the microcontroller's performance and the reliability of network communications.

- The firmware development, especially the TCP/IP stack required for Ethernet communication, which can be complex.

- The isolation of analog signals from the digital noise inherent in Ethernet communications.

- The need for robust Ethernet cabling and connectors to ensure signal integrity across the network.

By carefully attending to these design elements, the PIC18F97J60-I/PF can be effectively employed in a range of network-connected applications, leveraging its integrated Ethernet controller for communication within distributed systems.
