Name: PIC18F87J60-I/PT
Brand: Microchip Technology
SKU: PIC18F87J60-I/PT
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology PIC18F87J60-I/PT

Part No.:: PIC18F87J60-I/PT

Manufacturer:: Microchip Technology

Package:: 80-TQFP

Datasheet:: PIC18F87J60-I/PT.pdf

Description:: IC MCU 8BIT 128KB FLASH 80TQFP

In Stock:: 2863

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC18F87J60-I/PT Specifications

Package/Case:
80-TQFP
Packaging:
Tray
Series:
PIC® 18J
RoHS:
RoHS
Speed:
41.667MHz
RAM Size:
3808 x 8
Core Size:
8-Bit
EEPROM Size:
-
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
Ethernet, I²C, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
55
Core Processor:
PIC
Data Converters:
A/D 15x10b
Oscillator Type:
Internal
Program Memory Size:
128KB (64K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC18F87J60-I/PT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC18F87J60-I/PT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC18F87J60-I/PT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC18F87J60-I/PT information

Views：

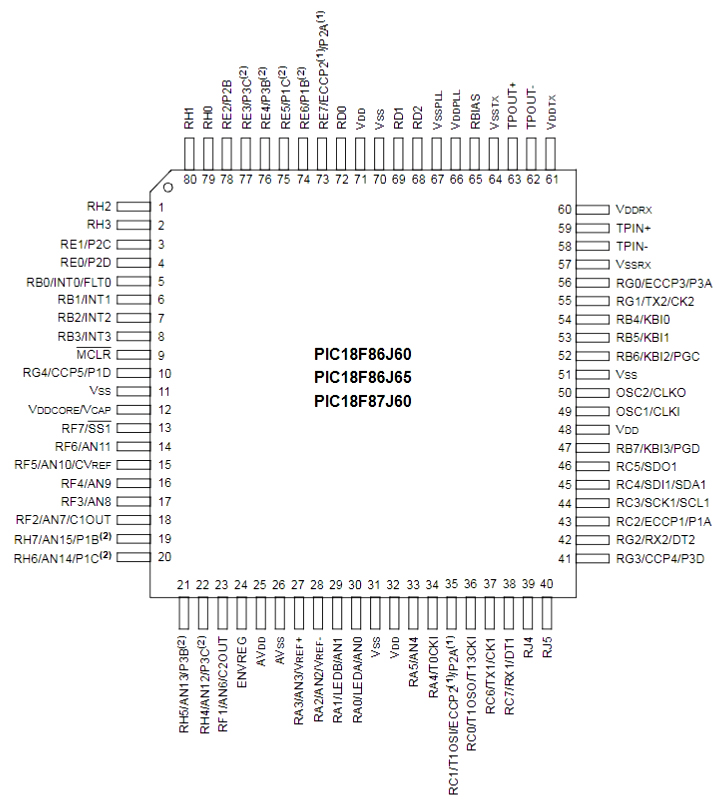

PIC18F87J60-I/PT Typical application Circuitry

PIC18F87J60-I PT

The PIC18F87J60-I/PT is a microcontroller chip that integrates Ethernet support, making it particularly suited for networked applications. This microcontroller is part of Microchip's PIC18F series, renowned for its high performance, enhanced flash microcontrollers with 10-Mbit Ethernet communications interface. It is especially useful in applications requiring remote control and monitoring, Internet of Things (IoT) devices, and networked communication in embedded systems.

Key Features of PIC18F87J60-I/PT

- Integrated Ethernet MAC and PHY: Facilitates direct connection to a network, enabling easy implementation of Internet connectivity.

- High-Performance PIC18 Architecture: Provides efficient processing capabilities for complex algorithms and control tasks.

- Large Flash Memory: This allows for a lot of space for application code, which is ideal for sophisticated programs.

- Versatile Connectivity Options: In addition to Ethernet, it includes serial communication interfaces like USART, SPI, and I²C for peripheral connectivity.

- Analog Features: It is appropriate for sensor-based applications since it has analog-to-digital converters (ADCs).

Application Scenario: IoT Home Automation System

Circuit Connection Details

For a home automation system, the PIC18F87J60-I/PT can serve as the central controller, interfacing with sensors, actuators, and a network connection for remote access and control.

- Power Supply Connections: Connect VDD (pin 11) to a +3.3V power source and VSS (pin 12) to ground. Ensure to provide a clean power supply, possibly with decoupling capacitors near these pins to minimize noise.

- Ethernet Interface: Utilize the integrated Ethernet MAC and PHY. Connect an RJ45 jack with transformers to pins 17-18 (TX) and 13-14 (RX) for network communication. This setup enables the microcontroller to connect to a local network for Internet access or intranet communication.

- Sensor Interface for Temperature Monitoring: Connect a temperature sensor's analog output to one of the ADC input pins, for example, AN0 (pin 2). The microcontroller can now keep an eye on the surroundings thanks to this.

- Actuator Control for Lighting: Use a digital I/O pin, like RB0 (pin 21), to control a relay or transistor switch for turning lights on/off remotely. Ensure to design with appropriate current limiting and protection circuitry.

- Programming and Debugging Interface: For programming the PIC18F87J60-I/PT, use the ICSP (In-Circuit Serial Programming) pins: PGD (pin 40) and PGC (pin 39), along with MCLR (pin 1) for resetting the device during programming. These connections are critical for uploading firmware and debugging.

Design Considerations

When designing a circuit with the PIC18F87J60-I/PT, especially for home automation, several factors need consideration:

- Electromagnetic Interference (EMI): Given its network connectivity, designing with EMI considerations, such as proper grounding and shielding, is crucial to prevent interference with other devices.

- Power Supply Stability: The microcontroller and peripheral devices require a stable power supply, necessitating the use of voltage regulators and decoupling capacitors.

- Firmware Update Mechanism: Implementing a reliable firmware update mechanism is essential for future enhancements and bug fixes, which can be facilitated through the Ethernet interface.

- Security: Given its connectivity features, implementing security measures at both the hardware and software levels to protect against unauthorized access is paramount.

By integrating these considerations, the PIC18F87J60-I/PT microcontroller can effectively serve as the core of a robust and versatile home automation system, connecting various sensors and actuators to the Internet for remote monitoring and control, thereby exemplifying its utility in networked embedded systems.
