What is the Additional Feature ?

Name: PIC18F8720-I/PT
Brand: Microchip Technology
SKU: PIC18F8720-I/PT
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology PIC18F8720-I/PT

Part No.:: PIC18F8720-I/PT

Manufacturer:: Microchip Technology

Package:: 80-TQFP

Datasheet:: PIC18F8720-I/PT.pdf

Description:: IC MCU 8BIT 128KB FLASH 80TQFP

In Stock:: 3161

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC18F8720-I/PT Specifications

Package/Case:
80-TQFP
Packaging:
Tray
Series:
PIC® 18F
RoHS:
RoHS
Speed:
25MHz
RAM Size:
3.75K x 8
Core Size:
8-Bit
EEPROM Size:
1K x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, LVD, POR, PWM, WDT
Connectivity:
EBI/EMI, I²C, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
68
Core Processor:
PIC
Data Converters:
A/D 16x10b
Oscillator Type:
External
Program Memory Size:
128KB (64K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC18F8720-I/PT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC18F8720-I/PT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC18F8720-I/PT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC18F8720-I/PT information

Views：

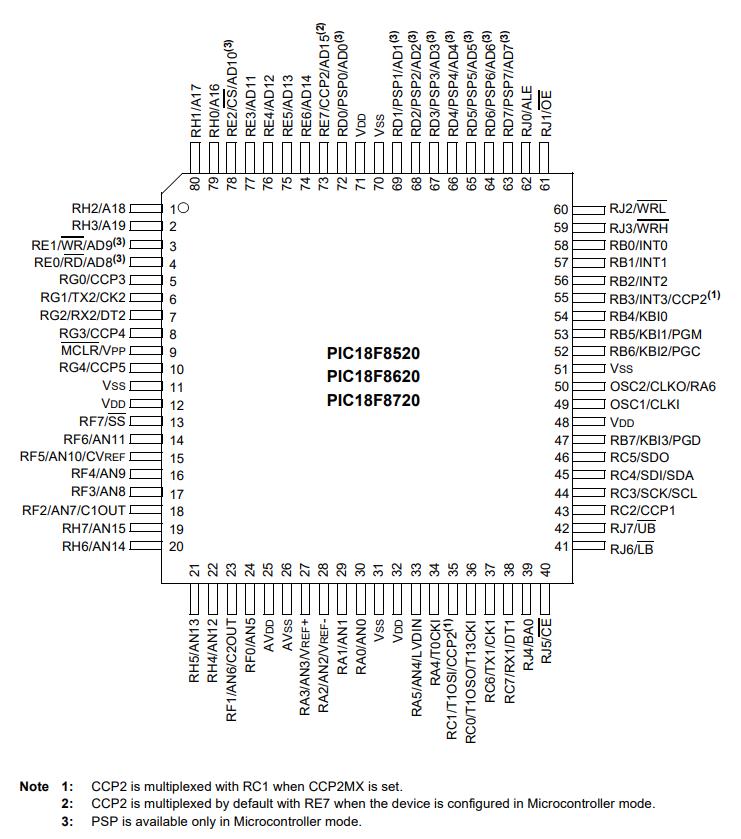

PIC18F8720-I/PT Typical application Circuitry

The PIC18F8720-I/PT is a part of Microchip's PIC18 family of microcontrollers and features enhanced functionalities suitable for various applications.

Functionality of PIC18F8720-I/PT :

1. Core: 8-bit microcontroller with C-optimized architecture.

2. Clock Speed: Up to 40 MHz.

3. Memory: 128KB Flash, 3.9KB RAM, and 1KB EEPROM.

4. Peripherals: 10-bit ADC with 16 channels, CCP, ECCP, Enhanced USART, SPI, I²C.

5. I/O Pins: 53 programmable I/O pins.

6. Operating Voltage Range: 4.2V to 5.5V.

7. Package: 80-pin TQFP.

Application Scenarios for PIC18F8720-I/PT :

The PIC18F8720-I/PT has potential use in:

- Industrial Automation Systems.

- Home Security Systems.

- Medical Devices.

- Automotive Controls.

- Consumer Electronics.

Example Circuit: Home Security System:

Below is an example circuit illustrating the use of PIC18F8720-I/PT in a home security system that includes motion sensors, door sensors, and a notification system.

1. Power Supply:

- VDD (pins 11, 32, 61, 72): Connect to +5V.

- VSS (pins 12, 31, 62, 71): Connect to Ground.

2. Motion Sensor Interface:

- RA0/AN0 (pin 2): Connect to the motion sensor's analog output.

3. Door Sensor Interface:

- RA1/AN1 (pin 3): Connect to the door sensor's analog output.

4. Alarm and Notification:

- RC0, RC1 (pins 22, 23): Connect to the alarm system and notification module respectively.

5. User Interface (Keypad and LCD):

- RD0-RD7 (pins 36-43): Connect to LCD data lines.

- RE0-RE3 (pins 10, 9, 8, 7): Connect to the keypad.

6. Programming Connections for PIC18F8720-I/PT :

- PGC (pin 44): Connect to the programming tool's clock line.

- PGD (pin 45): Connect to the programming tool's data line.

- MCLR/VPP (pin 1): Connect to the programmer's reset line.

Design Considerations:

1. Sensor Calibration: Ensure proper calibration of motion and door sensors with PIC18F8720-I/PT.

2. User Interface Design: Careful design of the user interface is necessary for ease of use.

3. Noise Management: Implement noise filtering techniques to minimize false triggers.

4. Power Efficiency: Design the system with energy efficiency in mind if it is intended to run on batteries.

5. Software Development: Write efficient and error-free code that interacts seamlessly with the PIC18F8720-I/PT and associated peripherals.

In conclusion, the PIC18F8720-I/PT represents a robust and flexible microcontroller that's well-suited for a multitude of applications including home security systems. The details provided above offer insights into the specific connections and considerations required for a successful implementation, ensuring the optimal performance of the PIC18F8720-I/PT in any desired configuration.
