Microchip Technology PIC18F4550-I/PT

Part No.:: PIC18F4550-I/PT

Manufacturer:: Microchip Technology

Package:: 44-TQFP

Datasheet:: PIC18F4550-I/PT.pdf

Description:: IC MCU 8BIT 32KB FLASH 44TQFP

In Stock:: 3146

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC18F4550-I/PT Specifications

Package/Case:
44-TQFP
Packaging:
Tray
Series:
PIC® 18F
RoHS:
RoHS
Speed:
48MHz
RAM Size:
2K x 8
Core Size:
8-Bit
EEPROM Size:
256 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, HLVD, POR, PWM, WDT
Connectivity:
I²C, SPI, UART/USART, USB
Mounting Type:
Surface Mount
Number of I/O:
35
Core Processor:
PIC
Data Converters:
A/D 13x10b
Oscillator Type:
Internal
Program Memory Size:
32KB (16K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC18F4550-I/PT this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC18F4550-I/PT price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC18F4550-I/PT to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC18F4550-I/PT information

Views：

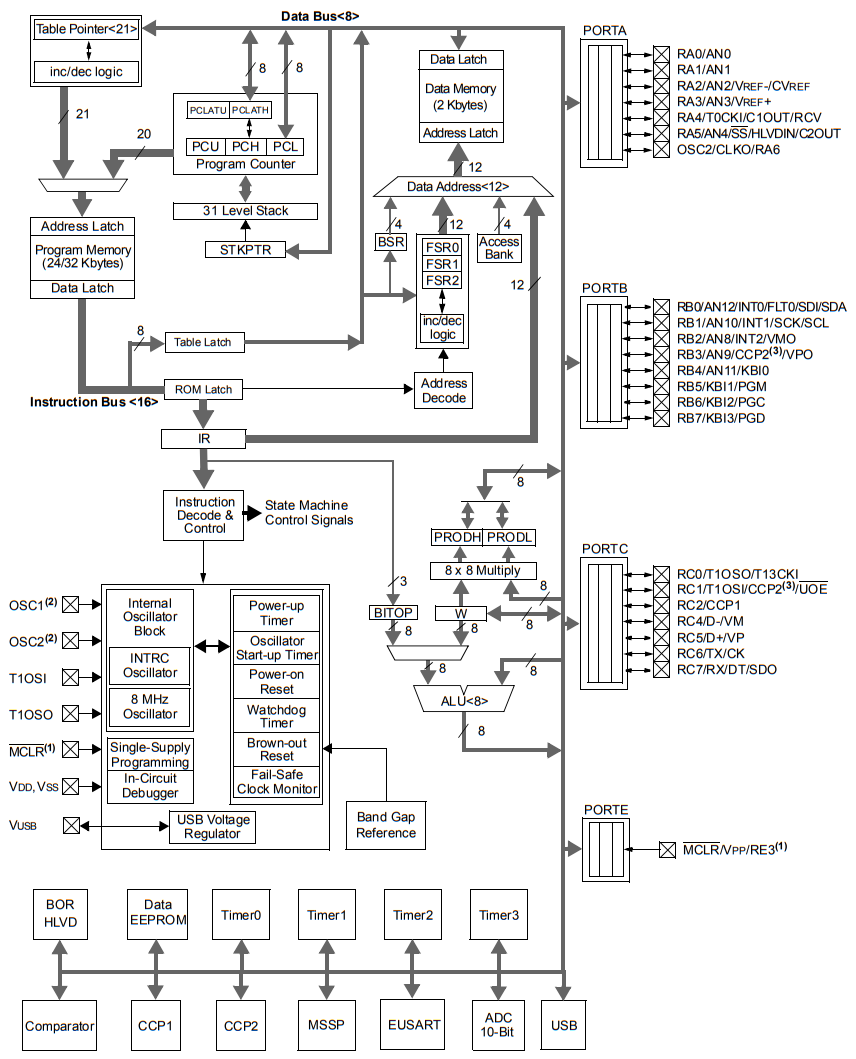

PIC18F4550-I/PT Typical application Circuitry

PIC18F4550-I PT

The PIC18F4550-I/PT by Microchip Technology is an 8-bit microcontroller featuring an in-built USB module, making it a suitable choice for applications necessitating USB connectivity for data transfer and control.

The key features of the PIC18F4550-I/PT include:

1. It comes with 32K Bytes of Flash program memory and 2K Bytes of RAM.

2. 13 Channel, 10-bit Analog-to-Digital Converter

3. 2 Enhanced USART modules supporting RS-485, RS-232, and LIN 2.0

4. 2 Capture/Compare/PWM modules and a 10-bit, high-speed PWM

5. Full Speed USB 2.0 (12Mbit/s) device, on-chip USB transceiver

6. It operates on a power supply range of 4.2V to 5.5V

The PIC18F4550-I/PT is apt for numerous applications like digital audio devices, smart sensors, USB interfacing, and various embedded applications.

For instance, consider its usage in creating a USB-based temperature data logger:

1. Power Connections: Attach the power supply to VDD (Pins 11, 32) and ground to VSS (Pins 12, 31). Use decoupling capacitors between these power pins to minimize power supply noise.

2. USB Interface: For USB connectivity, the D+ and D- lines of the USB should be connected to the USB D+ (Pin 23) and USB D- (Pin 24) pins of the PIC18F4550-I/PT.

3. Temperature Sensor: A digital temperature sensor like DS18B20 can be interfaced to the PORTB, for instance, RB0 (Pin 33).

4. Status LED: Connect an LED to one of the GPIO pins, such as RD0 (Pin 19) through a suitable current-limiting resistor.

5. Clock Source: Connect an external crystal oscillator between OSC1 (Pin 13) and OSC2 (Pin 14) pins.

When designing with the PIC18F4550-I/PT, several key points should be kept in mind:

1. Decoupling Capacitors: Capacitors are used to decouple the power supply to reduce noise.

2. ESD Protection: Make sure the I/O lines are well-protected against electrostatic discharges.

3. Data Lines Protection: Given the USB connectivity, it's critical to protect the data lines from any potential damage.

4. USB Termination and Pull-up Resistors: USB design guidelines regarding termination resistors and pull-up resistors on data lines should be followed.

5. Firmware Development: Firmware for USB communication needs to be developed as per the USB specifications.

Remember to refer to the PIC18F4550-I/PT datasheet for an exhaustive understanding of its specifications and abilities.
