Name: PIC18F26K20-I/ML
Brand: Microchip Technology
SKU: PIC18F26K20-I/ML
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology PIC18F26K20-I/ML

Part No.:: PIC18F26K20-I/ML

Manufacturer:: Microchip Technology

Package:: 28-VQFN Exposed Pad

Datasheet:: PIC18F26K20-I/ML.pdf

Description:: IC MCU 8BIT 64KB FLASH 28QFN

In Stock:: 3967

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC18F26K20-I/ML Specifications

Package/Case:
28-VQFN Exposed Pad
Packaging:
Tube
Series:
PIC® XLP™ 18K
RoHS:
RoHS
Speed:
64MHz
RAM Size:
3.8K x 8
Core Size:
8-Bit
EEPROM Size:
1K x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, HLVD, POR, PWM, WDT
Connectivity:
I²C, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
24
Core Processor:
PIC
Data Converters:
A/D 11x10b
Oscillator Type:
Internal
Program Memory Size:
64KB (32K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC18F26K20-I/ML this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC18F26K20-I/ML price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC18F26K20-I/ML to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC18F26K20-I/ML information

Views：

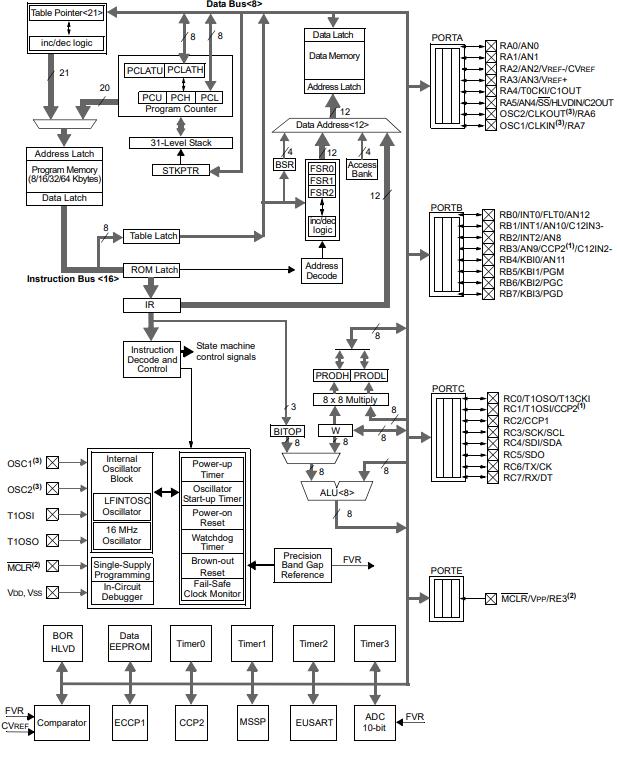

PIC18F26K20-I/ML Typical application Circuitry Schematics

The PIC18F26K20-I/ML is a high-performance microcontroller from Microchip's PIC18 K20 family, designed for efficient and reliable embedded control applications. Here are some regarding the primary characteristics and information pertaining to the microcontroller PIC18F26K20-I/ML:

1. CPU and Memory: The PIC18F26K20-I/ML uses an Enhanced RISC CPU architecture optimized for C compiler efficiency. It features 64 KB of self-programmable flash program memory, 3.8 KB of SRAM data memory, and 1 KB of EEPROM data memory, providing ample space for storing programs and data.

2. Peripherals: This microcontroller integrates a number of peripherals such as up to 28 I/O pins, 10-bit Analog-to-Digital Converter (ADC) with up to 14 channels, two Enhanced Capture/Compare/PWM (CCP) modules, and a Master Synchronous Serial Port (MSSP) supporting SPI and I2C communications.

3. Power Management: The PIC18F26K20-I/ML operates over a wide voltage range (1.8V to 5.5V), making it suitable for a variety of applications. It offers several power-saving modes like sleep, idle, and standby, useful in power-critical applications.

4. Clocking Options: This device has an internal oscillator supporting eight user-selectable frequencies ranging from 31kHz to 8MHz, eliminating the need for an external clock source.

5. Security Features: In along with its own RC frequency, the processor itself has security measures such a power-on restart (POR), power-up watchdog (PWRT), oscillation initialization timer (OST), and monitoring timer (WDT). It also provides Programmable Brown-Out Reset (FOR) and Stack Overflow Reset (STUFF/STOVE).

6. Package: The "I/ML" in the PIC18F26K20-I/ML signifies the Industrial temperature range and QFN package type.

7. Applications: Given its comprehensive set of features, the PIC18F26K20-I/ML microcontroller is well-suited for a broad range of applications, including consumer electronics, industrial automation, automotive systems, and home appliances.

For a great deal of precise and complete information on the features, capabilities, and advised operating conditions of the device, always consult to the manufacturer's data sheet.
