Name: PIC18F25K80-I/SS
Brand: Microchip Technology
SKU: PIC18F25K80-I/SS
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology PIC18F25K80-I/SS

Part No.:: PIC18F25K80-I/SS

Manufacturer:: Microchip Technology

Package:: 28-SSOP (0.209", 5.30mm Width)

Datasheet:: PIC18F25K80-I/SS.pdf

Description:: IC MCU 8BIT 32KB FLASH 28SSOP

In Stock:: 2178

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC18F25K80-I/SS Specifications

Package/Case:
28-SSOP (0.209", 5.30mm Width)
Packaging:
Tube
Series:
PIC® XLP™ 18K
RoHS:
RoHS
Speed:
64MHz
RAM Size:
3.6K x 8
Core Size:
8-Bit
EEPROM Size:
1K x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, LVD, POR, PWM, WDT
Connectivity:
ECANbus, I²C, LINbus, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
24
Core Processor:
PIC
Data Converters:
A/D 8x12b
Oscillator Type:
Internal
Program Memory Size:
32KB (16K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC18F25K80-I/SS this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC18F25K80-I/SS price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC18F25K80-I/SS to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC18F25K80-I/SS information

Views：

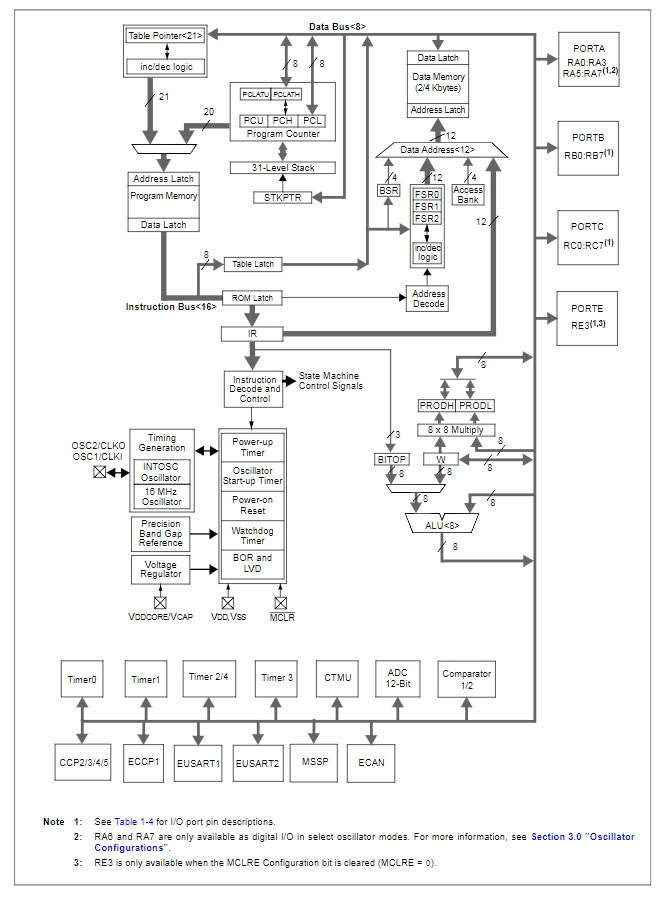

PIC18F25K80-I/SS Typical application Circuitry

PIC18F25K80-I SS

The PIC18F25K80-I/SS is a versatile microcontroller from Microchip, equipped with enhanced features suitable for low power, high performance, and connectivity applications. It offers efficient power management for battery-powered and power-sensitive applications due to its nanoWatt XLP technology.

Usage Scenarios:

This microcontroller finds its applications in various fields such as automotive (especially in OBD-II applications), industrial control, smart sensors, and battery management systems. Its built-in CAN interface makes it particularly suitable for automotive applications where vehicle diagnostic and monitoring are required.

Characteristic Parameters:

- Operating Voltage Range: 1.8V to 5.5V

- Flash Memory: 32KB

- RAM: 2KB

- EEPROM: 1KB

- 12-bit ADC with multiple channels

- Multiple communication interfaces including SPI, I2C, EUSART, and CAN

- Enhanced Mid-range Core with 48 MHz Maximum Frequency

OBD-II Reader Circuit Implementation:

Power Connections:

The power supply should be clean and regulated. Connect the VDD (pin 20) to a +5V power supply. The VSS (pin 8) should be connected to the ground. It is important to use a 0.1 UF decoupling capacitor close to the power supply pins to minimize voltage spikes.

Crystal Oscillator Setup:

A crystal oscillator is connected to OSC1 (pin 19) and OSC2 (pin 18). For instance, a 10 MHz crystal with two 22 pF capacitors to ground will stabilize the oscillator circuit.

CAN Interface:

Connect pin 14 (CANTX) to the input of the CAN transceiver and pin 15 (CANRX) to the output of the CAN transceiver. Ensure that the CAN bus has proper termination resistors (typically 120 ohms) at each end of the bus network.

ICSP Connection for Programming:

The PIC18F25K80-I/SS is programmed via ICSP (In-Circuit Serial Programming). The relevant pins are:

- MCLR (pin 1) which also serves as VPP during programming.

- PGC (pin 9) for the programming clock.

- PGD (pin 10) for the programming data.

These connections should be made accessible for the programming interface, such as a PICkit or ICD tool, to enable easy programming and debugging.

Design Considerations When Designing the Circuit：

- Electromagnetic Interference (EMI): For applications in an automotive environment, it's crucial to design the circuit with considerations for EMI suppression, including the use of shielded cables for connections and proper PCB layout techniques.

- Power Regulation: Ensure that the power supply can provide a stable output even with fluctuations in the input voltage, which is common in automotive power supplies.

- Temperature Range: Automotive environments can experience extreme temperatures. Verify that all components, especially the PIC18F25K80-I/SS, are rated for the expected temperature range.

- Fault Protection: Implement protection mechanisms such as transient voltage suppressors (TVS) on input/output lines to guard against voltage spikes.

- CAN Bus Protections: Include fail-safes like a CAN bus transceiver with features to handle errors and disturbances on the CAN network.

Incorporating the PIC18F25K80-I/SS in an OBD-II reader circuit involves meticulous attention to the power supply design, interface protections, and ensuring reliable communication through the CAN network. The circuit must be robust enough to handle the harsh conditions of an automotive environment while providing accurate diagnostics and data communication.
