Microchip Technology PIC18F258-I/SO

Part No.:: PIC18F258-I/SO

Manufacturer:: Microchip Technology

Package:: 28-SOIC (0.295", 7.50mm Width)

Datasheet:: PIC18F258-I/SO.pdf

Description:: IC MCU 8BIT 32KB FLASH 28SOIC

In Stock:: 3023

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC18F258-I/SO Specifications

Package/Case:
28-SOIC (0.295", 7.50mm Width)
Packaging:
Tube
Series:
PIC® 18F
RoHS:
RoHS
Speed:
40MHz
RAM Size:
1.5K x 8
Core Size:
8-Bit
EEPROM Size:
256 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, LVD, POR, PWM, WDT
Connectivity:
CANbus, I²C, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
22
Core Processor:
PIC
Data Converters:
A/D 5x10b
Oscillator Type:
External
Program Memory Size:
32KB (16K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC18F258-I/SO this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC18F258-I/SO price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC18F258-I/SO to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC18F258-I/SO information

Views：

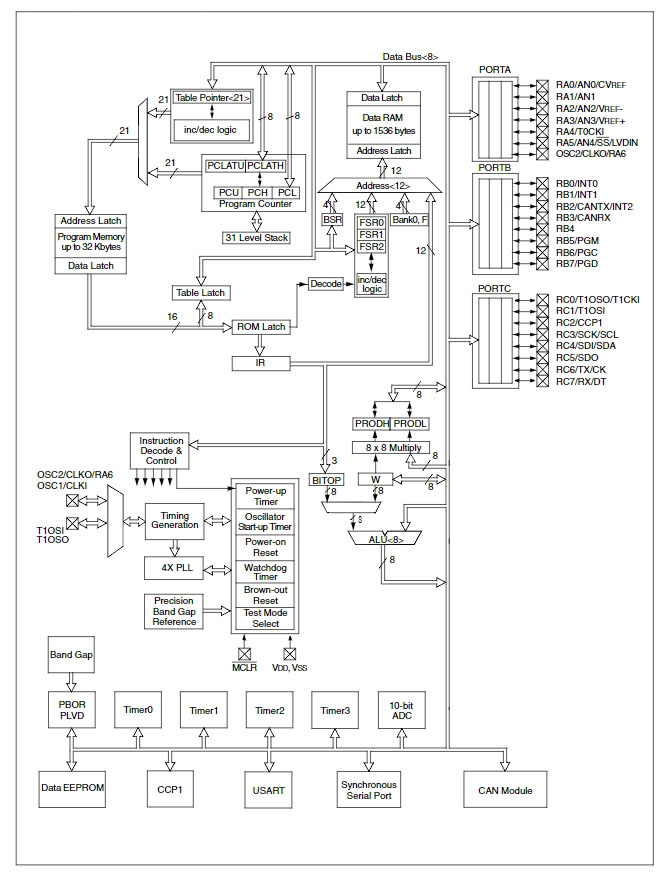

PIC18F258-I/SO Typical application Circuitry

PIC18F258-I SO

The PIC18F258-I/SO is a versatile microcontroller by Microchip Technology featuring an Enhanced FLASH architecture for high-performance microcontroller applications. It is designed with an integrated CAN (Controller Area Network) module for automotive and industrial control systems where reliable communication between various sensors and actuators is crucial.

Usage Scenarios:

The PIC18F258-I/SO is often employed in embedded systems that require serial communication such as CAN, including vehicle ECUs (Electronic Control Units), industrial machine controllers, and robotic control systems.

Parameter Features:

- The PIC18F258-I/SO includes 32KB of FLASH memory and 2KB of SRAM.

- This microcontroller operates within a voltage range of 4.2V to 5.5V.

- The device has a 10-bit ADC with up to 5 channels, which is excellent for sensor readings.

- A maximum operating frequency of up to 40 MHz allows for swift processing and response times.

Application Example - Vehicle ECU Design:

Power Connections:

- VDD (Pin 20) on the PIC18F258-I/SO must be connected to a 5V power source.

- VSS (Pin 19) should be connected to the ground to complete the circuit.

CAN Interface:

- The CANRX (Pin 15) of the PIC18F258-I/SO should be connected to the receiving line of the CAN bus network.

- The CANTX (Pin 16) is wired to the transmitting line of the CAN network.

Oscillator Configuration:

- OSC1/CLKI (Pin 10) and OSC2/CLKO (Pin 9) of the PIC18F258-I/SO are connected to an external crystal oscillator. The capacitors that stabilize the oscillator frequency should be connected to these pins and ground.

In-Circuit Serial Programming (ICSP):

- MCLR/VPP (Pin 1) of the PIC18F258-I/SO serves as the reset pin and is used for the programming voltage input during ICSP.

- PGD (Pin 40) and PGC (Pin 39) are essential for data and clock signals, respectively, during the ICSP process.

- Apply power to the VDD and VSS pins when programming the PIC18F258-I/SO.

Circuit Design Considerations:

Designing with the PIC18F258-I/SO entails a meticulous approach:

- Decoupling Capacitors: To stabilize the power supply to the PIC18F258-I/SO, decoupling capacitors should be placed close to the power pins.

- Oscillator Choice: The external oscillator must have a stability and tolerance suitable for the system's required precision.

- ICSP Accessibility: Ensure that the programming pins for the PIC18F258-I/SO are readily accessible for updates and debugging.

- CAN Bus Protection: It is advisable to incorporate transceivers with protection against voltage spikes in automotive environments.

By adhering to these guidelines, engineers can ensure that the PIC18F258-I/SO functions reliably within an automotive ECU, managing critical tasks and facilitating efficient communication across the CAN network.
