Microchip Technology PIC18F2420-I/SO

Part No.:: PIC18F2420-I/SO

Manufacturer:: Microchip Technology

Package:: 28-SOIC (0.295", 7.50mm Width)

Datasheet:: PIC18F2420-I/SO.pdf

Description:: IC MCU 8BIT 16KB FLASH 28SOIC

In Stock:: 2035

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC18F2420-I/SO Specifications

Package/Case:
28-SOIC (0.295", 7.50mm Width)
Packaging:
Tube
Series:
PIC® 18F
RoHS:
RoHS
Speed:
40MHz
RAM Size:
768 x 8
Core Size:
8-Bit
EEPROM Size:
256 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, HLVD, POR, PWM, WDT
Connectivity:
I²C, SPI, UART/USART
Mounting Type:
Surface Mount
Number of I/O:
25
Core Processor:
PIC
Data Converters:
A/D 10x10b
Oscillator Type:
Internal
Program Memory Size:
16KB (8K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC18F2420-I/SO this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC18F2420-I/SO price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC18F2420-I/SO to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC18F2420-I/SO information

Views：

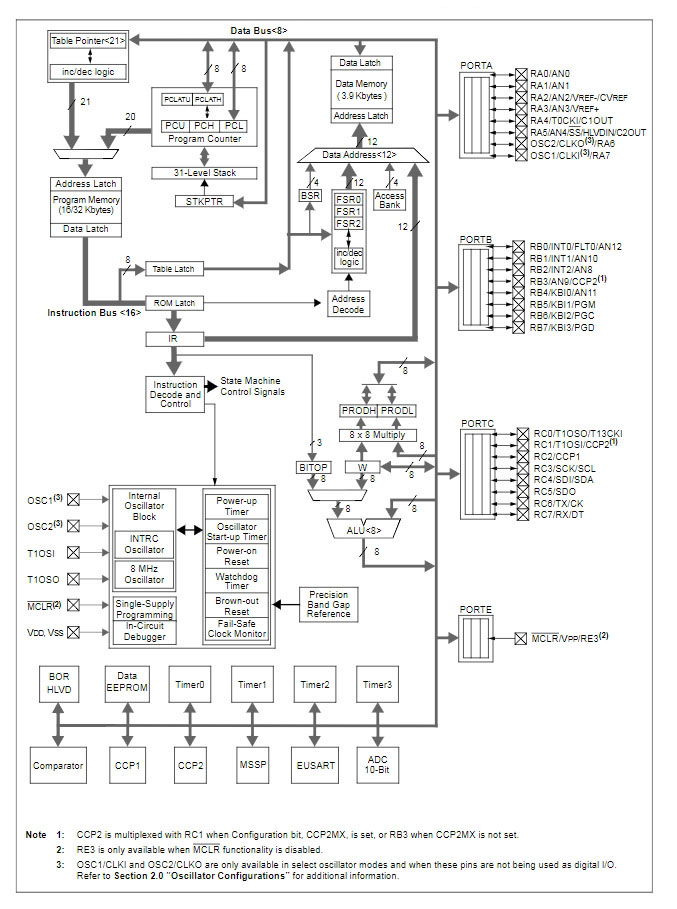

PIC18F2420-I/SO Typical application Circuitry

PIC18F2420-I SO

The PIC18F2420-I/SO is an advanced microcontroller unit (MCU) crafted by Microchip Technology. Being part of the well-known PIC18 series, this microcontroller offers a blend of features suitable for numerous applications.

Potential Applications for PIC18F2420-I/SO:

The PIC18F2420-I/SO finds its uses in various domains:

- Embedded systems

- Automation controllers

- Consumer electronics

- Medical instruments

Characteristics of PIC18F2420-I/SO:

Embedded within the PIC18F2420-I/SO are several notable features:

- 16 KB of flash memory, beneficial for program storage

- 768 bytes of RAM, aiding efficient data manipulation

- Enhanced USART modules for serial communication

- 10-bit ADC for analog data reading

- Housed within a 28-pin SOIC package

Application Illustration: Serial Communication Interface

In this instance, let's set up the PIC18F2420-I/SO for serial communication, commonly used for data transmission between devices.

1. Power Supply Configuration:

- VDD and VSS: Pin 20 (VDD) should be connected to a +5V source, whereas Pin 8 (VSS) must be tied to the ground, ensuring smooth power flow to the MCU.

2. Serial Communication Pins:

- TX and RX: For transmission, link Pin 25 (TX) to the receiving device's RX pin. Conversely, attach Pin 26 (RX) of the PIC18F2420-I/SO to the TX pin of the transmitting unit.

3. Oscillator Setup:

- External Oscillator: An external oscillator can be connected between Pins 9 (OSC1) and 10 (OSC2). As an example, a 10 MHz crystal oscillator is apt, with grounding capacitors (around 22pF) tied to both pins.

4. Programming Interface:

- PGD and PGC Pins: Essential for programming, Pin 27 (PGD) should be linked to the data input of the programmer, while Pin 28 (PGC) is paired with the programmer's clock input.

- MCLR (Master Clear): This reset pin, Pin 1, should be coupled with VDD via a 10KΩ resistor, facilitating a reset when required.

5. Auxiliary LED Output:

- RC0 Pin: As an optional feedback, an LED (configured with a suitable resistor) can be connected to Pin 11 (RC0). This serves as a status indicator or debug light.

Considerations when Designing with PIC18F2420-I/SO:

Crafting a circuit with the PIC18F2420-I/SO demands several considerations:

- Decoupling Measures: To eliminate noise, it's wise to introduce a 0.1µF capacitor adjacent to the VDD pin.

- Firmware Crafting: Engaging with the PIC18F2420-I/SO demands bespoke firmware. Harness Microchip's tools and resources for a streamlined experience.

- Thermal Management: Given its advanced capabilities, ensure efficient heat dissipation for the MCU, especially in high-demand scenarios.

- Signal Integrity: Especially in serial communication, maintaining signal quality is paramount. Ensure short, direct paths and shielded cables if necessary.

Conclusively, the PIC18F2420-I/SO is an embodiment of versatility and power, apt for a spectrum of applications. By being mindful of its characteristics and design intricacies, one can truly harness its potential.
