Name: PIC18F14K50-I/SS
Brand: Microchip Technology
SKU: PIC18F14K50-I/SS
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology PIC18F14K50-I/SS

Part No.:: PIC18F14K50-I/SS

Manufacturer:: Microchip Technology

Package:: 20-SSOP (0.209", 5.30mm Width)

Datasheet:: PIC18F14K50-I/SS.pdf

Description:: IC MCU 8BIT 16KB FLASH 20SSOP

In Stock:: 3735

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC18F14K50-I/SS Specifications

Package/Case:
20-SSOP (0.209", 5.30mm Width)
Packaging:
Tube
Series:
PIC® XLP™ 18K
RoHS:
RoHS
Speed:
48MHz
RAM Size:
768 x 8
Core Size:
8-Bit
EEPROM Size:
256 x 8
Part Status:
Active
Peripherals:
Brown-out Detect/Reset, POR, PWM, WDT
Connectivity:
I²C, SPI, UART/USART, USB
Mounting Type:
Surface Mount
Number of I/O:
14
Core Processor:
PIC
Data Converters:
A/D 11x10b
Oscillator Type:
Internal
Program Memory Size:
16KB (8K x 16)
Program Memory Type:
FLASH
Operating Temperature:
-40°C ~ 85°C (TA)

PIC18F14K50-I/SS this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC18F14K50-I/SS price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC18F14K50-I/SS to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC18F14K50-I/SS information

Views：

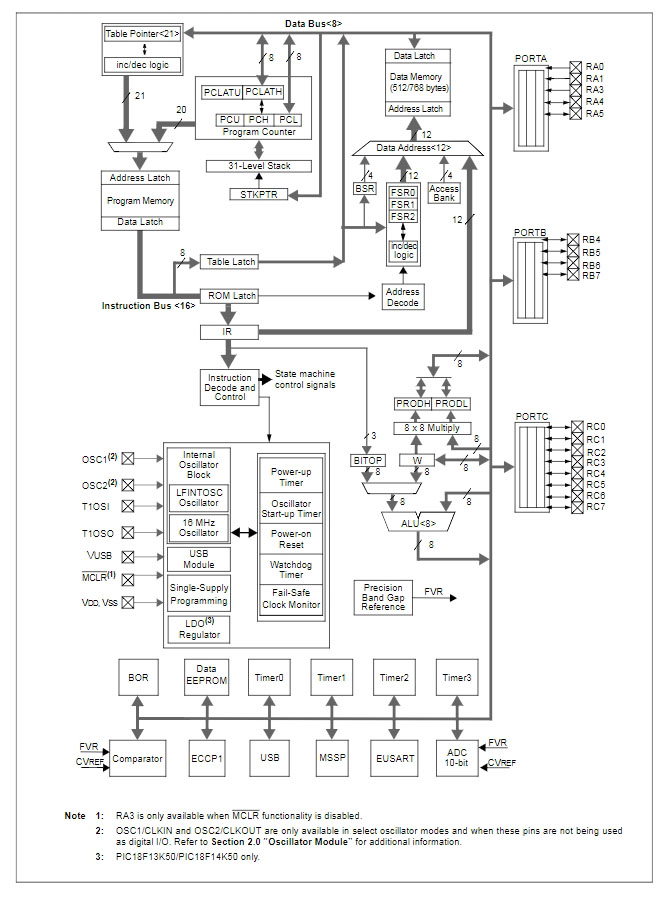

PIC18F14K50-I/SS Typical application Circuitry

PIC18F14K50-I SS

The PIC18F14K50-I/SS is a feature-rich microcontroller chip manufactured by Microchip Technology. Belonging to the PIC18 family, this microcontroller offers an impressive suite of capabilities tailored for various applications.

Applications of PIC18F14K50-I/SS:

Being versatile, the PIC18F14K50-I/SS can be found in a multitude of applications including:

- USB devices (like thumb drives or custom USB peripherals)

- Home automation controls

- Hobbyist projects and educational kits

- Industrial controls and automation

Specifications of PIC18F14K50-I/SS:

The PIC18F14K50-I/SS is packed with features:

- A robust flash memory of 16 KB

- 768 bytes of RAM for efficient processing

- USB V2.0 compatibility

- Integrated analog peripherals such as ADC

- Packaged in a compact 20-pin SSOP

Application Scenario: Building a USB Device

Let's delve into how to interface the PIC18F14K50-I/SS for a USB device application.

1. Power Connections:

- VDD and VSS: Connect the VDD pin (Pin 20) to your +3.3V or +5V supply. Connect the VSS pin (Pin 8) to the ground to establish a power ground.

2. USB Data Lines:

- D- and D+: Attach the D- pin (Pin 18) directly to the D- line of your USB socket. Similarly, tie the D+ pin (Pin 19) to the D+ line of the USB socket.

3. Oscillator Setup:

- Crystal Configuration: For stable USB communication, link a 12 MHz crystal oscillator between OSC1 (Pin 17) and OSC2 (Pin 16). Additionally, incorporate capacitors (usually around 22pF) grounding both OSC1 and OSC2.

4. Programming Interface:

- PGD and PGC: These are your programming pins. Link the PGD pin (Pin 9) to the data line of your programmer, and the PGC pin (Pin 10) to the clock line of the programmer.

- MCLR (Reset Input): Pin 1, MCLR, should be hooked to VDD using a 10KΩ pull-up resistor. This pin is pivotal for the chip's reset mechanism.

5. Optional LED Indicator:

- RA0: For a quick visual indicator, tether an LED (through an appropriate resistor) to the RA0 pin (Pin 13). This can be used to indicate device status or other cues.

Design Considerations for PIC18F14K50-I/SS Circuitry:

When crafting circuits with the PIC18F14K50-I/SS, keep in mind:

- Decoupling: Integrate a 0.1µF decoupling capacitor close to the VDD pin. This ensures noise suppression and stable operation.

- USB Compliance: Monitor the trace impedance in your PCB design to stay compliant with USB standards.

- Firmware Development: The heart of your PIC18F14K50-I/SS project lies in its firmware. Employ Microchip's suite of tools and libraries for streamlined development.

- USB Power Constraints: USB ports have current limitations. Ensure your design respects these boundaries to prevent over-drawing and potential damage.

In a nutshell, the PIC18F14K50-I/SS stands out as a versatile chip, ideal for a variety of applications, especially USB-centric projects. Proper design strategies and awareness of its specifications ensure impeccable device performance.
