What is the Additional Feature ?

Name: PIC16F84A-04/P
Brand: Microchip Technology
SKU: PIC16F84A-04/P
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Any Feature, including a modified Existing Feature, that is not an Existing Feature.

Cart ( )

lmages are for reference only See Product Specifications

Microchip Technology PIC16F84A-04/P

Part No.:: PIC16F84A-04/P

Manufacturer:: Microchip Technology

Package:: 18-DIP (0.300", 7.62mm)

Datasheet:: PIC16F84A-04/P.pdf

Description:: IC MCU 8BIT 1.75KB FLASH 18DIP

In Stock:: 3475

Quantity:: Add To Cart

For more detailed including pricing and shipping

: Quick response, quick quotation

: Flash shipment, no worries after sales

: Original channel, guarantee of the authentic products

Please send RFQ , we will respond immediately.

Purchase and inquiry

PIC16F84A-04/P Specifications

Package/Case:
18-DIP (0.300", 7.62mm)
Packaging:
Tube
Series:
PIC® 16F
RoHS:
RoHS
Speed:
4MHz
RAM Size:
68 x 8
Core Size:
8-Bit
EEPROM Size:
64 x 8
Part Status:
Active
Peripherals:
POR, WDT
Connectivity:
-
Mounting Type:
Through Hole
Number of I/O:
13
Core Processor:
PIC
Data Converters:
-
Oscillator Type:
External
Program Memory Size:
1.75KB (1K x 14)
Program Memory Type:
FLASH
Operating Temperature:
0°C ~ 70°C (TA)

PIC16F84A-04/P this integrated circuit is available in factory sealed anti static packs. at icwhale.com. Please read product page below detail information. including PIC16F84A-04/P price, data-sheet, in-stock availability, technical difficulties. Also. Quickly Enter the access of compare listing to find out replaceable electronic parts. If you want to retrieve comprehensive data for PIC16F84A-04/P to optimize the supply chain (including cross references, life-cycle, parametric, counterfeit risk, obsolescence managements forecasts), please contact to our Tech-supports team.

Purchase in icwhale.com

There is no doubt that you may place an order without registering to icwhale.com.

We strongly suggest you sign in our shop before purchasing as you can track your order real-time tracking.

Means of Payment in icwhale.com

For your convenience, we support multiple payment methods in USD, including PayPal, Credit Card, wire transfer. and Alipay.

RFQ (Request for Quotations) in icwhale.com

It is recommended to acquire for quotations to get the latest prices and inventories about the parts.

Our sales will reply to your request by email within 24 hours.

Warm reminder

1. You'll receive an order information email in your email inbox. (Please remember to check the spam folder if you didn't hear from us).

2. Since inventories and prices may fluctuate to some extent, the sales manager is going to reconfirm the order and let you know if there are any updates.

Shipping & Handling

Shipping fee starts at $35, but some countries will exceed $35. For example (South Africa, Brazil, India, Pakistan, Israel, etc.)

The basic freight (for package ≤0.5kg or corresponding volume) depends on the time zone and countries.

Shipping Method

Currently, our products are shipped through DHL, FedEx, SF, UPS and China Post.

Order Tracking for International Orders

Once your order has been shipped, the tracking number will be sent to the email address registered to your account. This information can also be viewed when logged into your account in the "my account" page.

PIC16F84A-04/P information

Views：

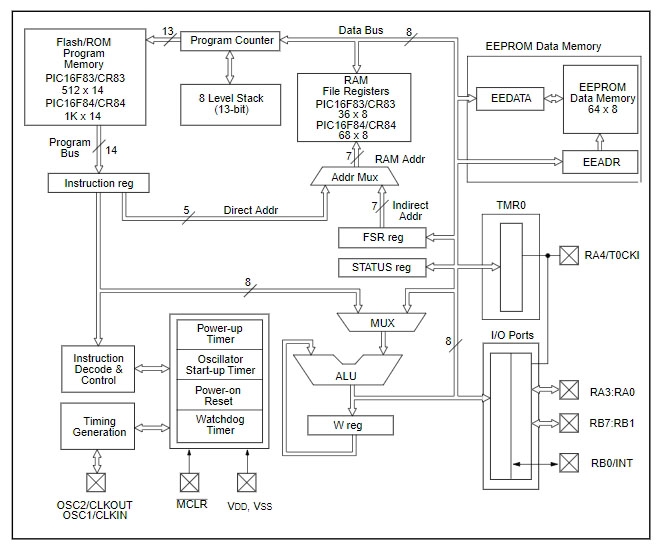

PIC16F84A-04/P Typical application Circuitry

PIC16F84A-04 P

The PIC16F84A-04/P is a renowned microcontroller from Microchip's PIC family. It is an 8-bit microcontroller, frequently employed in a variety of electronic applications due to its versatile features, easy-to-use architecture, and affordability.

Application Scenarios:

The PIC16F84A-04/P can be used in numerous scenarios like home automation, hobbyist projects, industrial automation, and more. Let's examine a basic LED blinking application for the sake of this post.

Key Features of PIC16F84A-04/P:

1. 8-bit microcontroller

2. 1KB of flash memory.

3. 68 bytes of RAM.

4. 13 I/O pins.

5. Timer and interrupt capabilities.

LED Blinking Application with PIC16F84A-04/P:

Power Connections:

- Connect VDD (pin 14) to a +5V supply.

- Connect VSS (pin 5) to the ground (0V) of the power supply.

LED Connection:

- Connect an LED's anode (longer lead) through a 220-ohm resistor to one of the I/O pins, say RB0 (pin 6).

-Attach the shorter lead, or cathode, of the LED straight to the ground.

Programming Connections:

- MCLR/VPP (pin 4): This is the reset and programming voltage pin. For programming, it's connected to the VPP of the programmer, and during normal operation, it's typically connected to VDD through a 10kΩ resistor to keep the microcontroller out of reset mode.

- ICSPDAT (pin 13): This is the data line for In-Circuit Serial Programming (ICSP). Attach it to the programmer's data pin.

- ICSPCLK (pin 12): This is the clock line for ICSP. Attach it to the programmer's clock pin.

Oscillator Connection:

- Connect a 4MHz crystal oscillator between pins 15 (OSC1/CLKIN) and 16 (OSC2/CLKOUT).

- To stabilize the oscillator frequency, connect two 22pF capacitors from each of these pins toground.

Design Considerations:

1. Decoupling Capacitors: Always place a 100nF ceramic capacitor between VDD and VSS close to the PIC16F84A-04/P for noise reduction.

2. Programming: Ensure that the program written for the LED blinking uses the correct I/O pin (in our case, RB0) and proper delay functions.

3. Protection: It's always a good idea to protect the I/O pins from excessive current, which could damage the microcontroller.

In conclusion, the PIC16F84A-04/P is a versatile microcontroller suitable for numerous applications. When designing circuits with it, always ensure the connections are secure, and programming is accurate to achieve the desired results.
